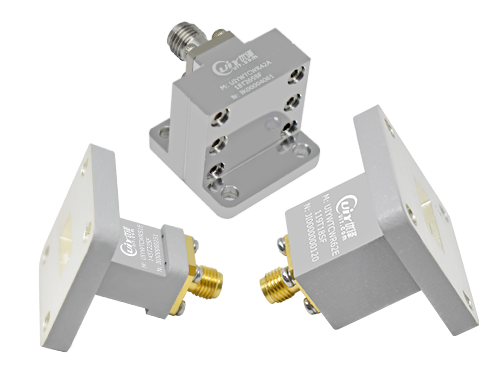

Right Angle 90° Waveguide to Coaxial Adapter

Model No. Freq.Range
(GHz)
IL.
(dB)
VSWR Connector
Type
(Waveguide)
Connector
Type
(Coaxial)
CW Power
(W)
Peak
Power
(KW)
Temp.
(°C)
UIYWTCWR2300A 0.32~0.49 0.12 1.25 WR2300(BJ3) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR2100A 0.35~0.53 0.12 1.25 WR2100(BJ4) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR1800A 0.41~0.62 0.2 1.25 WR1800(BJ5) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR1500A 0.49~0.75 0.12 1.25 WR1500(BJ6) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR1150A 0.64~0.96 0.12 1.25 WR1150(BJ8) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR975A 0.75~1.12 0.12 1.25 WR975(BJ9) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR770A 0.96~1.45 0.12 1.2 WR770(BJ12) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR650A 1.13~1.73 0.2 1.2 WR650(BJ14) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR510A 1.45~2.20 0.2 1.2 WR510(BJ18) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR430A 1.72~2.61 0.2 1.2 WR430(BJ22) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR340A 2.17~3.30 0.2 1.15 WR340(BJ26) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR284A 2.6~3.95 0.15 1.15 WR284(BJ32) N, SMA, 7/16 300 3 -55~+85
UIYWTCWR229A 3.22~4.90 0.15 1.15 WR229(BJ40) N, SMA 100 3 -55~+85
UIYWTCWR187A 3.94~5.99 0.15 1.15 WR187(BJ48) N, SMA 100 3 -55~+85
UIYWTCWR159A 4.64~7.05 0.2 1.15 WR159(BJ58) N, SMA 100 3 -55~+85
UIYWTCWR137A 5.38~8.17 0.15 1.15 WR137(BJ70) N, SMA 100 3 -55~+85
UIYWTCWR112A 6.57~9.99 0.2 1.15 WR112(BJ84) N, SMA 50 3 -55~+85
UIYWTCWR90A 8.2~12.5 0.2 1.15 WR90(BJ100) N, SMA 50 1 -55~+85
UIYWTCWR75A 9.84~15.0 0.2 1.15 WR75(BJ120) SMA 50 1 -55~+85
UIYWTCWR62A 11.9~18.0 0.2 1.15 WR62(BJ140) SMA 50 1 -55~+85
UIYWTCWR51A 14.5~22.0 0.25 1.2 WR51(BJ180) SMA, 2.92mm 50 1 -55~+85
UIYWTCWR42A 18.0~26.5 0.25 1.2 WR42(BJ220) SMA, 2.92mm 50 1 -55~+85
UIYWTCWR34A 21.7~33.0 0.25 1.2 WR34(BJ260) 2.92mm 3 0.1 -55~+85
UIYWTCWR28A 26.5~40.0 0.25 1.25 WR28(BJ320) 2.92mm, 2.4mm 3 0.1 -55~+85
UIYWTCWR22A 33.0~50.0 0.4 1.25 WR22(BJ400) 2.4mm 3 0.1 -55~+85
UIYWTCWR19A 40.0~60.0 1.0 1.8 WR19(BJ500) 1.85mm 3 0.1 -55~+85
UIYWTCWR15A 49.8~75.5 1.0 2.0 WR15(BJ620) 1.85mm 3 0.1 -55~+85
UIYWTCWR12A 60.0~90.0 1.2 1.6 WR12(BJ740) 1.0mm 3 0.1 -55~+85
UIYWTCWR10A 75.0~110.0 1.2 1.6 WR10(BJ900) 1.0mm 3 0.1 -55~+85

End Launch 180° Waveguide to Coaxial Adapter

Model No. Freq.Range
(GHz)
IL.
(dB)
VSWR Connector
Type
(Waveguide)
Connector
Type
(Coaxial)
CW Power
(W)
Peak
Power
(KW)
Temp.
(°C)
UIYWTCWR340E 2.17~3.30 0.2 1.25 WR340(BJ26) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR284E 2.6~3.95 0.2 1.25 WR284(BJ32) N, SMA, 7/16 100 3 -55~+85
UIYWTCWR284F 2.6~3.95 0.2 1.25 WR284(BJ32) N, 7/16 300 3 -55~+85
UIYWTCWR187E 3.94~5.99 0.3 1.25 WR187(BJ48) N, SMA 100 3 -55~+85
UIYWTCWR159E 4.64~7.05 0.3 1.25 WR159(BJ58) N, SMA 100 3 -55~+85
UIYWTCWR137E 5.38~8.17 0.3 1.25 WR137(BJ70) N, SMA 100 3 -55~+85
UIYWTCWR112E 6.57~9.99 0.3 1.25 WR112(BJ84) N, SMA 50 3 -55~+85
UIYWTCWR90E 8.2~12.5 0.3 1.25 WR90(BJ100) N, SMA 50 1 -55~+85
UIYWTCWR75E 9.84~15.0 0.3 1.25 WR75(BJ120) SMA 50 1 -55~+85
UIYWTCWR62E 11.9~18.0 0.3 1.25 WR62(BJ140) SMA 50 1 -55~+85
UIYWTCWR51E 14.5~22.0 0.3 1.3 WR51(BJ180) SMA, 2.92mm 50 1 -55~+85
UIYWTCWR42E 18.0~26.5 0.25 1.25 WR42(BJ220) SMA, 2.92mm 50 1 -55~+85
UIYWTCWR34E 21.7~33.0 0.25 1.2 WR34(BJ260) 2.92mm 3 0.1 -55~+85
UIYWTCWR28E 26.5~40.0 0.25 1.25 WR28(BJ320) 2.92mm, 2.4mm 3 0.1 -55~+85
UIYWTCWR22E 33.0~50.0 0.5 1.6 WR22(BJ400) 2.4mm 3 0.1 -55~+85
UIYWTCWR19E 40.0~60.0 1.0 1.8 WR19(BJ500) 1.85mm 3 0.1 -55~+85
UIYWTCWR15E 49.8~67.0 0.6 1.8 WR15(BJ620) 1.85mm 3 0.1 -55~+85
UIYWTCWR15F 50.0~75.0 0.6 1.5 WR15(BJ620) 1.0mm 3 0.1 -55~+85
UIYWTCWR12E 60.0~90.0 0.5 1.5 WR12(BJ740) 1.0mm 3 0.1 -55~+85
UIYWTCWR10E 73.8~112.0 1.5 1.8 WR10(BJ900) 1.0mm 3 0.1 -55~+85
