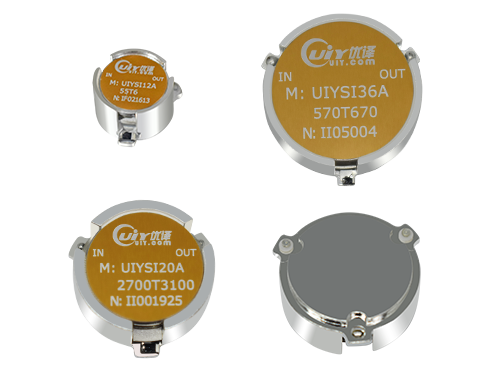

Surface Mount Isolator

Model No. Freq.Range
(GHz)
BW
Max.
IL.
(dB)
Isolation
(dB)
VSWR Forward
Power(W)
Reverse
Power(W)
Connector
Type
Temp.
(°C)
Dimension
LxWxH(mm)
UIYSI36A 0.29~1.875 40% 0.3 23 1.2 200 10 SMT -30~+70 Φ36×11
UIYSI25A 0.36~3.5 10% 0.3 23 1.2 100 10 SMT -40~+85 Φ25.4×9
UIYSI20A 0.45~4.2 16% 0.3 23 1.2 60 10 SMT -40~+85 Φ20.4×8.6
UIYSI15A 0.9~4.2 15% 0.3 23 1.2 60 5 SMT -40~+85 Φ15.5×7
UIYSI12A 1.2~10.0 20% 0.3 23 1.2 30 5 SMT -40~+90 Φ12.7×8
UIYSI10A 2.4~6.0 20% 0.3 21 1.2 30 10 SMT -40~+85 Φ9.8×6.35
