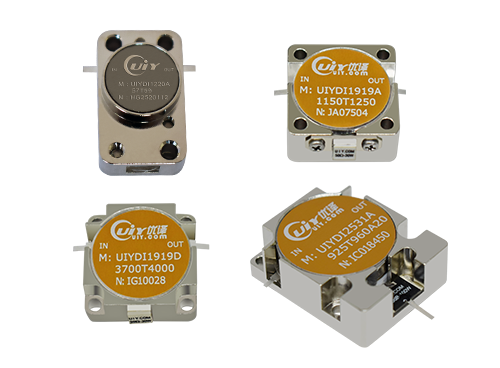

Drop in Isolator

Frequency range 10MHz to 40GHz,up to 2000W power. Military, space and commercial applications. Low insertion loss, high isolation, high power handling. Custom design available upon request.
Drop in Isolator

Low frequency from 10MHz to 1875MHz, FM, VHF, UHF, etc

Model No. Freq.Range
(MHz)		 BW
Max.		 IL
(dB)		 Isolation
(dB)		 VSWR Forward
Power(W)		 Reverse
Power(W)		 Connector
Type		 Temp.
(°C)		 Dimension
LxWxH(mm)
UIYDI8080A 10~55 20% 1.2 20 1.25 50 50 TAB +10~+60 80×80×28
UIYDI6060A 45~270 40% 0.5 25 1.15 200 50 TAB -20~+65 60×60×28
UIYDI6075A 45~270 40% 0.5 25 1.15 200 100 TAB -20~+65 60×75×28
UIYDI100166A 70~130 20% 0.8 17 1.4 500 250 TAB 0~+70 100×166×40
UIYDI5656A 140~300 15% 0.4 23 1.2 300 30 TAB -30~+70 56×56×15
UIYDI5663A 140~300 15% 0.4 23 1.2 300 100 TAB -30~+70 56×63.5×15
UIYDI3538A 200~1875 40% 0.3 30 1.15 300 30 TAB -40~+85 35×38×11
UIYDI3546A 200~1875 40% 0.3 30 1.15 300 200 TAB -40~+85 35×46×11
UIYBDI6060F 225~400 Full 0.8 18 1.3 160 50 TAB 0~60 60×60×28
1.0 16 1.4 -40~+85
UIYBDI6075F 225~400 Full 0.8 18 1.3 160 100 TAB 0~60 60×75×28
1.0 16 1.4 -40~+85
UIYDI4242A 250~1500 35% 0.25 25 1.15 300 30 TAB -30~+70 42×42×13
UIYDI4249A 250~1500 35% 0.25 25 1.15 300 100 TAB -30~+70 42×49×13
UIYBDI5377B 300~475 Full 0.8 18 1.35 60 60 TAB 25±5 53×77×26
1.0 16 1.4 0~+60
1.2 14 1.6 -40~+85
UIYDI5356A 300~1500 18% 0.3 23 1.2 500 30 TAB -40~+85 53×56×20

360MHz to 40GHz, GSM,CDMA,WCDMA,LTE,L.S.C.X band, etc

Model No. Freq.Range
(GHz)		 BW
Max.		 IL
(dB)		 Isolation
(dB)		 VSWR Forward
Power(W)		 Reverse
Power(W)		 Connector
Type		 Temp.

(°C)

 Dimension
LxWxH(mm)
UIYDI2525A 0.36~3.5 20% 0.3 23 1.15 200 30 TAB -40~+85 25.4×25.4×10.5
UIYDI2531A 0.36~3.5 20% 0.3 23 1.2 200 100 TAB -40~+85 25.4×31.7×10.5
UIYDI2020A 0.45~3.0 20% 0.3 23 1.2 100 20 TAB -40~+85 20×20×8.6
UIYDI2027A 0.45~3.0 20% 0.3 23 1.2 100 100 TAB -40~+85 20×27×8.6
UIYDI3232A 0.7~3.1 20% 0.3 23 1.15 200 30 TAB -40~+85 32×32×11
UIYDI1919A 0.8~4.2 25% 0.3 23 1.2 100 30 TAB -40~+85 19×19×8.6
UIYDI1925A 0.8~4.2 25% 0.3 23 1.2 100 100 TAB -40~+85 19×25.4×8.6
UIYDI1212B 1.2~10.0 20% 0.3 23 1.2 60 20 TAB -40~+85 12.7×12.7×8
UIYDI1919B 4.0~5.1 25% 0.3 23 1.2 60 30 TAB -40~+85 19×19×7.5
UIYDI1220A 4.5~7.0 25% 0.3 23 1.2 30 10 TAB -40~+85 12×20×8
UIYDI815A 5.8~20.0 25% 0.3 23 1.2 30 10 TAB -40~+85 8.9×15×7.8
UIYDI812A 17.7~21.2 Full 0.5 17 1.4 30 5 TAB -40~+70 8.9×12.5×6.5
UIYDI1317A 18.0~26.0 20% 0.8 16 1.4 10 2 TAB 0~+60 13×17×13
UIYBDI1024A 18.0~26.5 Full 1.6 16 1.6 10 2 TAB -30~+70 10×24×9.3
UIYDI1016A 26.0~40.0 10% 1.5 15 1.5 10 2 TAB 0~+60 10×16×13
