Low frequency & Wide band Coaxial Isolator popular model UIYCI6060A recommended.

Coaxial Isolator-UIYCI6060A, This model is often bought by our customers, It not only has low frequency band but also wide frequency range,Multiple frequency bands, Custom design available upon request. Wide application(Military, space and commercial applications.).Customers in need can contact customer service for more product information.

Due to the diversity of spec, we are unable to display all products.
If you have any parameter questions about frequency, power, insertion loss etc, pls feel free to contact us directly.

Tel: +86-755-83748888

Fax: +86-755-25999959

Mail: sales@uiy.com    sales@uiy.com.cn

Coaxial Isolator-UIYCI6060A

Model parameters

Forward Power: 200W

Freq.Range: 45~270MHz

Reverse Power: 50W

IL.: 0.5dB

Connector Type: N,SMA

Isolation: 25dB


VSWR: 1.15

Dimension LxWxH: 60×60×28mm

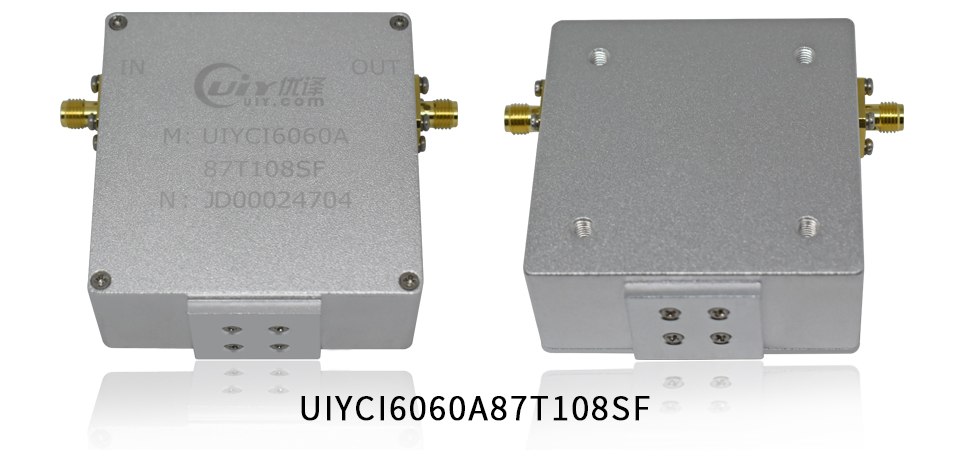

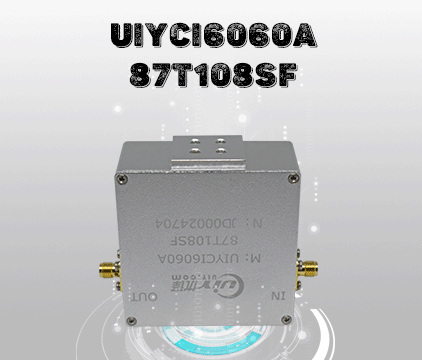

Product Picture

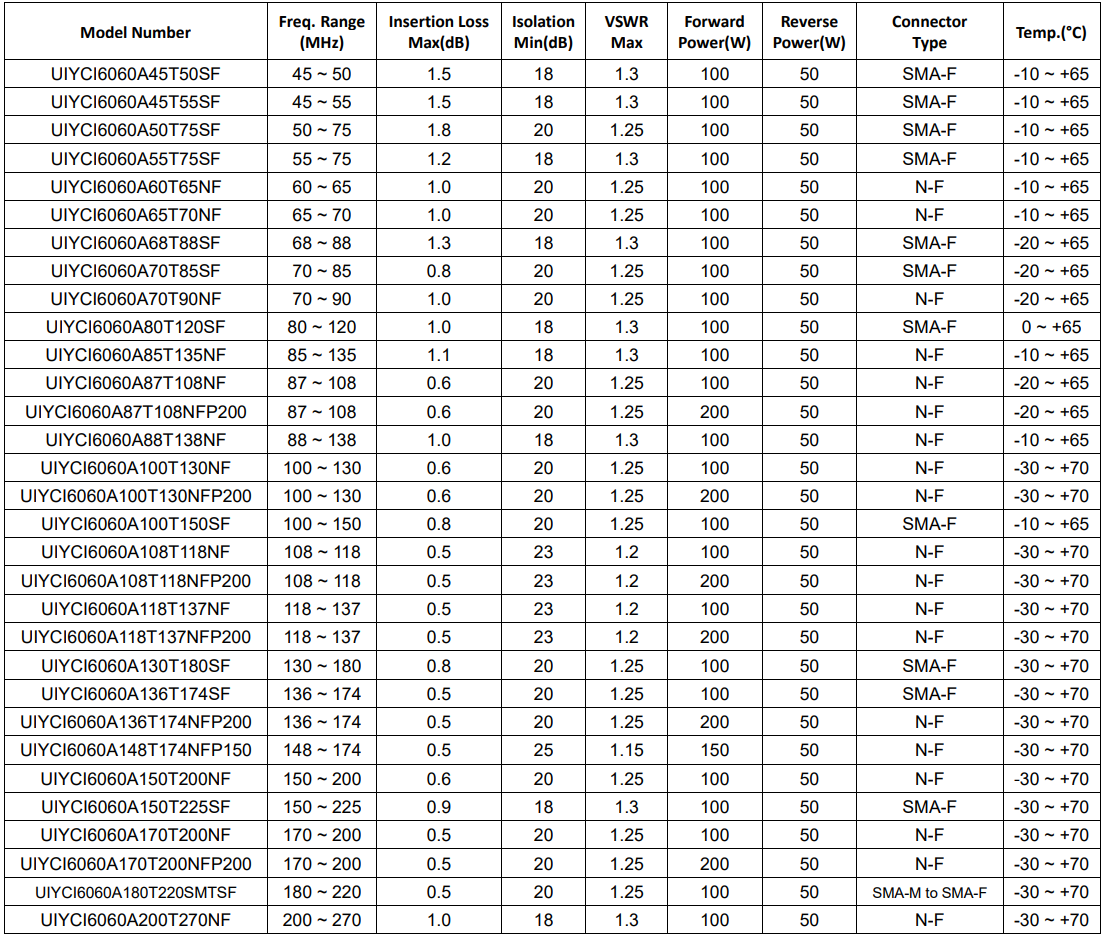

RF Characteristics

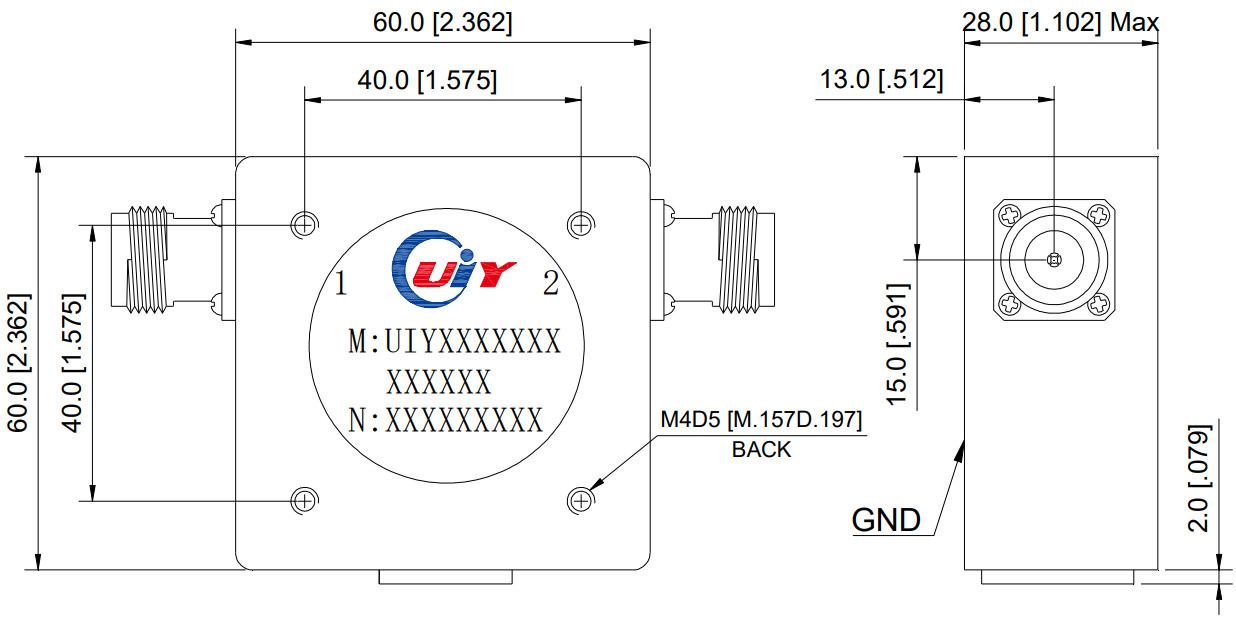

Mechanical Drawing
