Drop in Isolator: But the input and output ports are strip lines, and the connector is installed, which is the coaxial isolator. The strip isolator can generally be soldered directly on the board.

Frequency range 10MHz to 40GHz, up to 2000W power.

Low insertion loss, high isolation, high power handling.

Military, space and commercial applications.

Custom design available upon request.

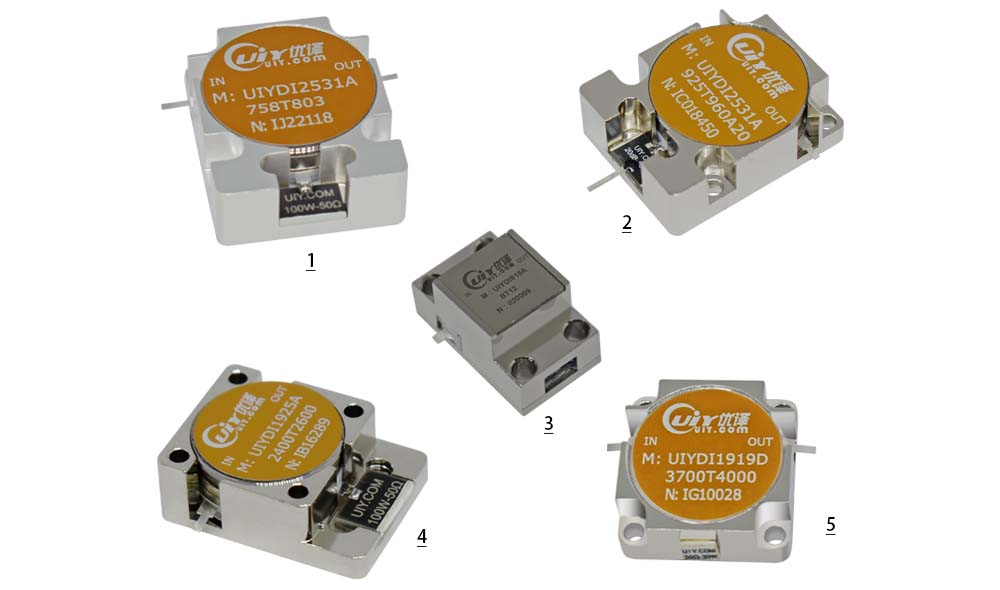

The above is the common physical picture of Drop in Isolator, Where 1, 2, and 4 are band attenuation, The difference between the two is that the band attenuation can withstand larger power.

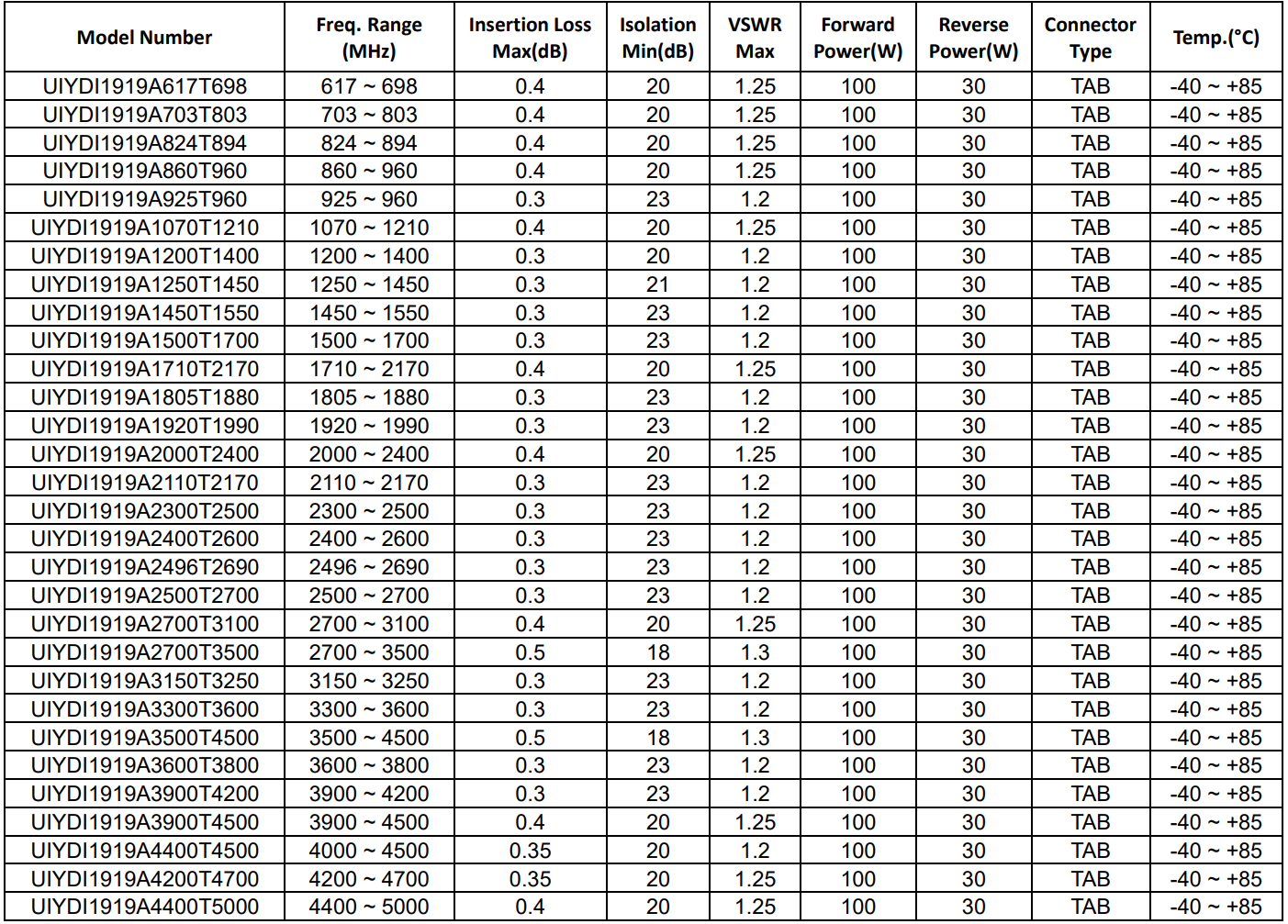

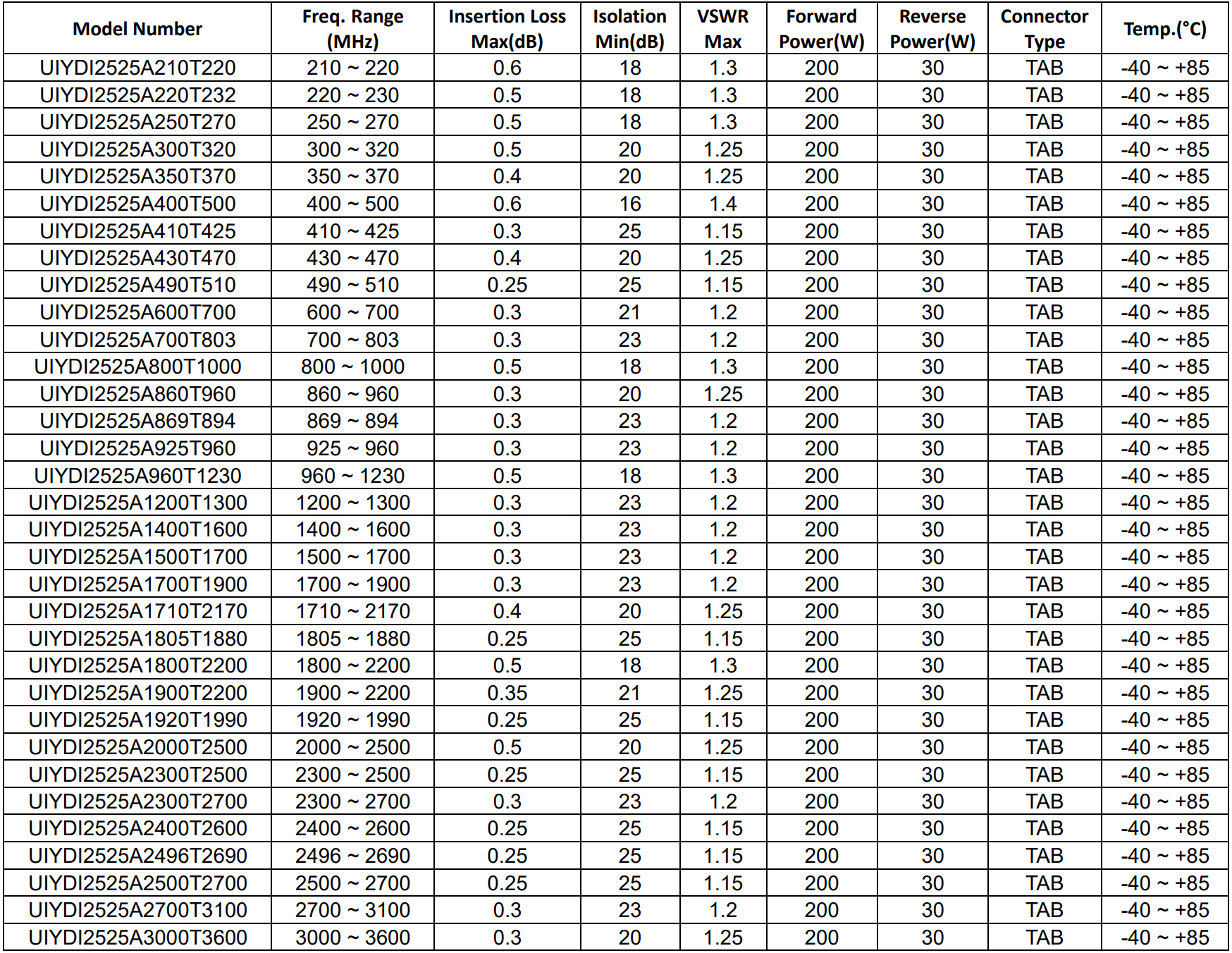

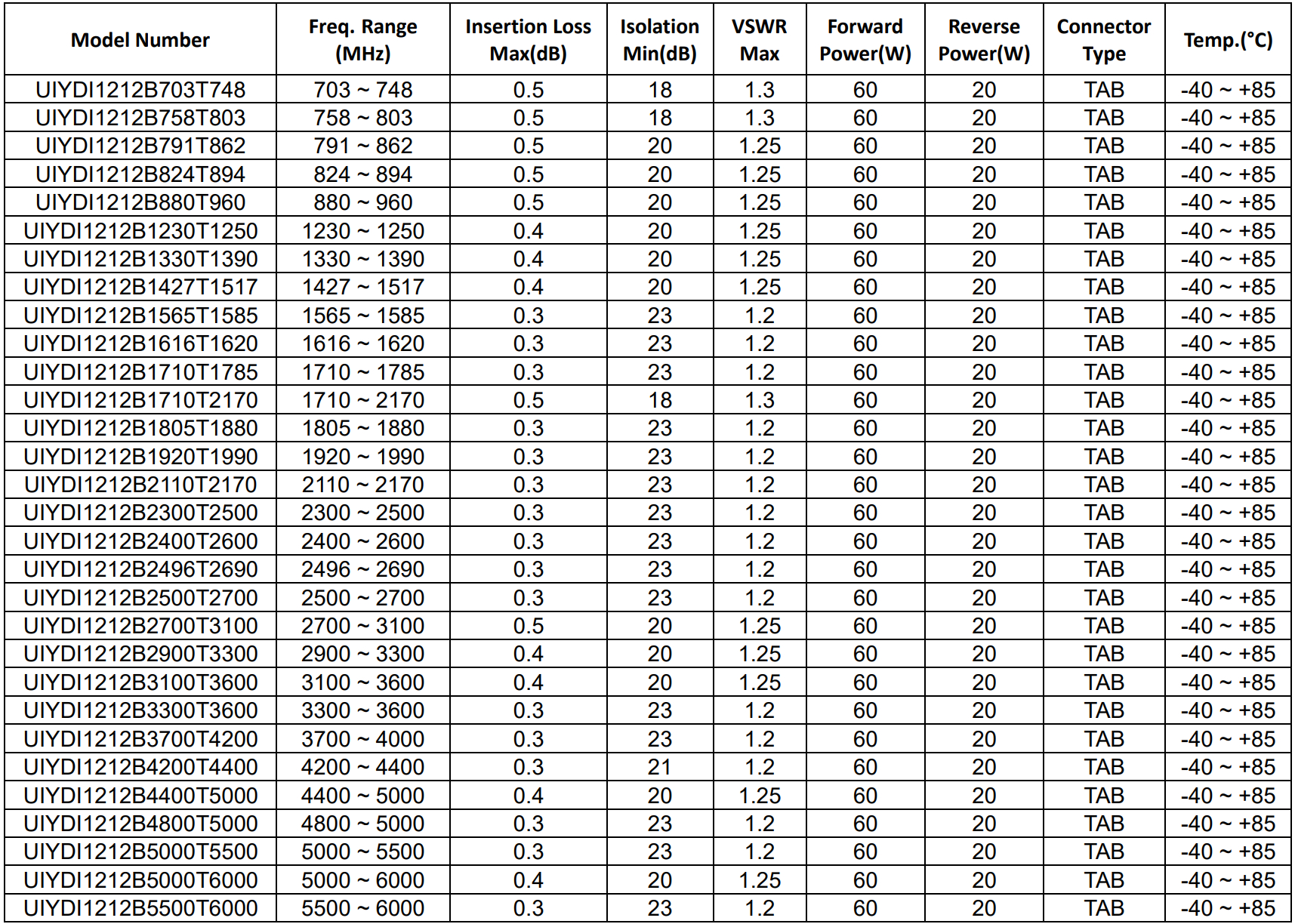

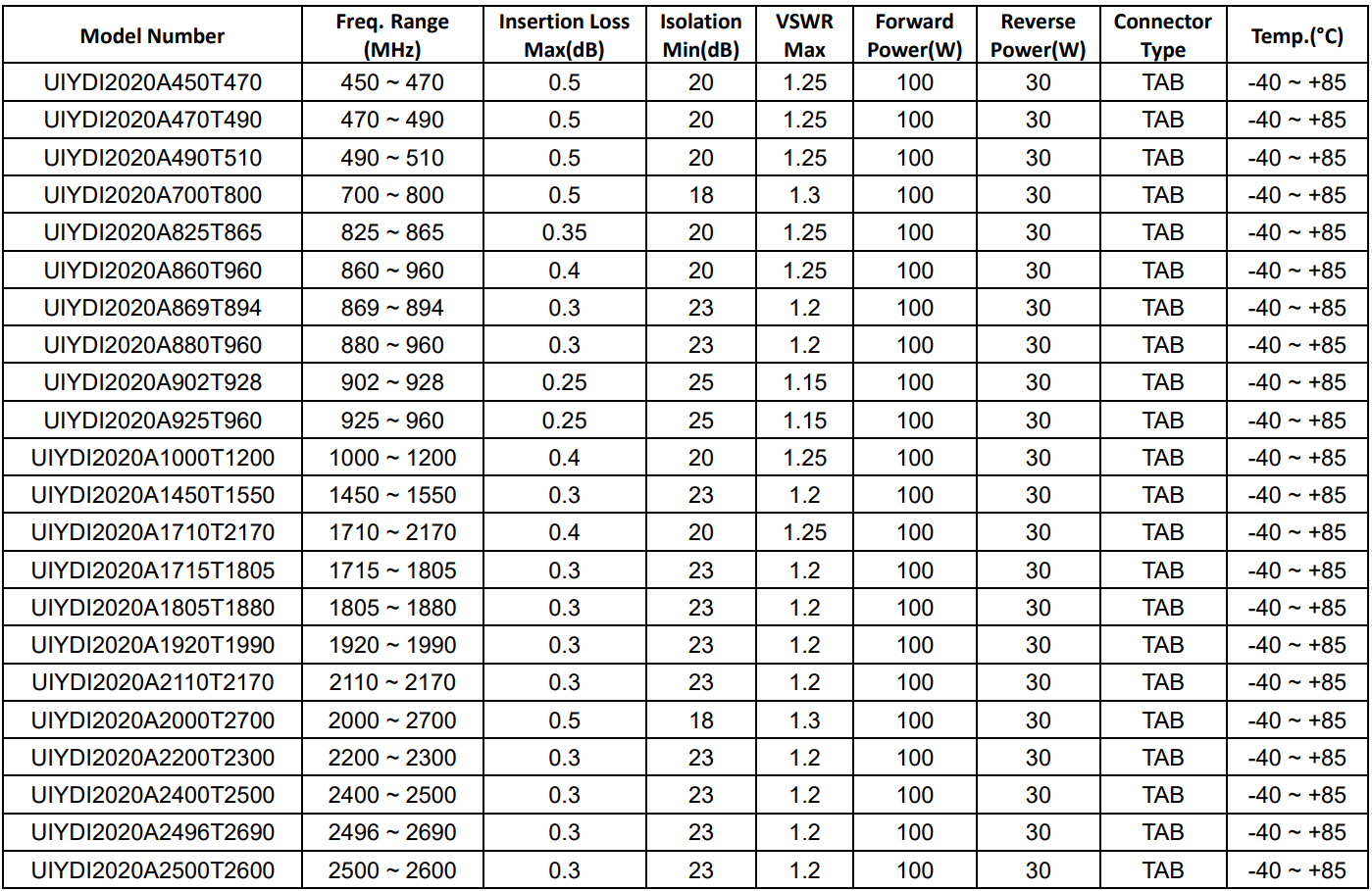

The following is a list of the four parameters of UIY with Drop in Isolator:
