UIY low-frequency high-power Coaxial Circulators, with full bandwidth, peak power up to 5000W

---

UIY offers a full line of Coaxial Circulator. If you do not see exactly what you require on this web site, please contact us directly. We offer designed and built to your specification services as well.

Fax: +86-755-25999959

Mail: sales@uiy.com           sales@uiy.com.cn

---

01

Low frequency, high power

Size: 80×80×18mm, Low frequency range: 60~200MHz.

The model parameters are as follows:

Model: UIYCC8080B
Freq.Range: 60~200MHz	Peak/AVG Power: 3000/500W
IL.: 0.3dB	Connector Type: N
Isolation: 23dB	Temp.: 0~+70°C
VSWR: 1.2	Dimension LxWxH: 80×80×18mm

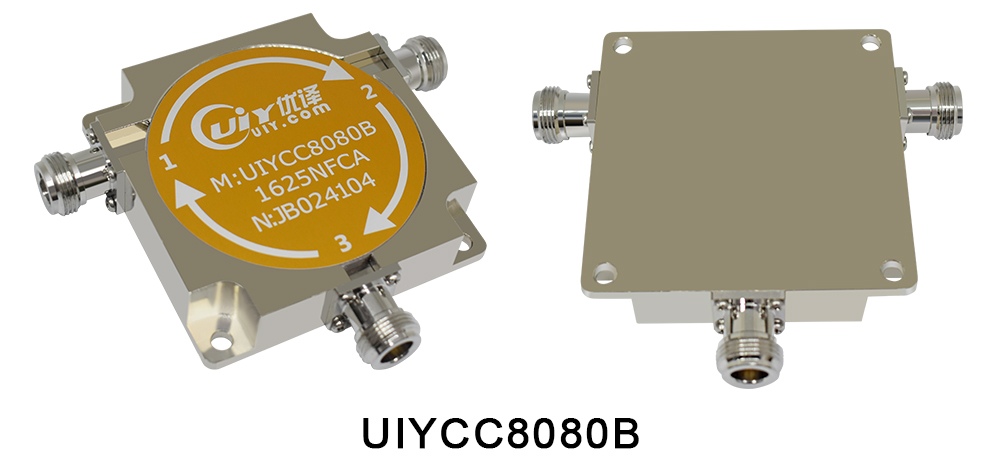

Product Picture

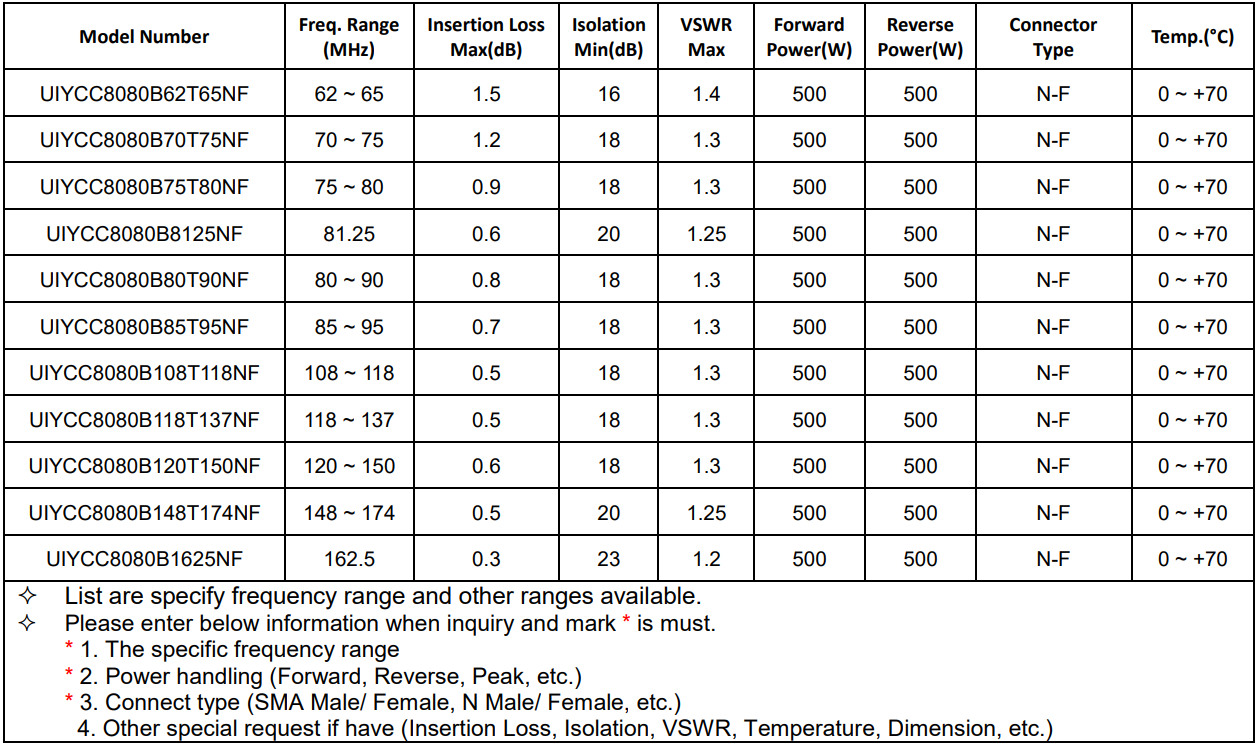

RF Characteristics

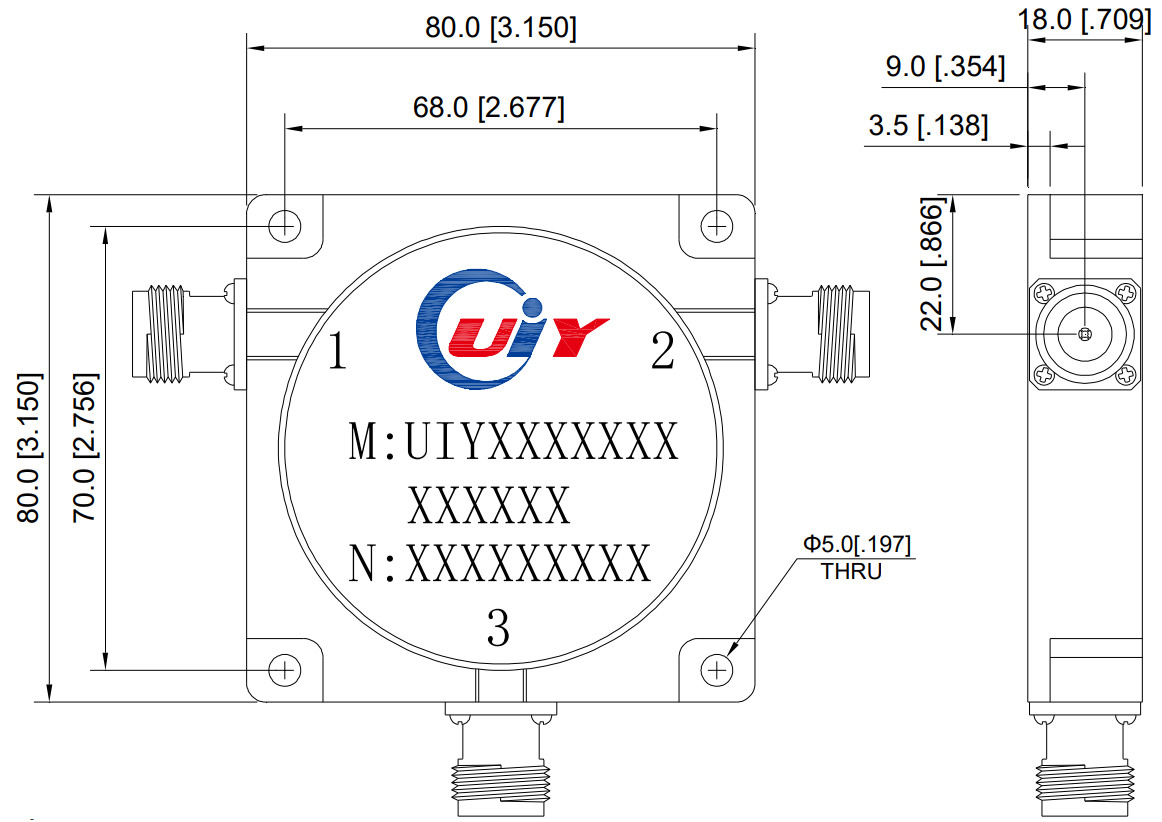

Mechanical Drawing



02

Full bandwidth, higher power

Size: 59.4×72×50mm, Full bandwidth,  High power up to 5000W peak.

The model parameters are as follows:

Model: UIYBCC5972A
Freq.Range: 2000~4000MHz	Peak/AVG Power: 5000/500W
IL.: 0.6dB	Connector Type: N
Isolation: 16dB	Temp.: +10~+60°C
VSWR: 1.4	Dimension LxWxH: 59.4×72×50mm

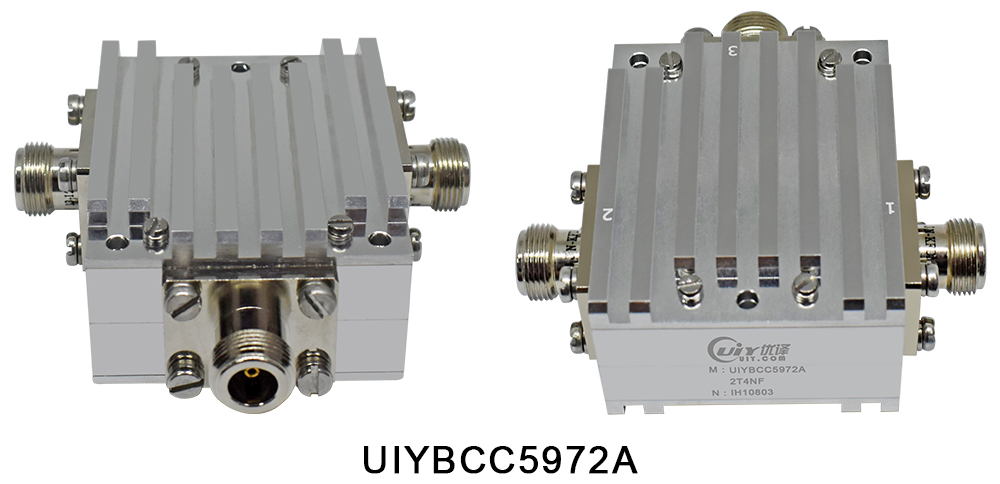

Product Picture

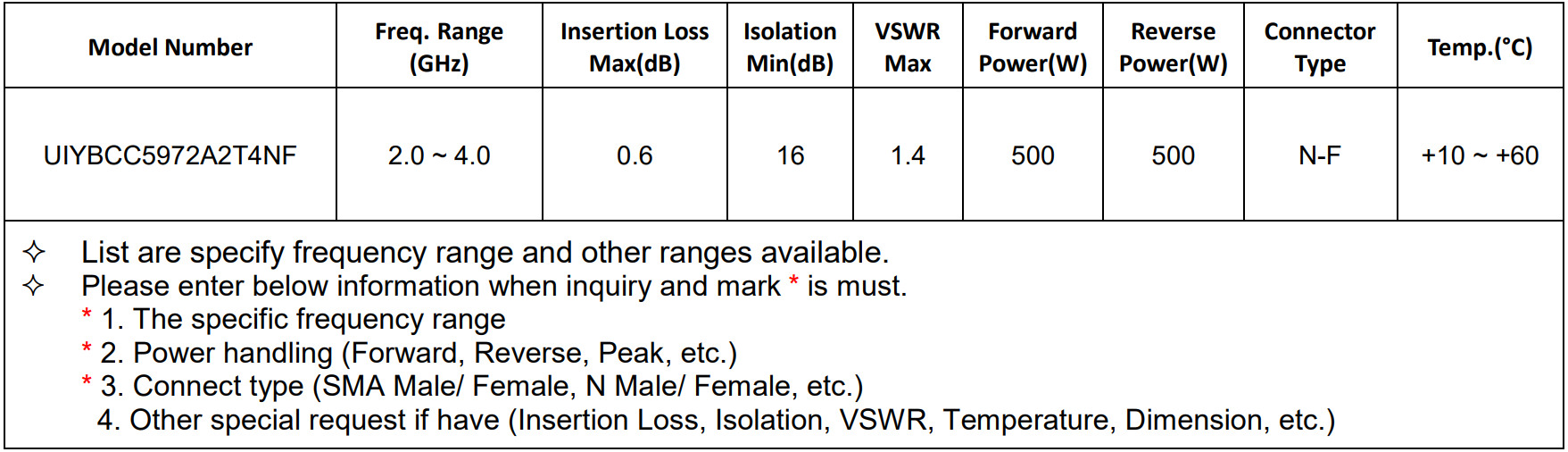

RF Characteristics

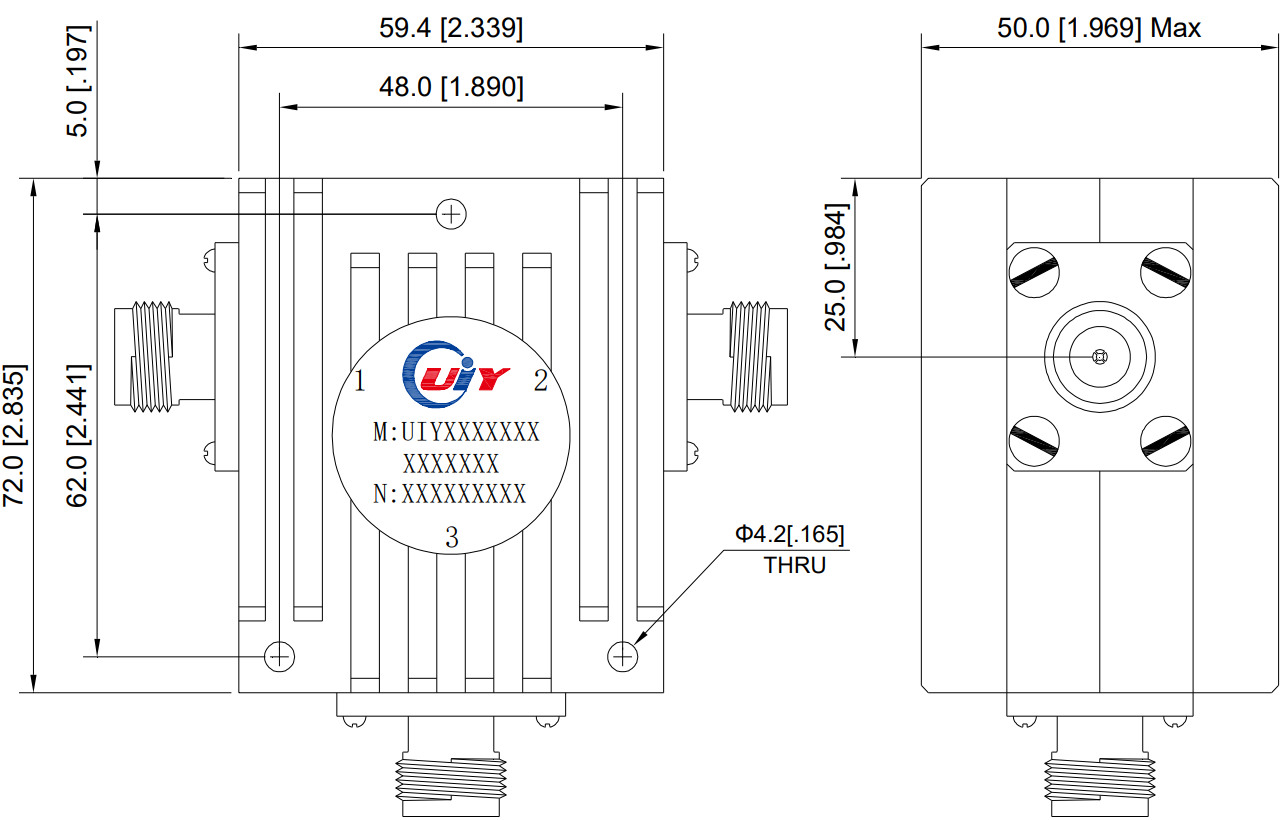

Mechanical Drawing
