UIY 700MHz low frequency RF Isolator and Circulator

Due to the diversity of spec, we are unable to display all products.
If you have any parameter questions about frequency, power, insertion loss etc, pls feel free to contact us directly.

Tel: +86-755-83748888            +86-755-25999990

Fax: +86-755-25999959

Mail: sales@uiy.com                  sales@uiy.com.cn


The 700MHz band signal has advantages as low propagation loss, wide coverage, strong penetration, high transmission efficiency, small base station construction scale and low networking cost.UIY provides vast options of 700MHz frequency range Isolator Circulators.

Here list several common sizes for references. customers can consult us in detail by needs.

Model

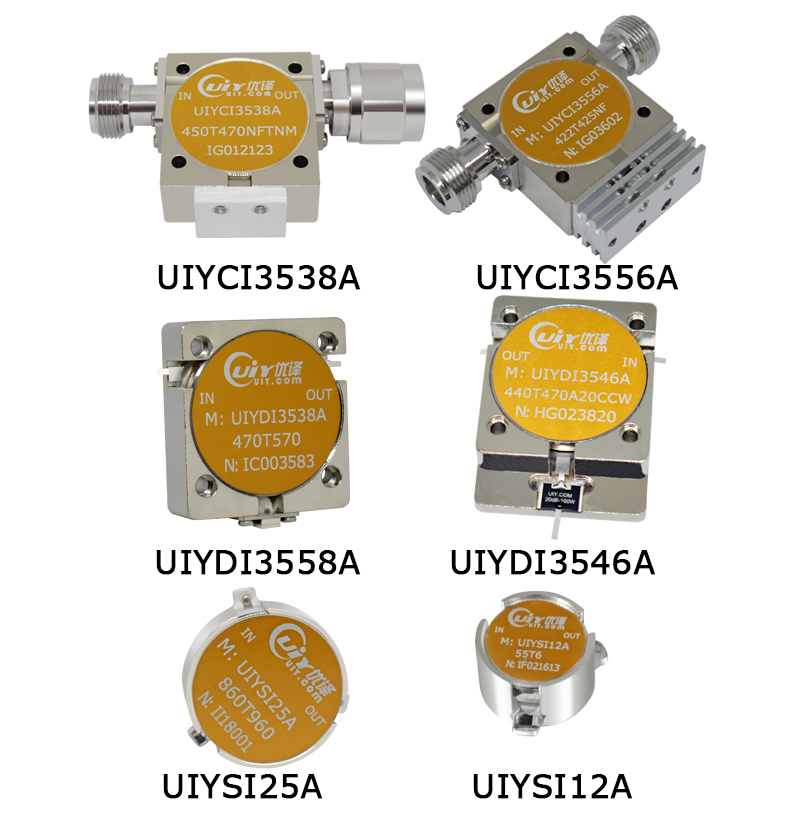

Product Picture

Mechanical Drawing



Model: UIYCI3556A

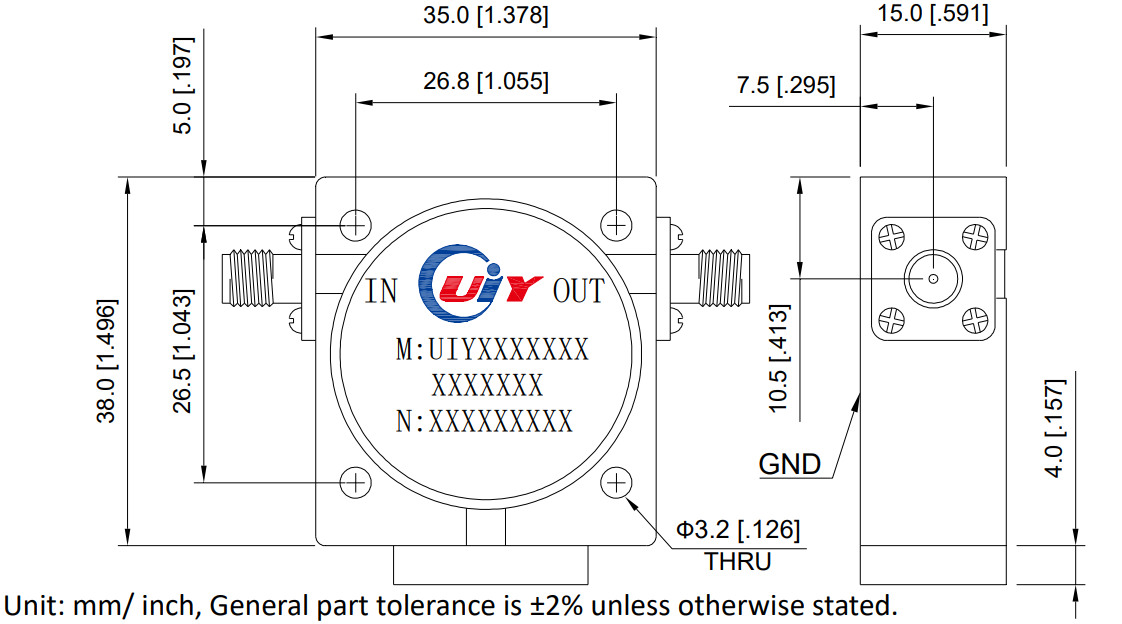

Model: UIYCI3538A

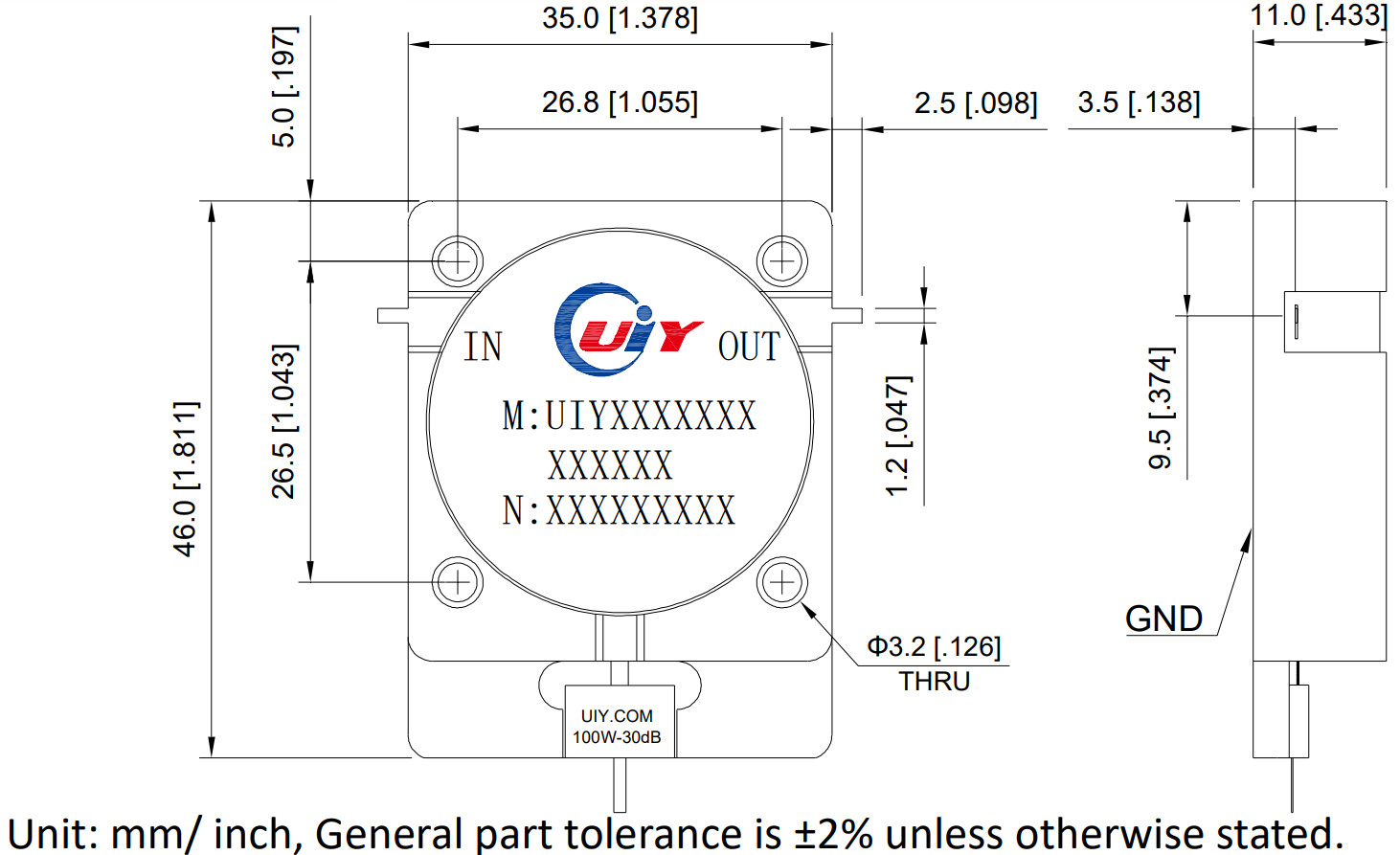

Model: UIYDI3546A

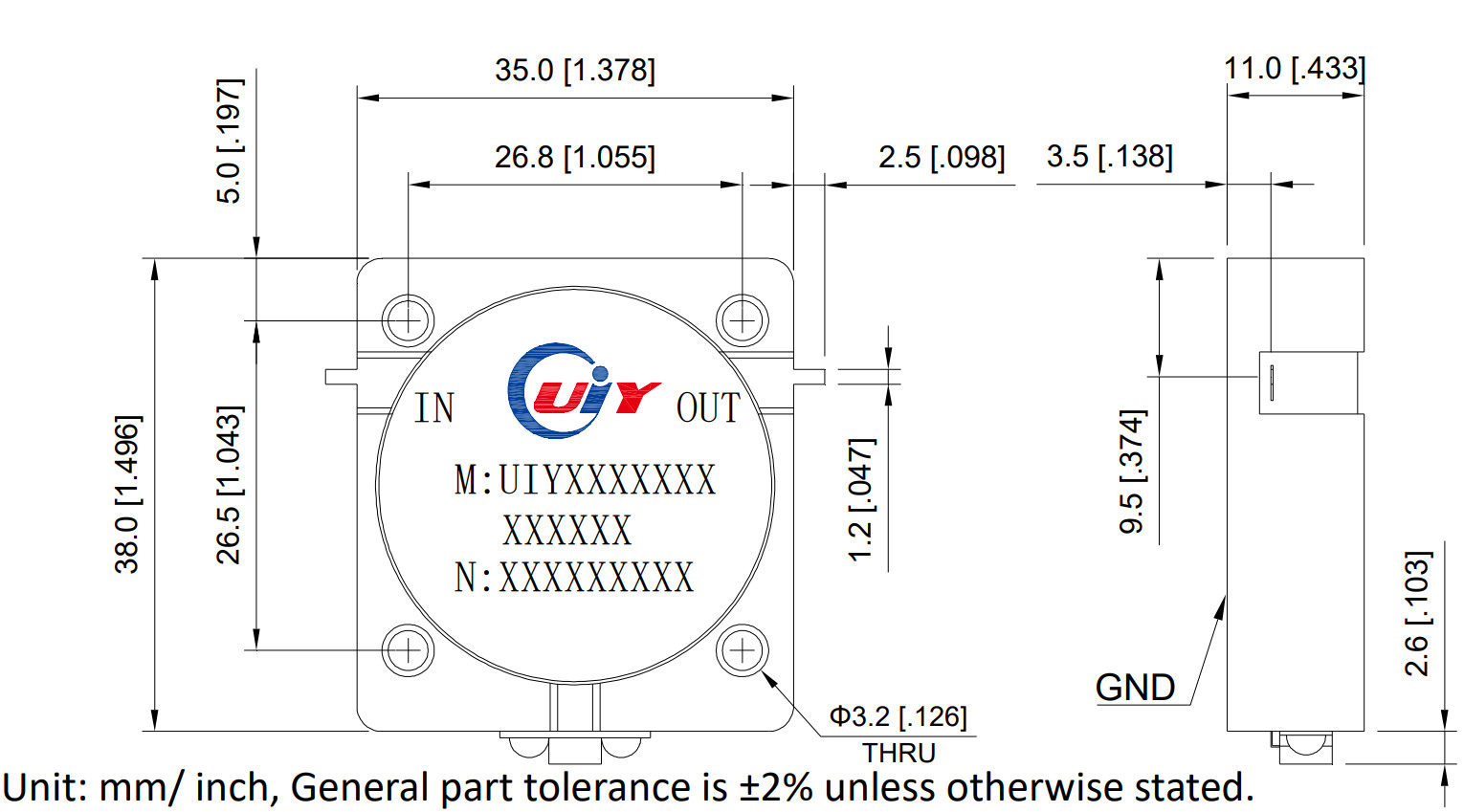

Model: UIYDI3538A

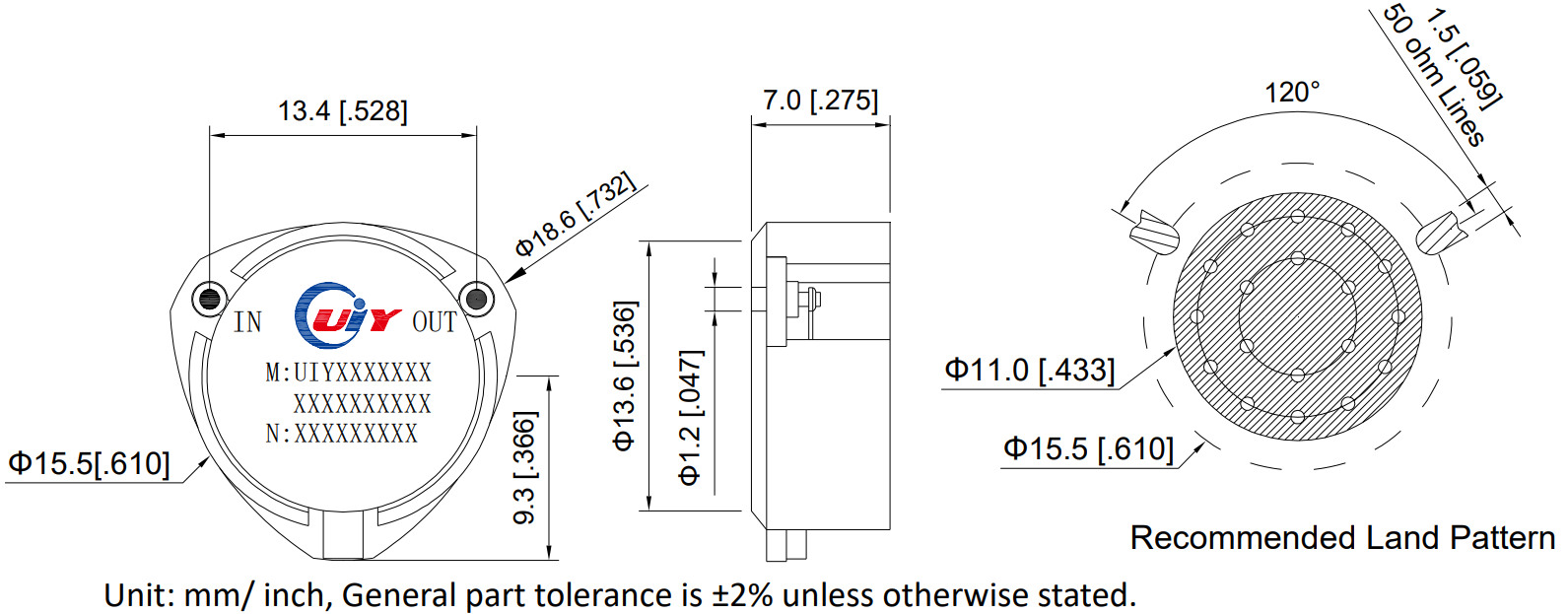

Model: UIYSI15A

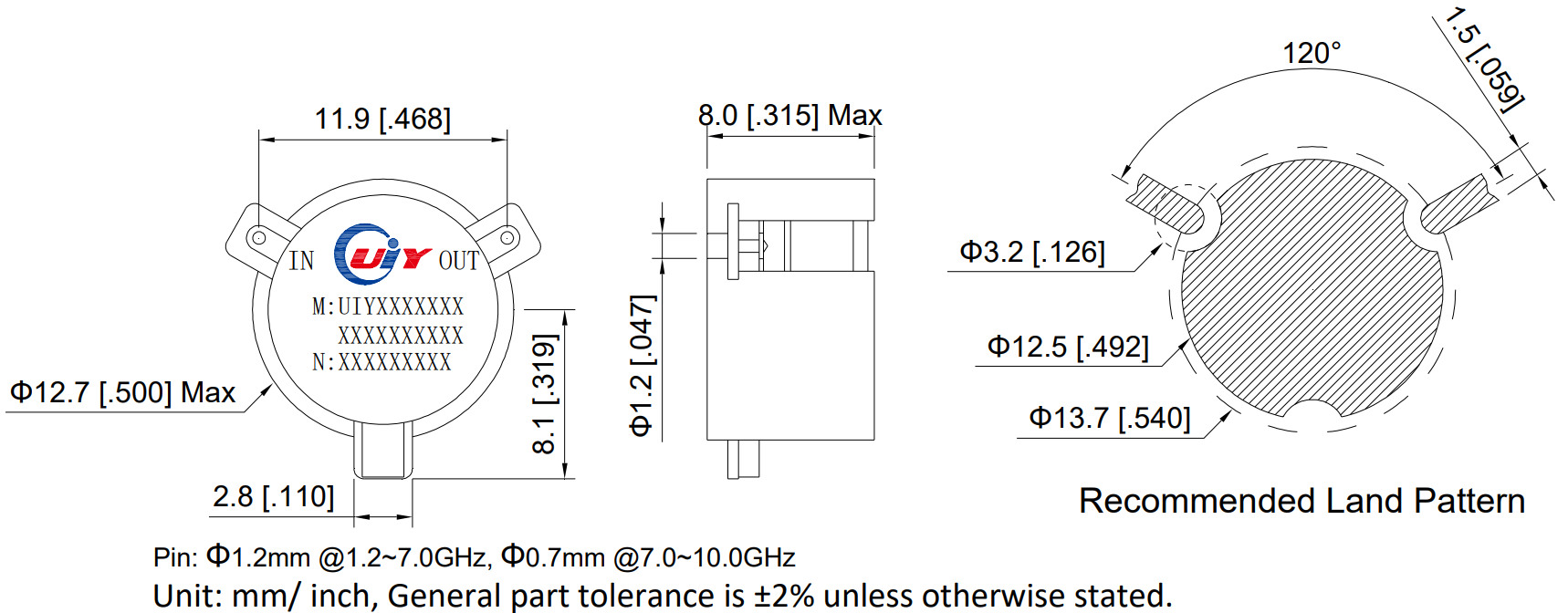

Model: UIYSI12A

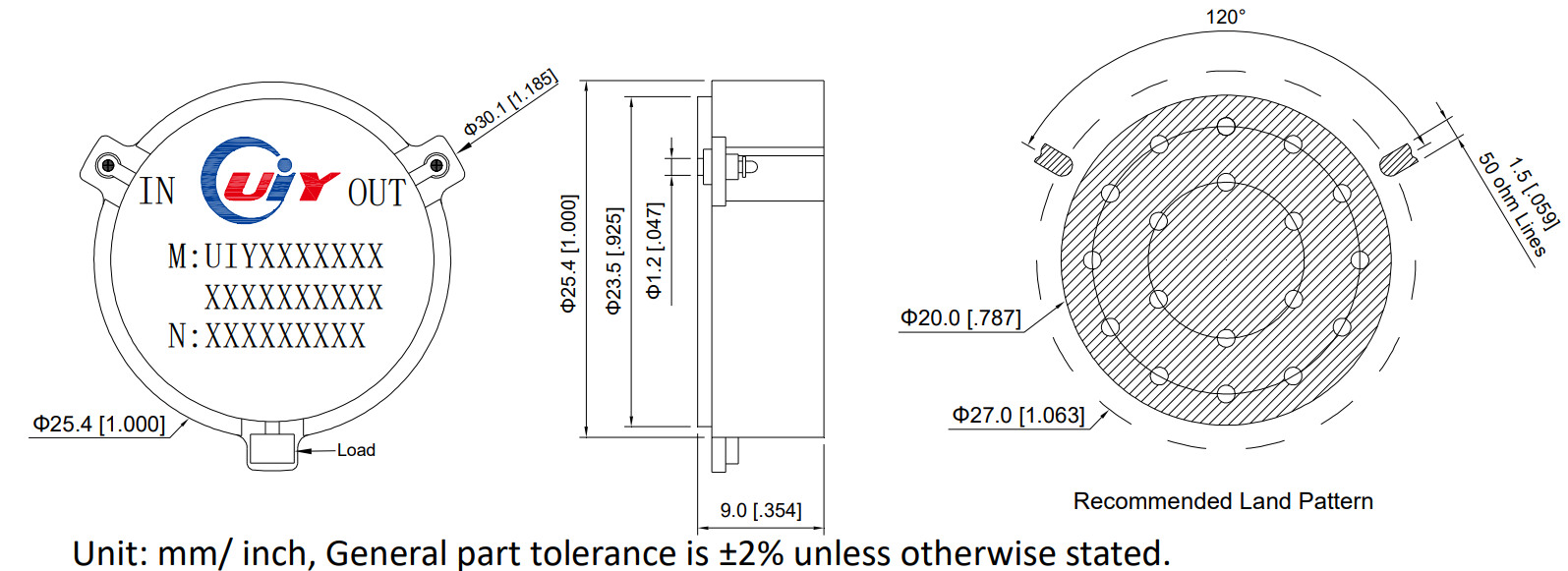

Model: UIYSI25A
