[Product recommendation] Small size, high frequency band RF Coaxial Circulator is recommended

Due to the diversity of spec, we are unable to display all products.
If you have any parameter questions about frequency, power, insertion loss etc, pls feel free to contact us directly.

Tel: +86-755-83748888
         +86-755-25999990

Fax: +86-755-25999959

Mail: sales@uiy.com          sales@uiy.com.cn

01

UIYCC1317A


Model parameters Forward Power: 10W
Freq.Range: 18~26GHz Reverse Power: 10W
IL.: 0.8dB Connector Type: SMA
Isolation: 16dB Temp.: 0~+60°C
VSWR: 1.4 Dimension LxWxH: 13×17×13mm

RF Characteristics

Mechanical Drawing

02

UIYCC1318A


Model parameters Forward Power: 60W
Freq.Range: 6~20GHz Reverse Power: 60W
IL.: 0.3dB Connector Type: SMA
Isolation: 23dB Temp.: -55~+85°C
VSWR: 1.2 Dimension LxWxH: 13×18×13.8mm

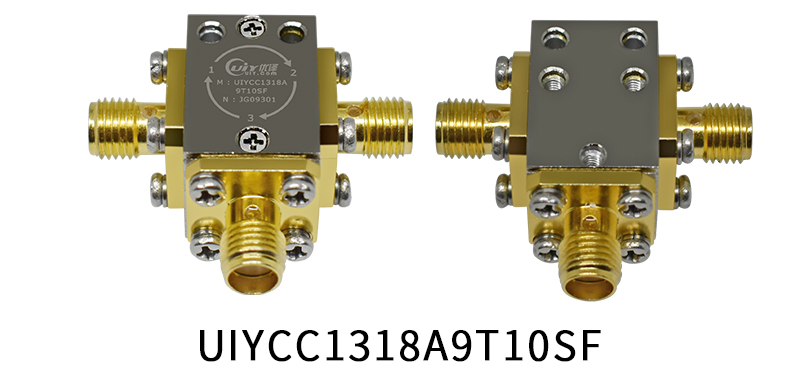

Product Picture

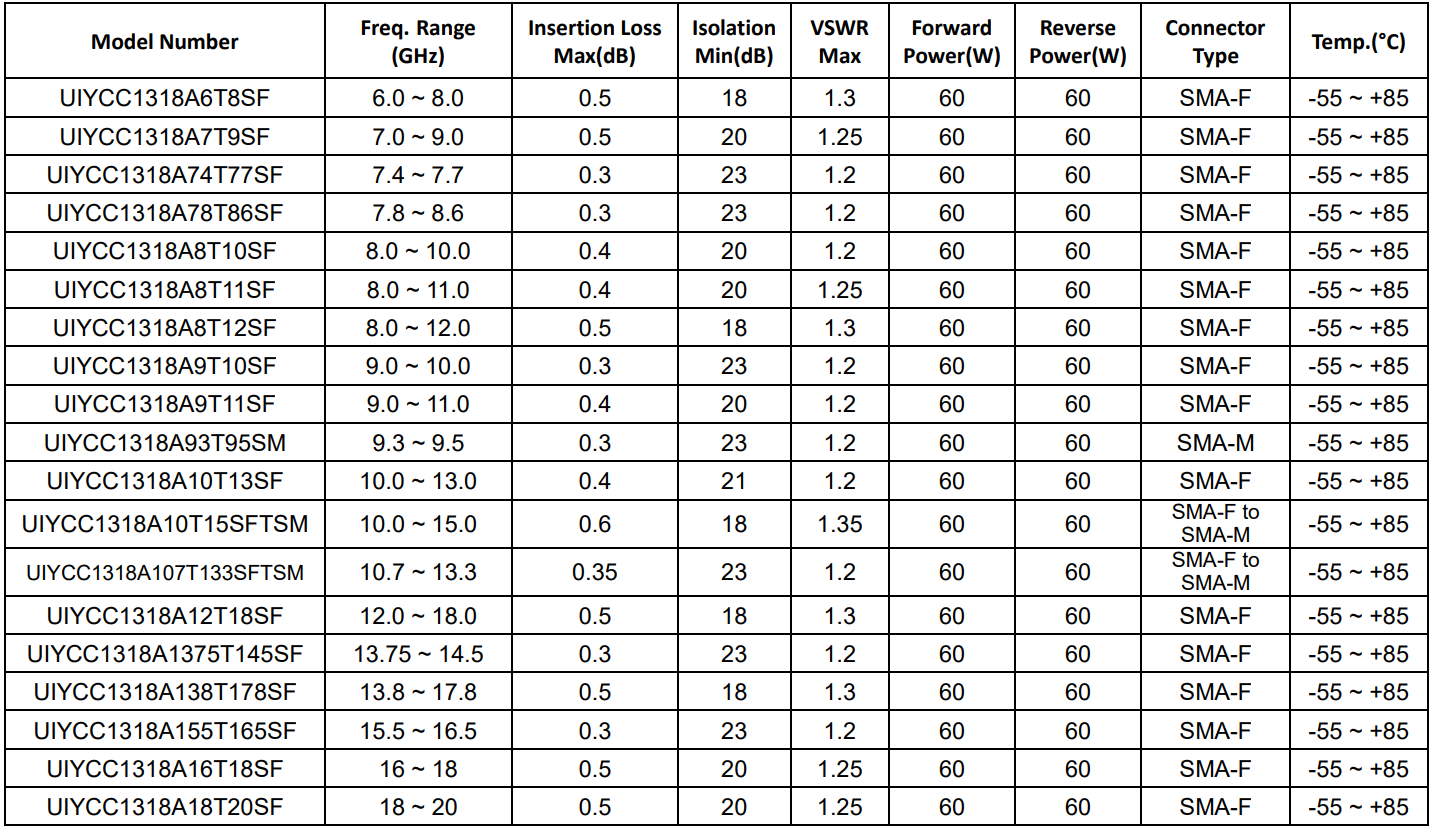

RF Characteristics

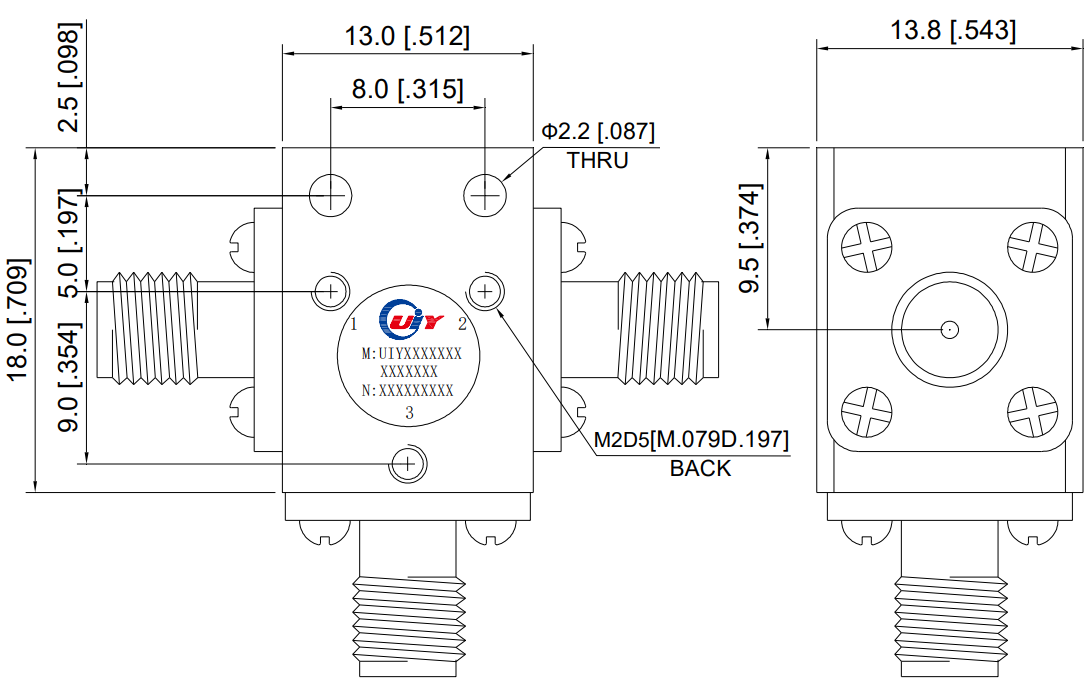

Mechanical Drawing
