UIY just unveiled its new wideband 22~33GHz RF circulators and isolators, which are available both in coaxial and drop in connection types. 22~33GHz is a mm-Wave well suited for 5G communications, SATCOM, Automobile Radar etc.
UIY is committed to provide the top-class RF components, from prototype, sample design and mass production. It is our aim to provide you with the best solution possible.
UIYBCC1325B: https://www.uiy.com/Datasheet/UIYBCC1325B.pdf
| Model Number | Freq. Range
(GHz) |
Insertion Loss Max(dB) |
Isolation Min(dB) |
VSWR Max |
Forward Power (W) | Reverse Power (W) | Connector
Type |
Temp.(°C) |
| UIYBCC1325B22T33KF | 22.0 ~ 33.0 | 1.5 | 15 | 1.5 | 10 | 10 | 2.92mm-F | +25±5 |
| 1.7 | 13 | 1.7 | -40 ~ +80 | |||||
| UIYBCC1325B22T33KMTKF | 22.0 ~ 33.0 | 1.5 | 15 | 1.5 | 10 | 10 | 2.92mm-M
to 2.92mm-F |
+25±5 |
| 1.7 | 13 | 1.7 | -40 ~ +80 |
UIYBCI1326B: https://www.uiy.com/Datasheet/UIYBCI1326B.pdf
| Model Number | Freq. Range
(GHz) |
Insertion Loss Max(dB) |
Isolation Min(dB) |
VSWR Max |
Forward Power (W) | Reverse Power (W) | Connector
Type |
Temp.(°C) |
| UIYBCI1326B22T33KF | 22.0 ~ 33.0 | 1.3 | 16 | 1.5 | 10 | 2 | 2.92mm-F | +25±5 |
| 1.6 | 15 | 1.6 | -45 ~ +85 | |||||
| UIYBCI1326B22T33KMTKF | 22.0 ~ 33.0 | 1.3 | 16 | 1.5 | 10 | 2 | 2.92mm-M to 2.92mm-F | +25±5 |
| 1.6 | 15 | 1.6 | -45 ~ +85 |
UIYBDC1325B: https://www.uiy.com/Datasheet/UIYBDC1325B.pdf
| Model Number | Freq. Range
(GHz) |
Insertion Loss Max(dB) |
Isolation Min(dB) |
VSWR Max |
Forward Power (W) | Reverse Power (W) | Connector
Type |
Temp.(°C) |
| UIYBDC1325B22T33 | 22.0 ~ 33.0 | 1.5 | 15 | 1.5 | 10 | 10 | TAB | +25±5 |
| 1.7 | 13 | 1.7 | -40 ~ +80 |
UIYBDI1326B: https://www.uiy.com/Datasheet/UIYBDI1326B.pdf
| Model Number | Freq. Range
(GHz) |
Insertion Loss Max(dB) |
Isolation Min(dB) |
VSWR Max |
Forward Power (W) | Reverse Power (W) | Connector
Type |
Temp.(°C) |
| UIYBDI1326B22T33 | 22.0 ~ 33.0 | 1.3 | 16 | 1.5 | 10 | 2 | TAB | +25±5 |
| 1.6 | 15 | 1.6 | -45 ~ +85 |
Mechanical Diagram

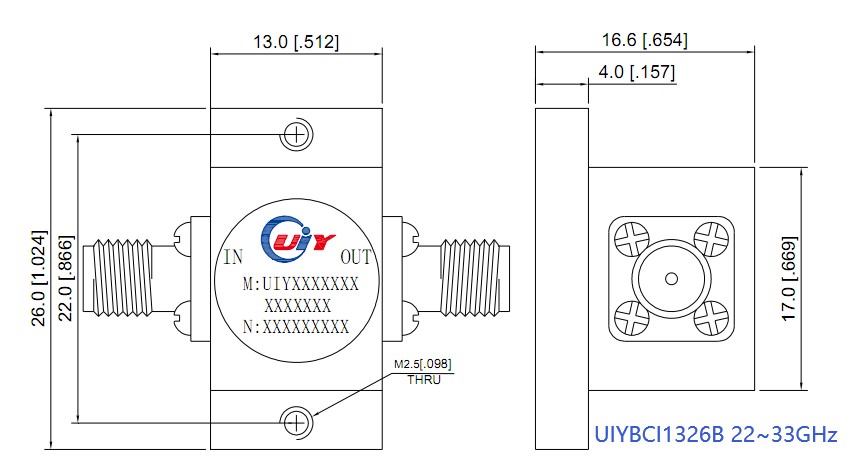

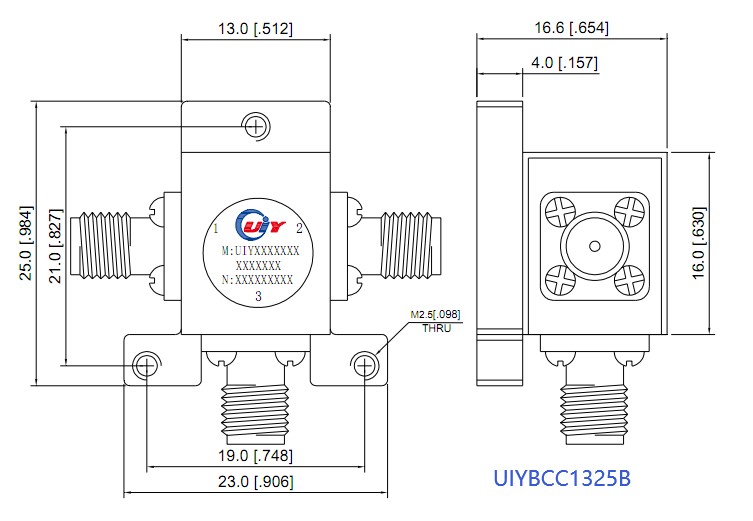

| UIYBCC1325B22T33KF | UIYBCI1326B22T33KF |
 |
 |

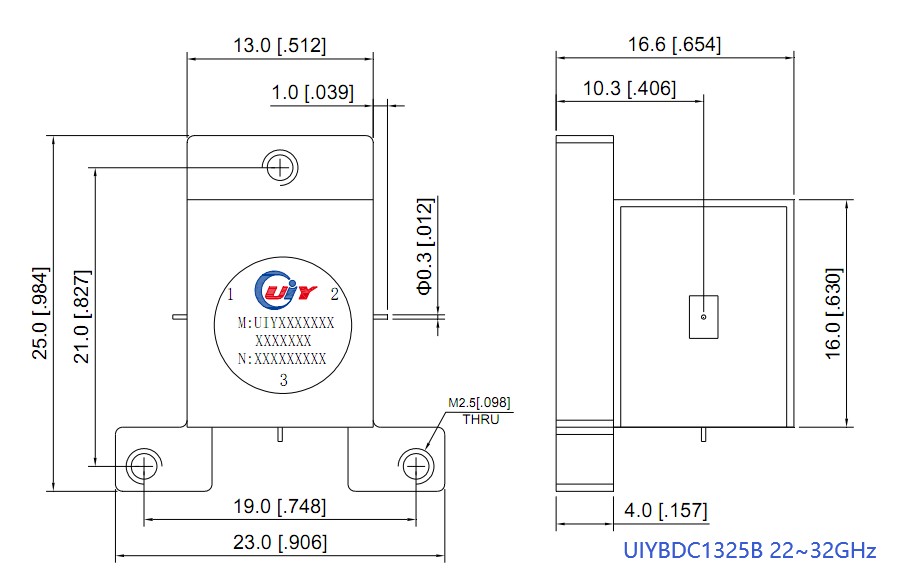

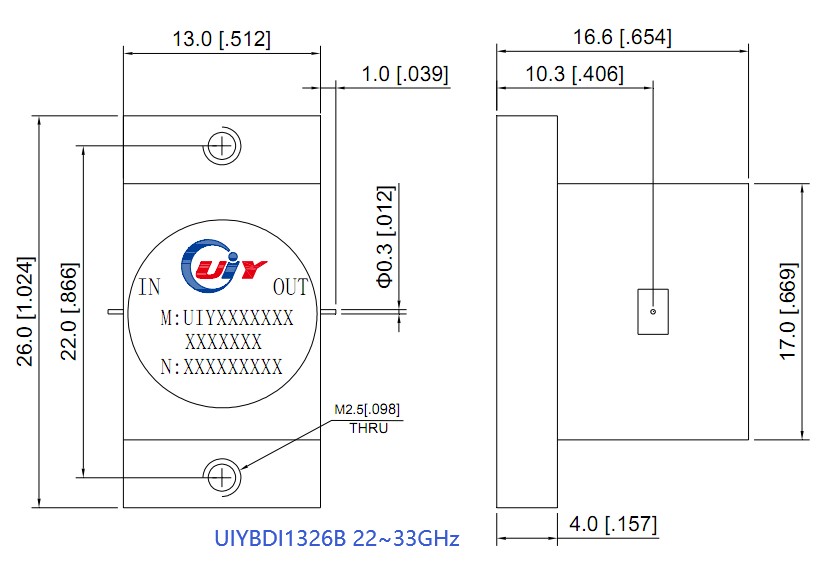

| UIYBDC1325B22T33 | UIYBDI1326B22T33 |
 |
 |
