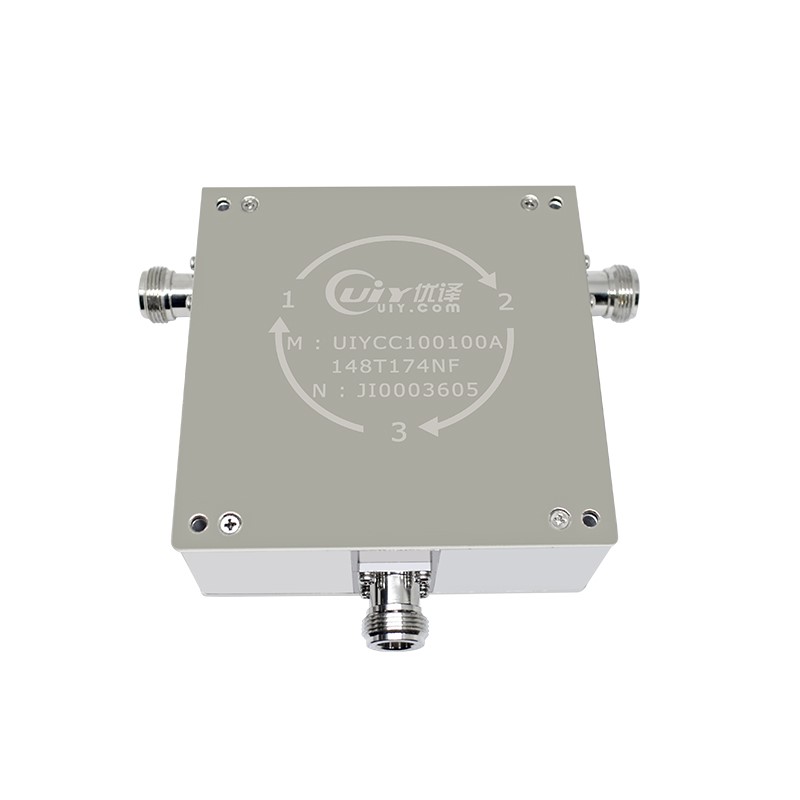

UIYCC100100A is a high-power circulator with CW500W both in forward and reverse. It operates over 70 to 130MHz in bandwidth 20%, Featuring in excellent RF characteristics, it performs as insertion loss less than 0.5dB，isolation higher than 20dB, VSWR less than 1.25:1. UIYCC100100A comes with N-Female connector which is suitable to enduring high power. Its operation temperature 0~+70°C. The mechanical size is 100×100×40mm.
Among them, the band 59~61MHz, 60~62MHz are tailor-made as per customer request.
| Model Number |
Freq. Range (MHz) |
Insertion Loss Max(dB) |
Isolation Min (dB) |
VSWR Max |
Forward Power (W) | Reverse Power (W) |
Connector Type |
Temp.(°C) |
|
UIYCC100100A59T61NF new! |
59 ~61 | 1.5 | 15 | 1.45 | 300 | 300 | N Female | 0 ~+70 |
|
UIYCC100100A60T62NF new! |
60~62 | 1.5 | 15 | 1.45 | 300 | 300 | N Female | 0 ~+70 |
| UIYCC100100A70T75NF | 70 ~ 75 | 1.2 | 16 | 1.45 | 500 | 500 | N-F | 0 ~+70 |
| UIYCC100100A75T85NF | 75 ~ 85 | 1.2 | 16 | 1.45 | 500 | 500 | N-F | 0 ~+70 |
| UIYCC100100A76T96NF | 76 ~ 96 | 1.2 | 16 | 1.45 | 500 | 500 | N-F | 0 ~+70 |
| UIYCC100100A80T90NF | 80 ~90 | 0.8 | 16 | 1.45 | 500 | 500 | N-F | 0 ~+70 |
| UIYCC100100A88T108NF | 88~108 | 0.8 | 17 | 1.35 | 500 | 500 | N-F | 0 ~+70 |
| UIYCC100100A110T130NF | 110~130 | 0.5 | 20 | 1.25 | 500 | 500 | N-F | 0 ~+70 |
