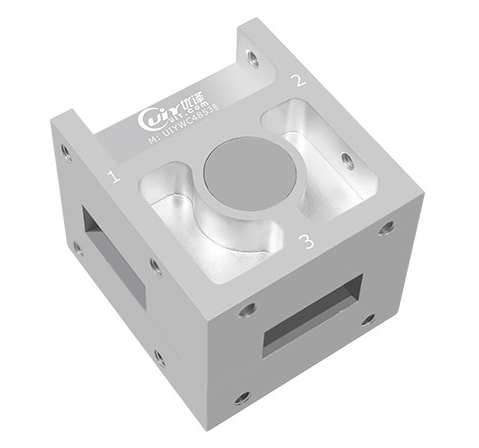

8 to 12GHz X Band Waveguide Circulator-UIYWC4853B8T12

Time: 2023-02-22

UIY unique 8 to 12GHz X Band Waveguide Circulator is one of the most popular products among UIY waveguide circulators. Benefit from its typical X band, which is widely applied in Sat comms, Tel comms, Radar Systems, Space Research, Broadcasting Satellite, Meteorological Satellite, Earth Exploration etc.

The X band Radar market is expected to grow at a CAGR of 4.5% during 2021~2030. Aviation is one of the major industries that makes extensive use of X-band radar. X-band radar is deployed for numerous applications in industry, including weather detection, bird activity detection, and anti-icing remote sensing etc.



Design Features

◆ High RF performance, ultra-competitive price.

◆ Military, space and commercial applications.

◆ Custom design available upon request.

◆ Support one year standard warranty.



Model No.: UIYWC4853B8T12

Freq.Range (GHz): 8.0 ~ 12.0GHz

BW Max: Full

IL (dB): 0.5dB

Isolation (dB): 18dB

VSWR: 1.3:1 max

Forward Power(W) : 100W

Reverse Power(W) : 100W

Connector Type: WR90(BJ100)

Temp. (°C): -40 ~ +85°C

Dimension LxWxH(mm): 48*53*42mm

Datasheet:  https://www.uiy.com/Datasheet/UIYWC4853B.pdf



Mechanical Drawing

Mechanical DrawingUIYWC4853B8T12
