1800 to 2300MHz Pass Band Cavity Filter UIYBPF12028A

Time: 2023-08-16

UIYBPF12028A pass band cavity filter works from 1800 to 2300MHz pass band by bandwidth 400MHz. It features in minimum rejection 80dB @Fc±800MHz and 65dB @Fc±400MHz, by insertion loss less than 0.3dB, 20W handling power, VSWR 1.3:1 max. SMA or N connector to meet versatile requirements.


UIY is committed on design and manufacture of Band Pass filters, with frequency up to 40GHz.  For more details, please visit: www.uiy.com or send your request to sales@uiy.com.


Model No.: UIYBPF12028A1900T2300SF

Freq. Range (GHz): 1.9 ~ 2.3 GHz

IL Max(dB): 0.3

Ripple Max(dB): 0.2

Rejection Min (dB): 80dB @DC~1.0GHz

80dB @3.1~8.0GHz

65dB @1.0~1.5GHz

65dB @2.7~3.0GHz

VSWR Max:  1.3

Power(W):  20W

Connector Type:  SMA-Female

Temp. (°C): -40 ~ +85 °C

Dimension LxWxH(mm):  120*28*24mm

Manufacturer: UIY Inc.


Datasheet:  https://www.uiy.com/Datasheet/UIYBPF12028A.pdf

Video: https://youtu.be/DoA3M6M5uA8

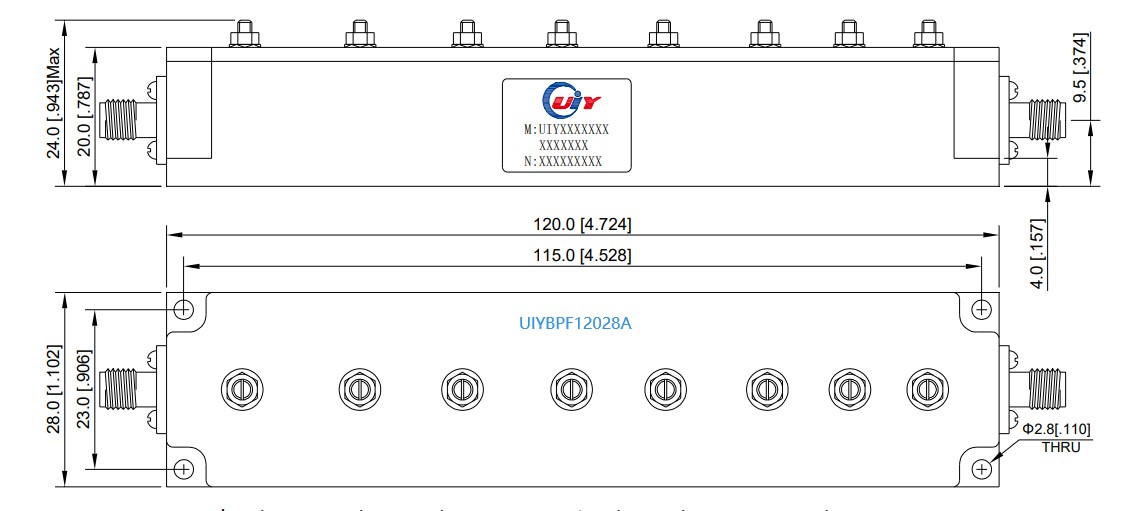

UIYBPF12028A Mechanical Drawing
