The UIYCC4550A690T1000SF is a high-performance product in the coaxial circulator series. With its exceptional signal transmission characteristics and high isolation, this product is widely used in various wireless communication and microwave systems. The UIYCC4550A690T1000SF is designed to ensure effective signal transmission within a specific frequency band while suppressing interference from reverse signals, enhancing the stability and efficiency of the overall system.
Design Features
High Isolation: Within the operating frequency range of 690 MHz to 1000 MHz, the UIYCC4550A690T1000SF provides an isolation of up to 18 dB, effectively preventing reverse signal leakage and ensuring signal purity and system performance.
Low Insertion Loss: The insertion loss of the product is only 0.5 dB, minimizing signal loss during transmission and improving signal transmission efficiency.
Wide Operating Temperature Range: Designed for a wide temperature range of -30°C to +70°C, ensuring stable operation under various environmental conditions.
High-Performance Connector: Utilizing an SMA-Female connector, it is easy to install and connect, ensuring good electrical performance and mechanical stability.
High Power Handling Capability: Supports forward and reverse power up to 100W, meeting the demands of high-power applications.
Application Fields
Wireless Communication Systems: Suitable for various wireless communication base stations, relay stations, and signal amplifiers, improving signal transmission quality and system stability.
Radar Systems: Used in radar systems for isolating signal transmission and reception, preventing signal interference, and ensuring the accuracy of radar systems.
Microwave Test Equipment: Used in microwave test instruments as a key component in the signal path to ensure the accuracy of test results.
Satellite Communication Systems: Provides a high-isolation signal transmission path in satellite ground stations and communication equipment, enhancing the stability of communication signals.

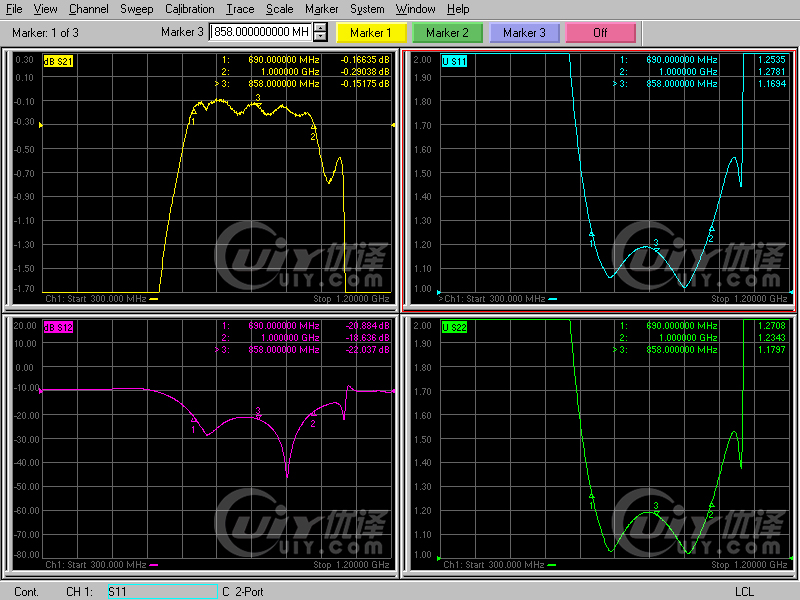

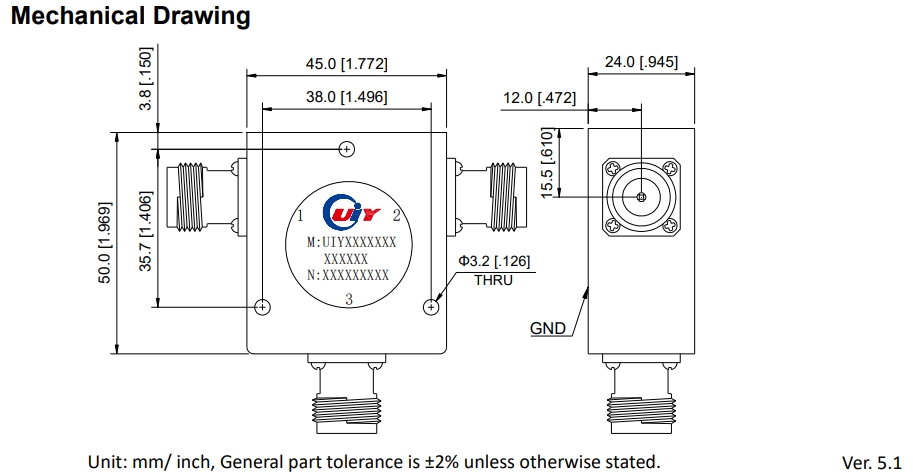

Specification Information
Model No.: UIYCC4550A690T1000SF
Frequency: 690 ~ 1000 MHz
Insertion Loss: 0.5 dB
Isolation: 18 dB
VSWR: 1.3 dB
Forward Power: 100W
Reverse Power: 100W
Connector Type: SMA -Female
Operating temp.: -30~+70°C
Manufacturer: UIY Inc.
The UIYCC4550A690T1000SF coaxial circulator, with its exceptional performance and wide range of applications, has become an indispensable key component in wireless communication and microwave systems. Whether it is for communication systems pursuing high efficiency or test equipment requiring high isolation, the UIYCC4550A690T1000SF provides a stable and reliable solution.
