[New] UIY 18-26.5GHz, 26.5-40GHz full bandwidth Coaxial Isolator and Drop in Isolator
UIY releases new products as below:

（1）Freq. Range : 18-26.5GHz     Model Number : UIYBCI1025A     Product type: Coaxial Isolator;
（2）Freq. Range : 18-26.5GHz     Model Number : UIYBDI1025A     Product type: Drop in Isolator;
（3）Freq. Range : 26.5-40GHz     Model Number : UIYBCI1125A     Product type: Coaxial Isolator;
（4）Freq. Range : 26.5-40GHz     Model Number : UIYBDI1125A     Product type: Drop in Isolator;
Full bandwidth, good indicators,  friends in need are welcome to consult us.

Due to the diversity of spec, we are unable to display all products.
If you have any parameter questions about frequency, power, insertion loss etc, pls feel free to contact us directly.

Tel: +86-755-83748888
         +86-755-25999990

Fax: +86-755-25999959

Mail: sales@uiy.com          sales@uiy.com.cn



01

Model Number: UIYBCI1025A Forward Power: 10W
Freq.Range: 18.0~26.5GHz Reverse Power: 2W
IL.: 0.7dB Connector Type: 2.92mm
Isolation: 20dB Temp.: -40~+70°C
VSWR: 1.3 Dimension LxWxH: 10.2×25.6×12.5mm

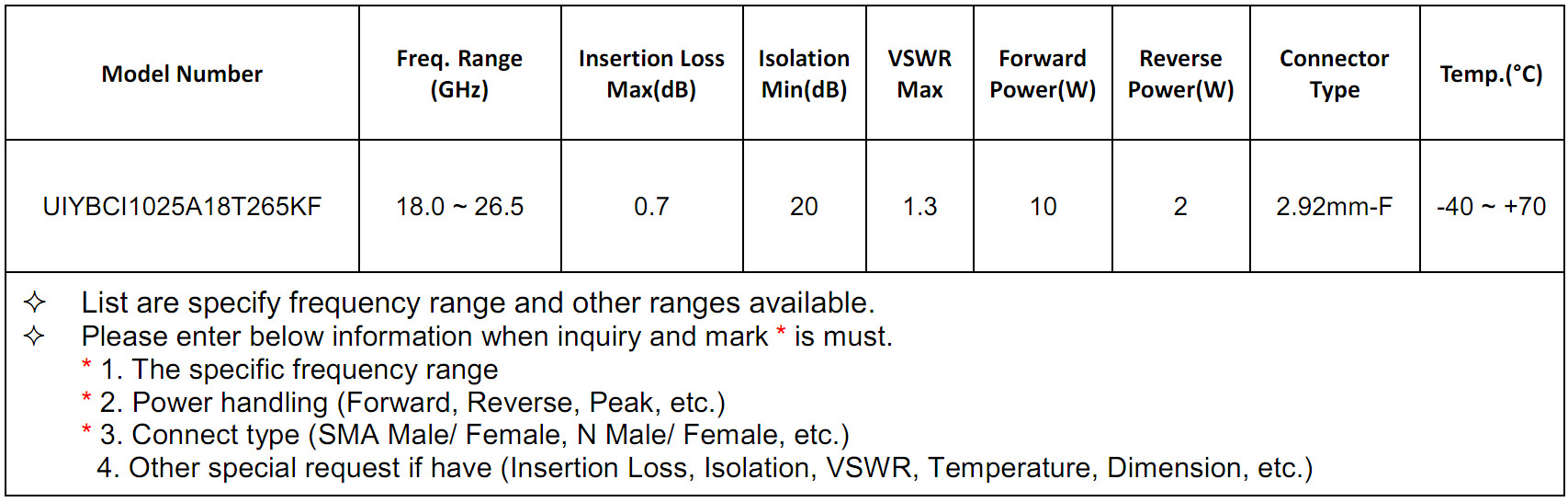

RF Characteristics

Mechanical Drawing

02


Model Number: UIYBDI1025A Forward Power: 10W
Freq.Range: 18.0~26.5GHz Reverse Power: 2W
IL.: 0.7dB Connector Type: TAB
Isolation: 20dB Temp.: -40~+70°C
VSWR: 1.3 Dimension LxWxH: 10.2×25.6×12.5mm

RF Characteristics

Mechanical Drawing



03



Model Number: UIYBCI1125A
Freq.Range: 26.5~35.0GHz Forward Power: 15W



Reverse Power: 2W



Connector Type: 2.92mm



Temp.: -55~+85°C



Dimension LxWxH: 11.1×25.6×15mm
IL.: 1.4dB
Isolation: 15dB
VSWR: 1.5
Freq.Range: 26.5~40.0GHz
IL.: 1.8dB
Isolation: 12dB
VSWR: 1.7

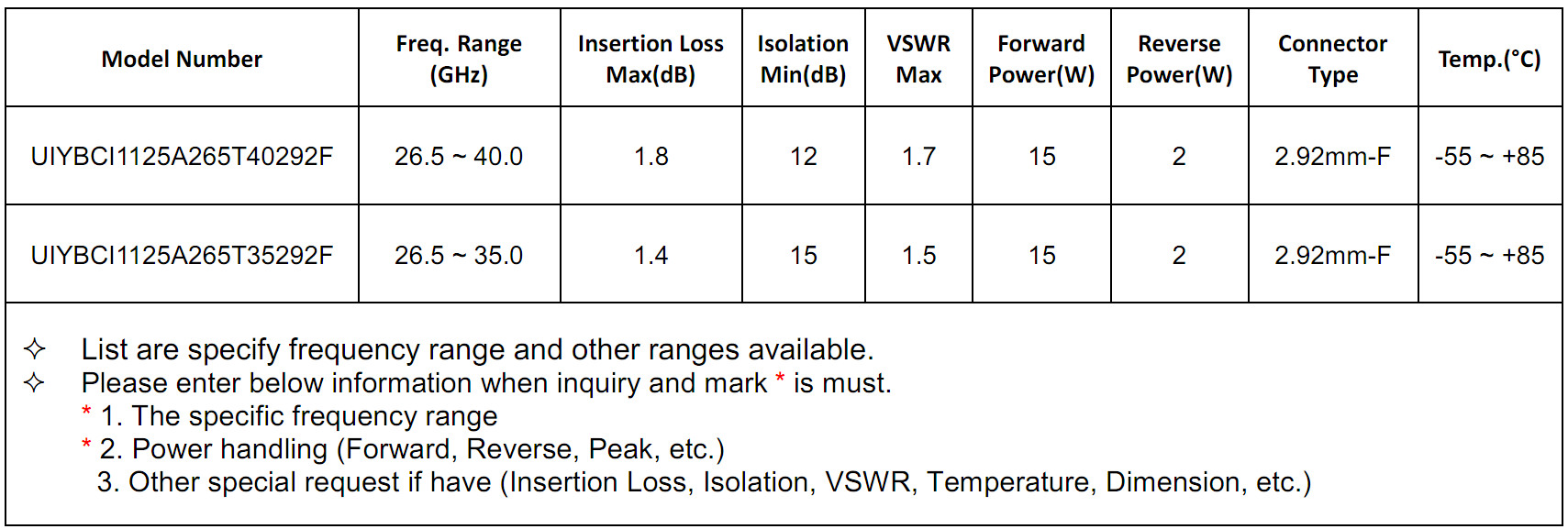

RF Characteristics

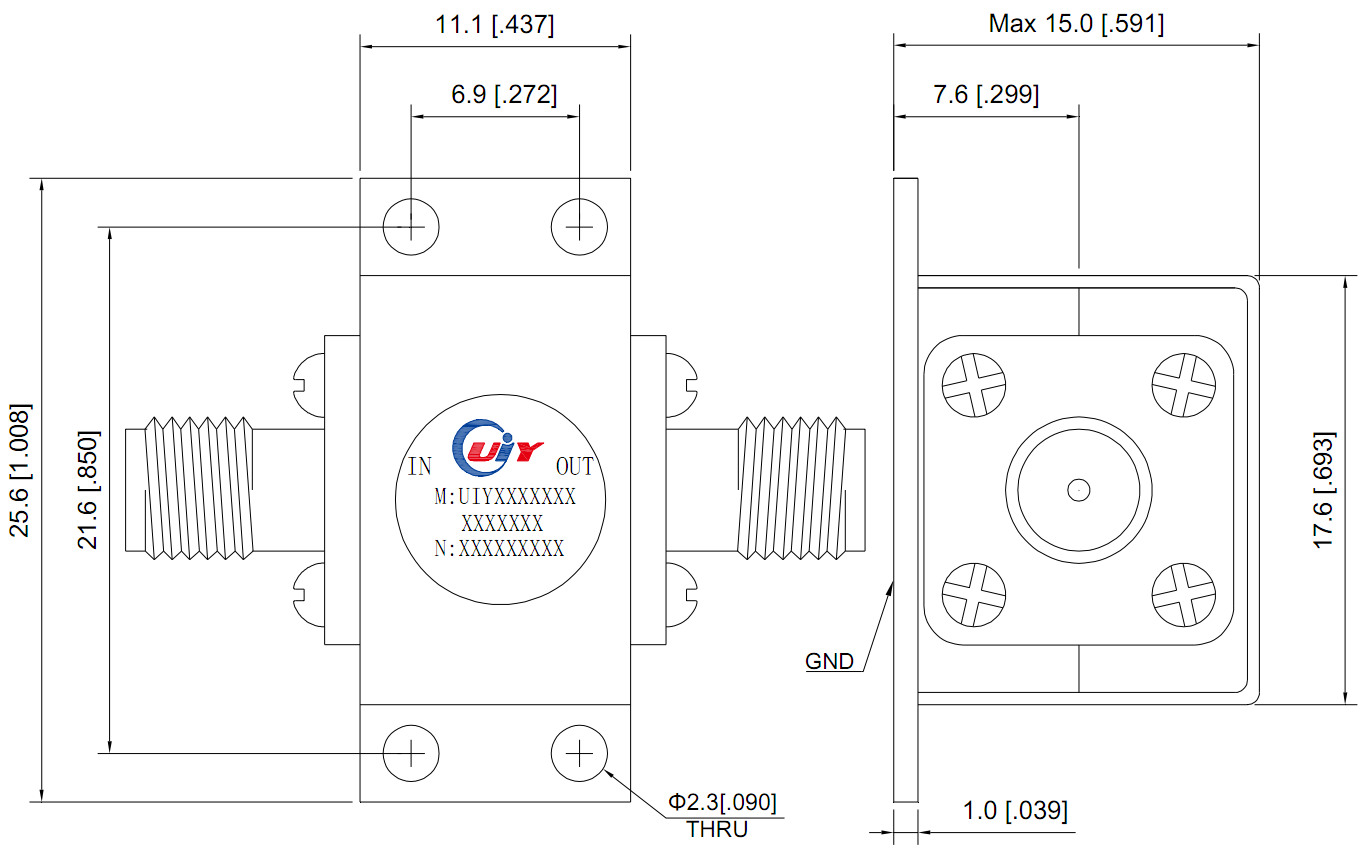

Mechanical Drawing



04



Model Number: UIYBDI1125A
Freq.Range: 26.5~35.0GHz Forward Power: 15W



Reverse Power: 2W



Connector Type: TAB



Temp.: -55~+85°C



Dimension LxWxH: 11.1×25.6×15mm
IL.: 1.4dB
Isolation: 15dB
VSWR: 1.5
Freq.Range: 26.5~40.0GHz
IL.: 1.8dB
Isolation: 12dB
VSWR: 1.7

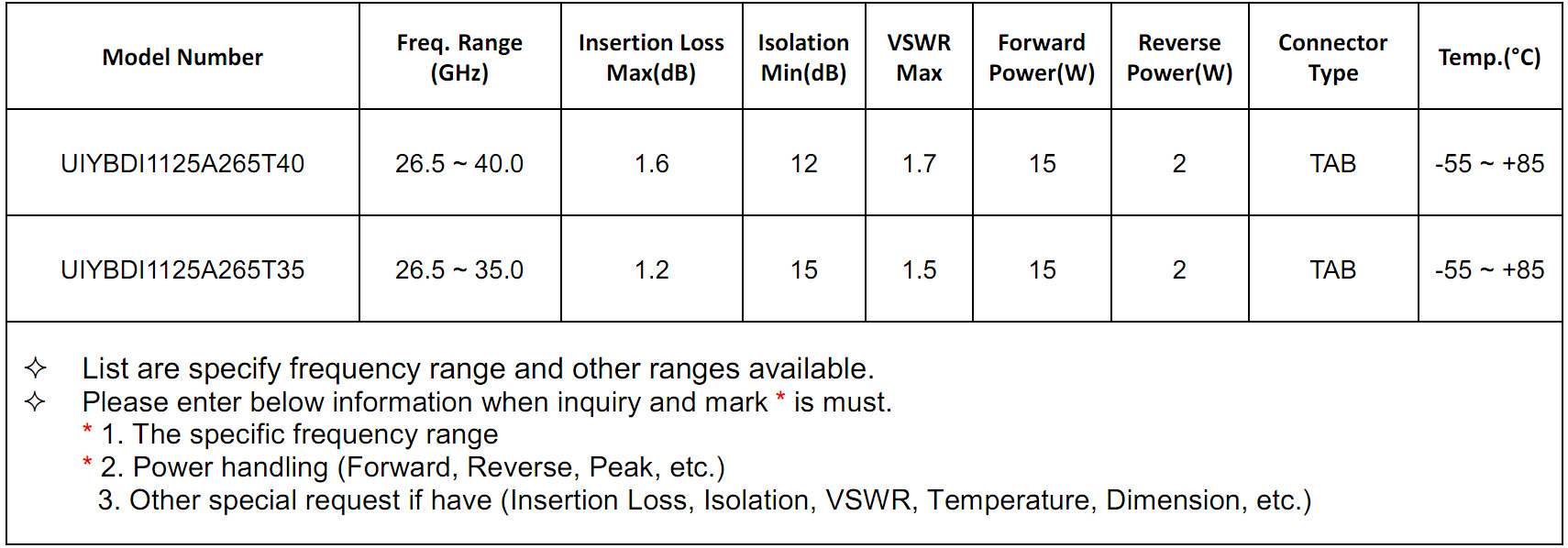

RF Characteristics

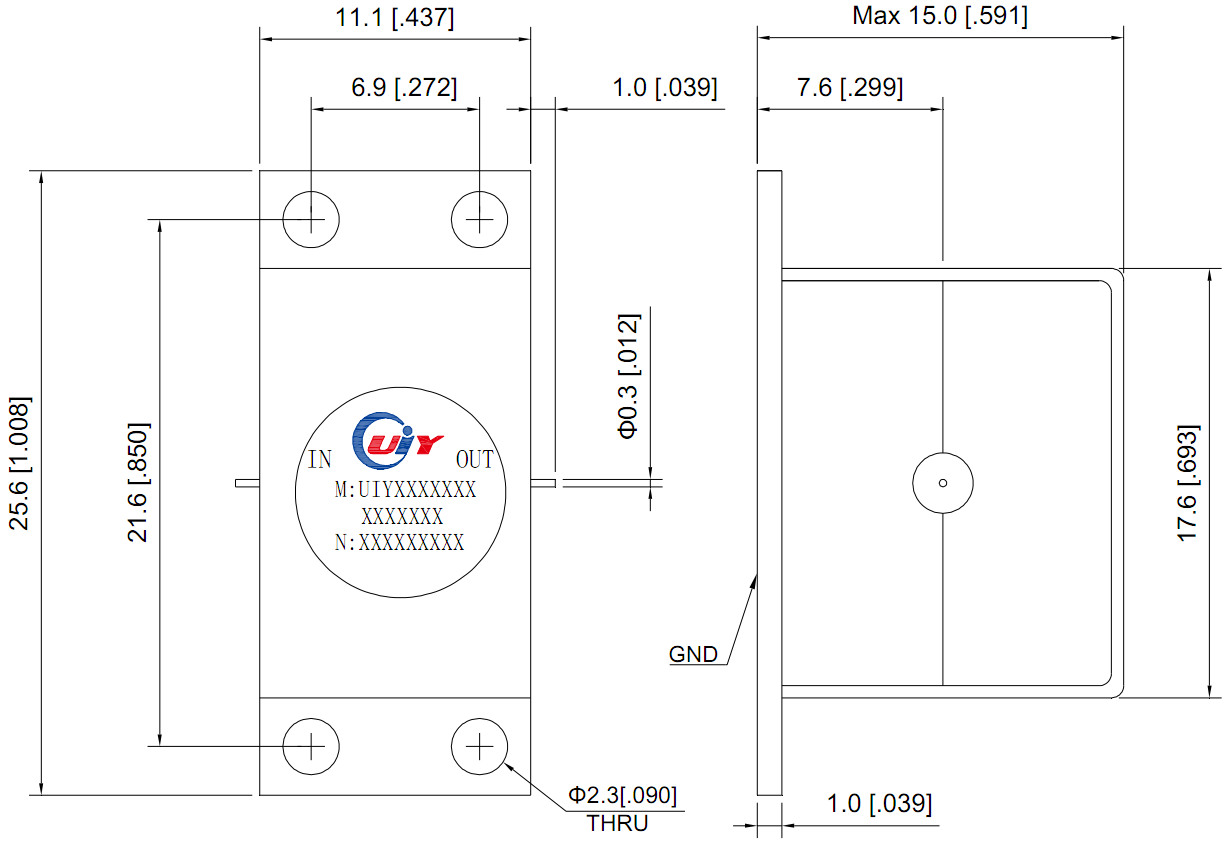

Mechanical Drawing
