Hot! 2 to 8GHz 3 Way Power Divider / Splitter

Time:2023-08-29

UIY’s 3 way power dividers supports ultra-wide band 2~8GHz.

It offers insertion loss 0.7dB, split 4.8dB, isolation more than 25dB, Phase Unbalance ±3˚, Amplitude Unbalance ±0.5dB. The operation temperature is -55~+85degC.

Custom services are available upon request.

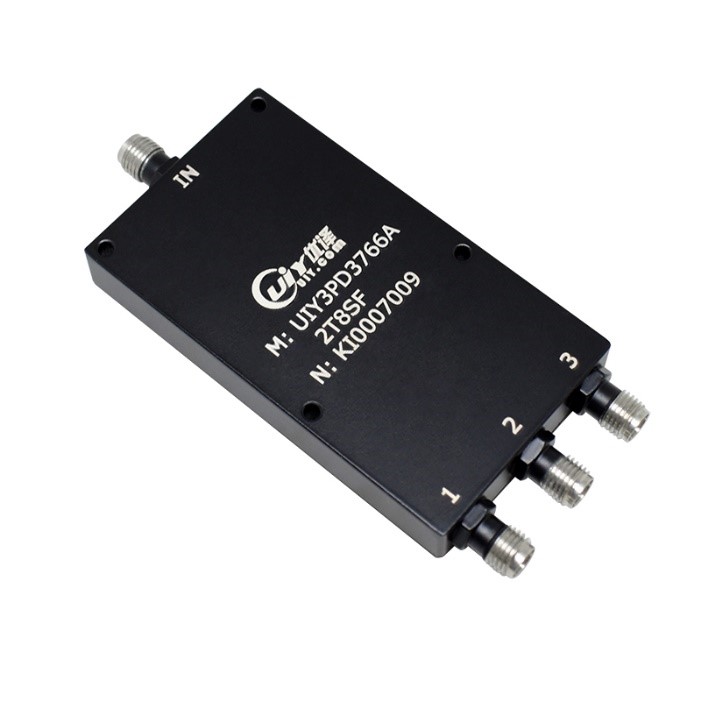

Model Number: UIY3PD3766A2T8SF

Freq. Range (GHz): 2.0 ~ 8.0GHz

Insertion Loss Max(dB): 0.7 (Split 4.8dB)

Isolation Min(dB): 25.0dB

Input Max: 1.3

Output Max: 1.25

Phase Unbalance: ±3˚

Amplitude Unbalance: ±0.5dB

Power Forward: 30W

Power Reverse: 2W

Connector Type: SMA-F

Temp.(°C): -55 ~ +85

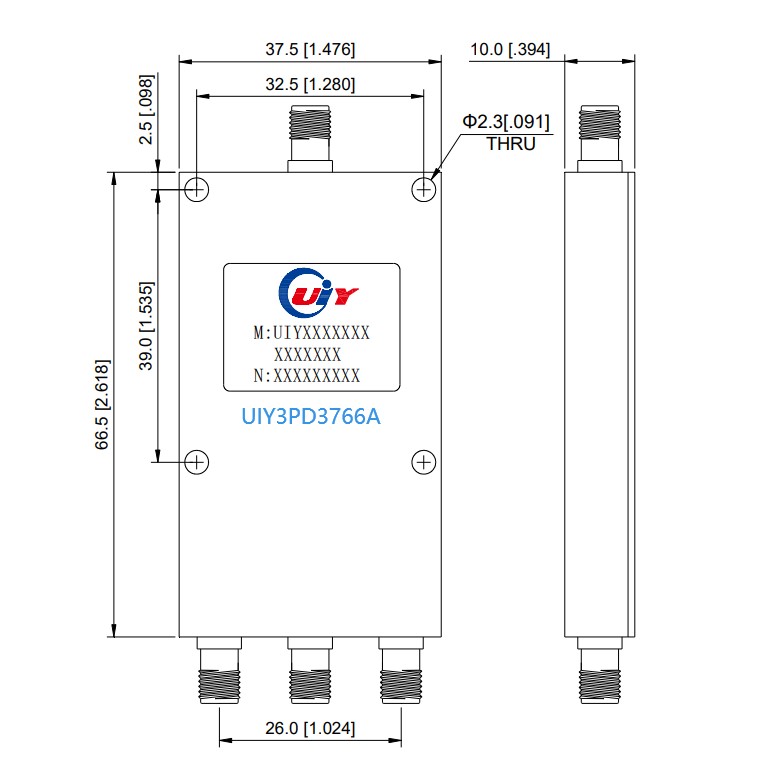

Size: 37.5×66.5×10mm

Manufacturer: UIY Inc.

Datasheet: https://www.uiy.com/Datasheet/UIY3PD3766A.pdf
