High-frequency RF Isolators and Circulators Introduction



High frequency RF Isolator/Circulator recommendation

01

Drop in Isolator

Model: UIYDI815A

Freq.Range: 5.8-20.0GHz

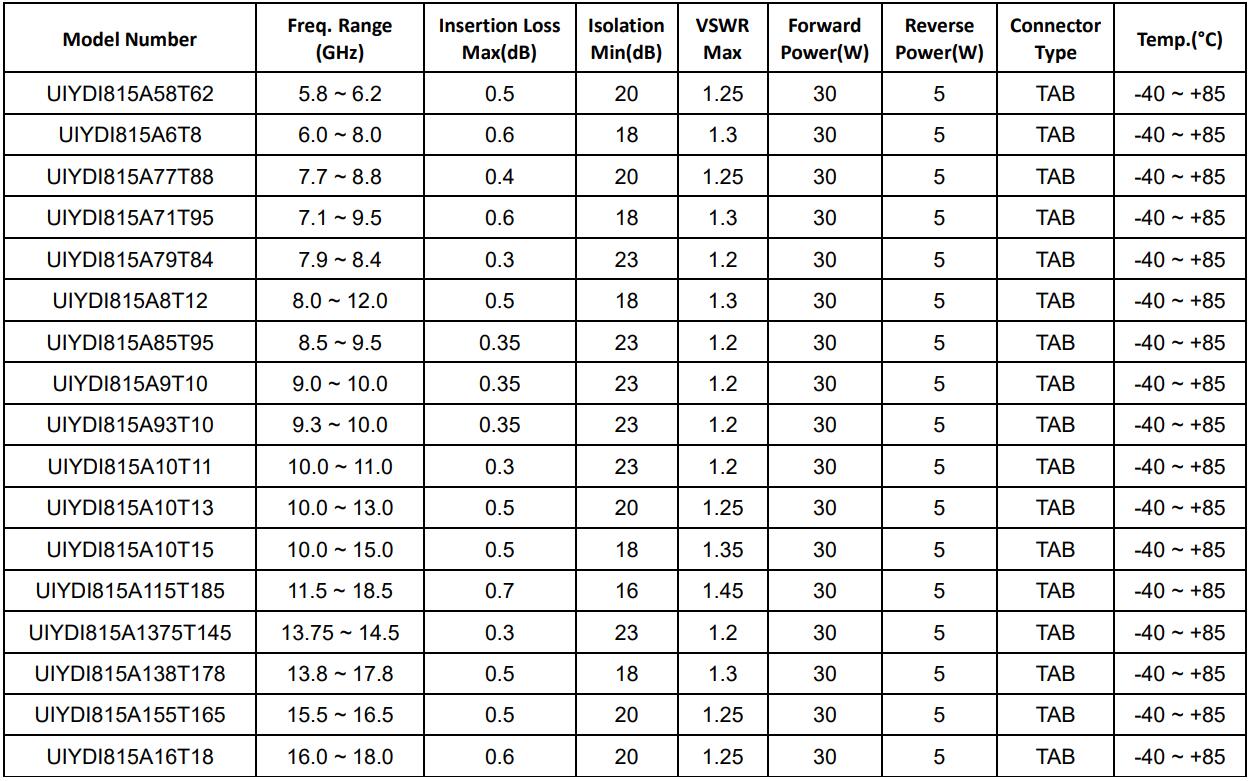

RF Characteristics

Mechanical Drawing

 02

Broadband Isolator

Model: UIYBCI1024A

Freq.Range: 18.0-26.5GHz

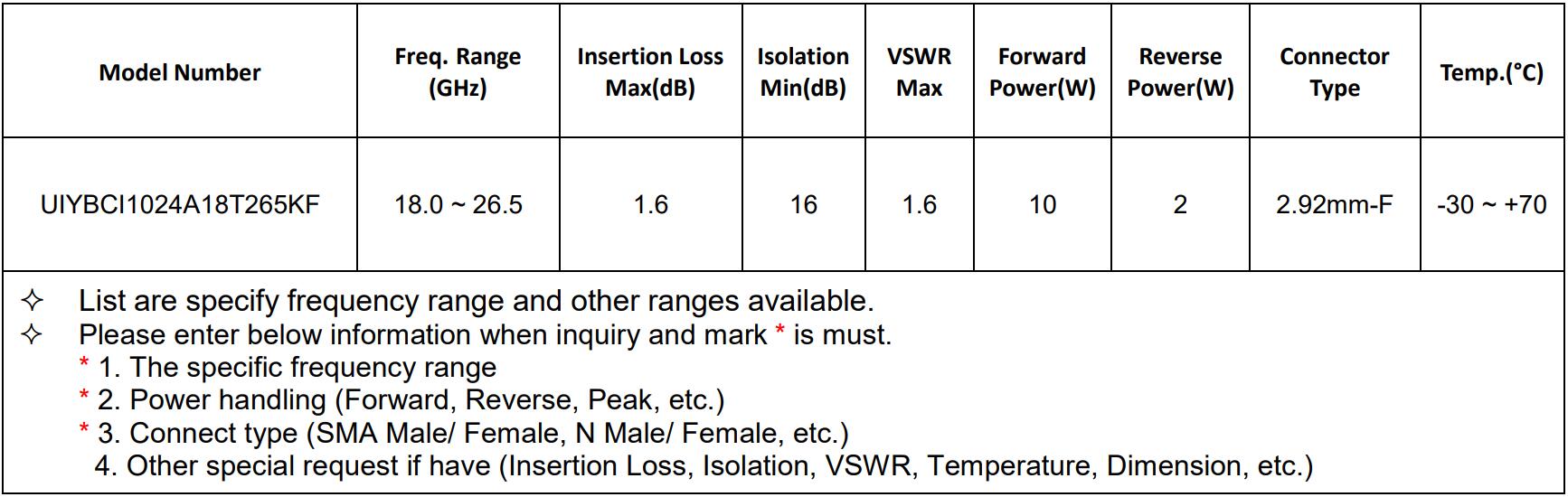

RF Characteristics

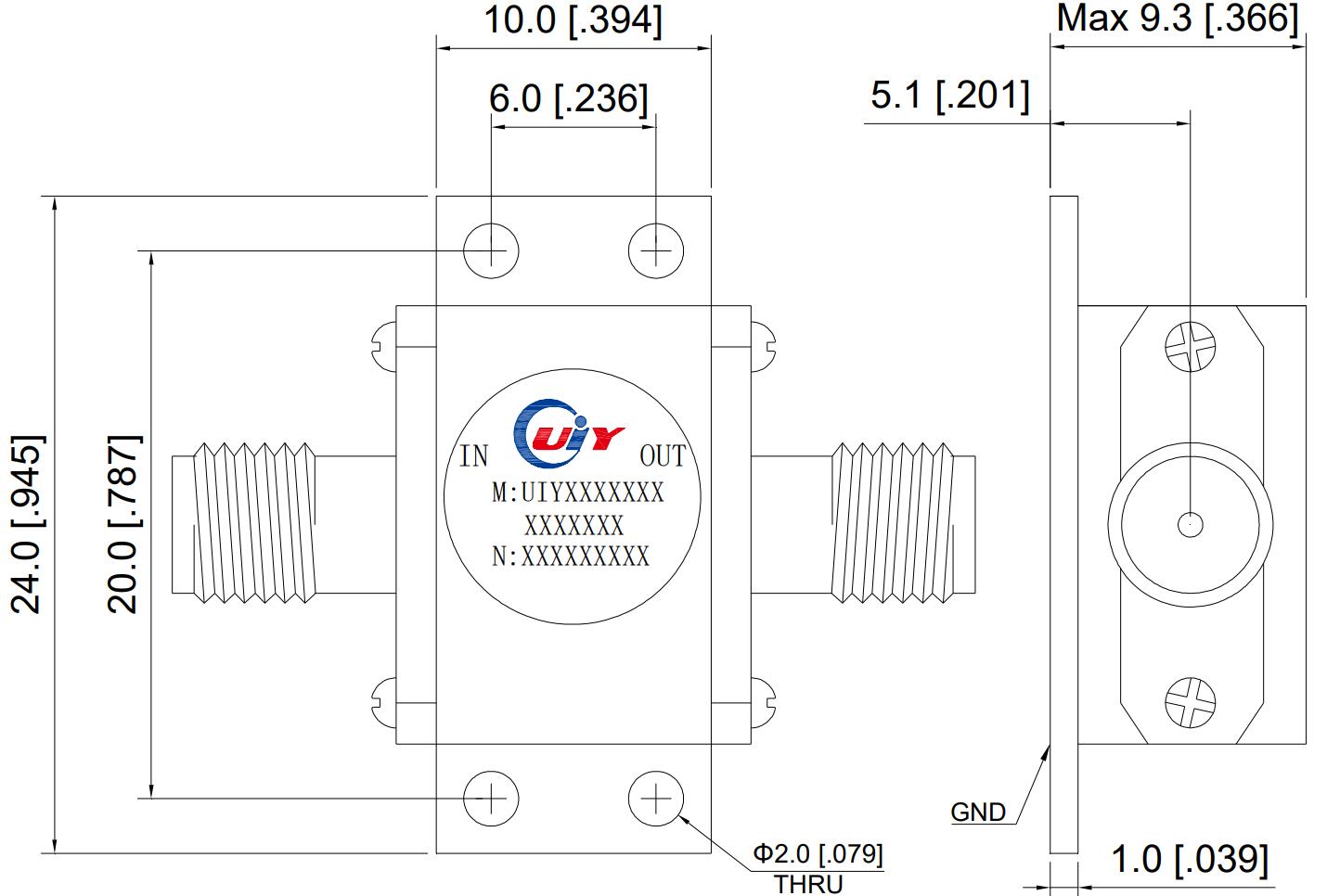

Mechanical Drawing

03

Broadband Circulator

Model: UIYBCC2618B4P

Freq.Range: 12-18GHz

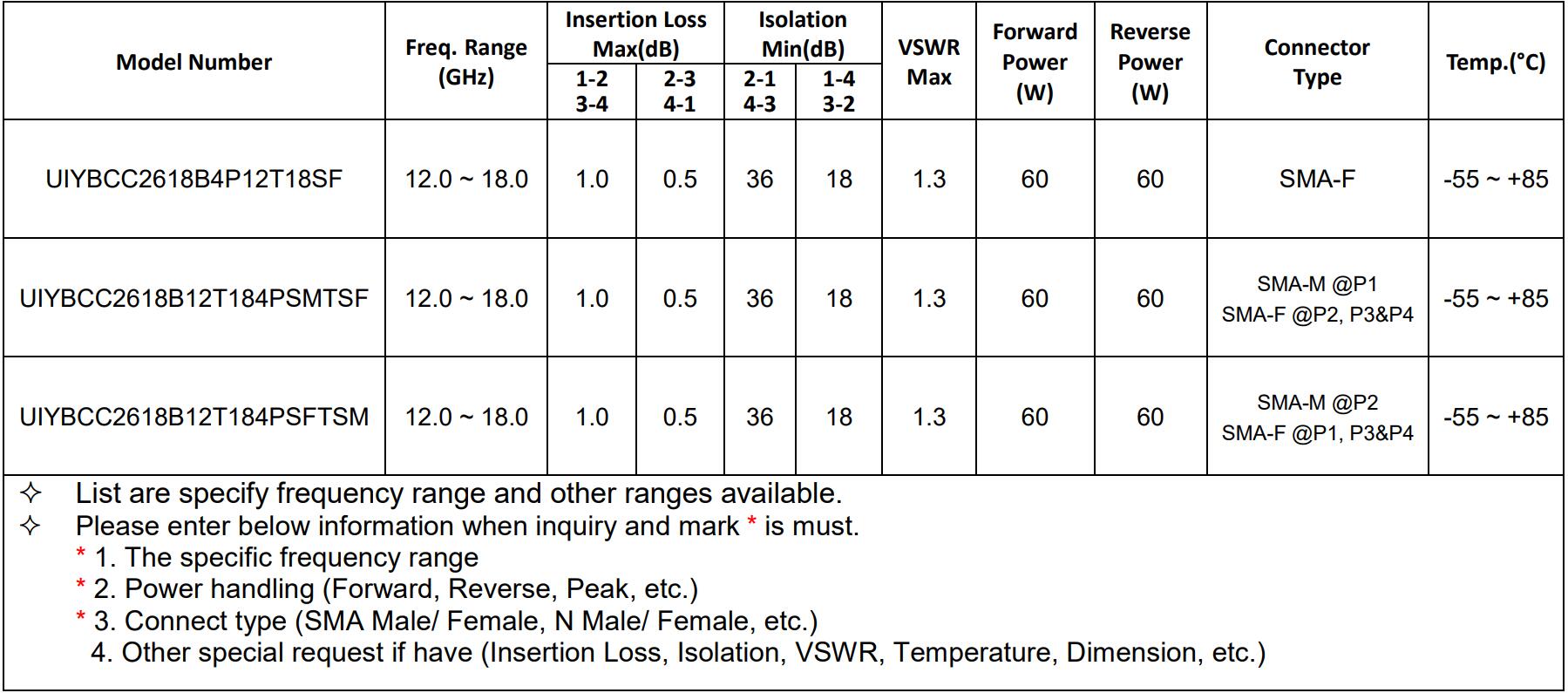

RF Characteristics

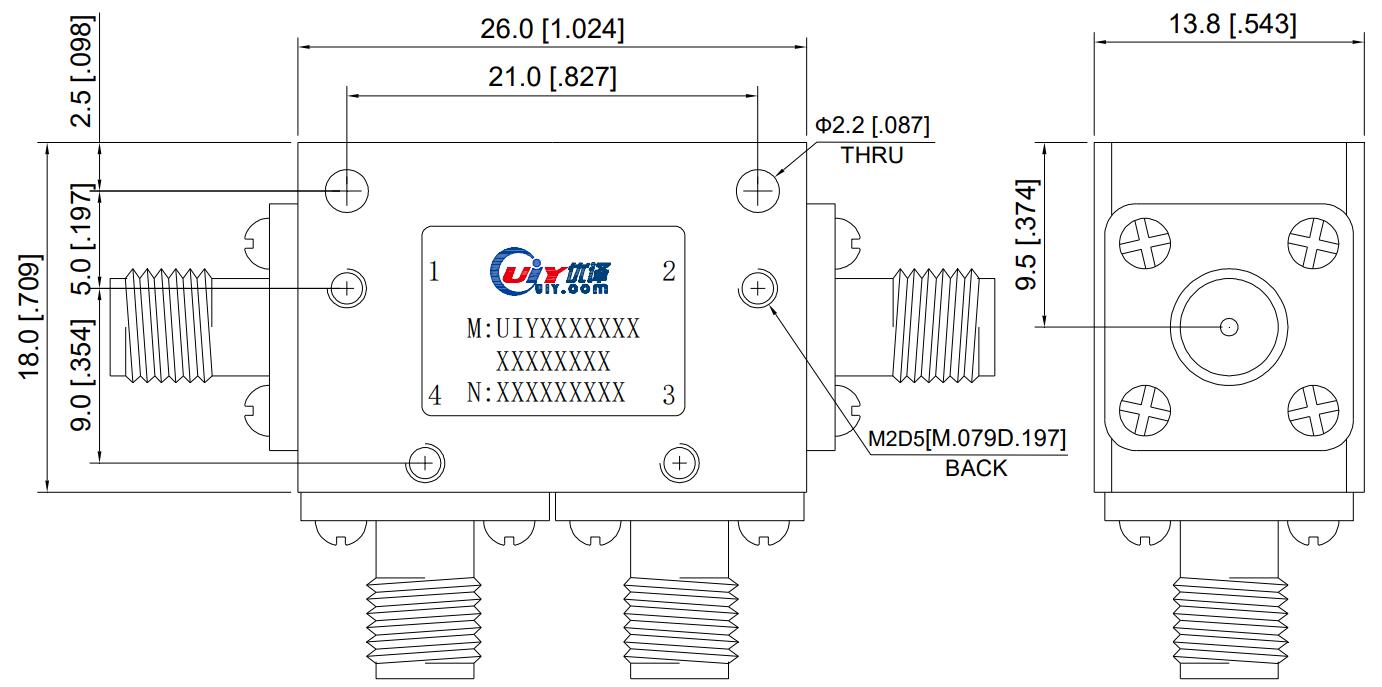

Mechanical Drawing

04

Coaxial Circulator

Model: UIYCC1523A

Freq.Range: 26-40GHz

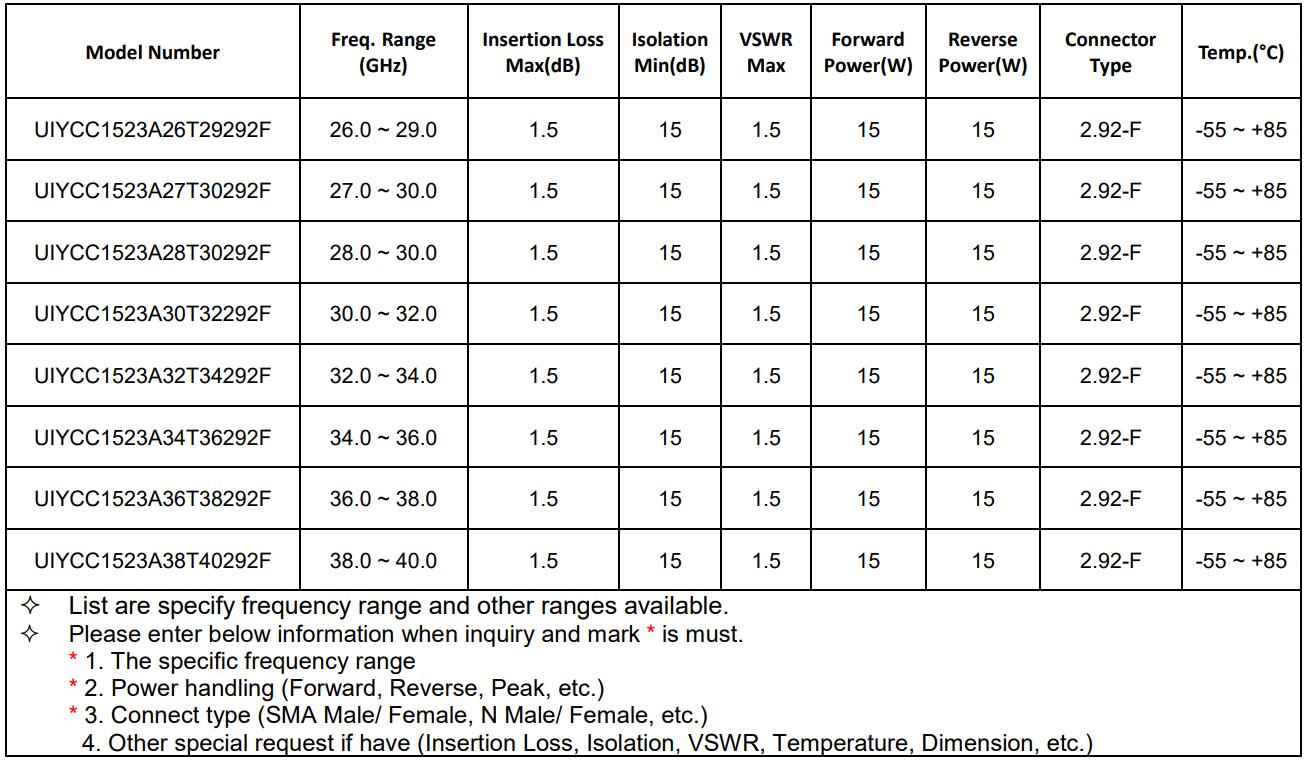

RF Characteristics

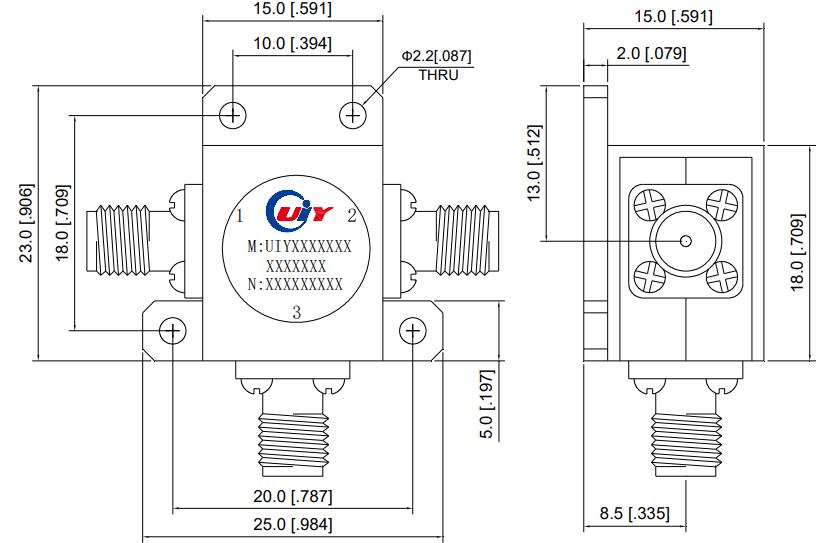

Mechanical Drawing
