【Recommend】Coaxial isolator 0.7~5.0GHz/6.0~27.5GHz- the most popular frequency band, Multi-band frequency in custom

01

UIYCI2538A



Freq.Range: 0.7~5.0GHz Forward Power: 200W
IL.: 0.3dB Reverse Power: 100W
Isolation: 23dB Connector Type: N, SMA
VSWR: 1.15 Temp.: -40~+85°C
Dimension LxWxH: 25.4×38.5×15mm

Product Picture

RF Characteristics

Mechanical Drawing

02

UIYCI1318A



Freq.Range: 6.0~27.5GHz Forward Power: 60W
IL.: 0.3dB Reverse Power: 10W
Isolation: 23dB Connector Type: SMA,2.92mm
VSWR: 1.2 Temp.: -55~+85°C
Dimension LxWxH: 13×18×13.8mm

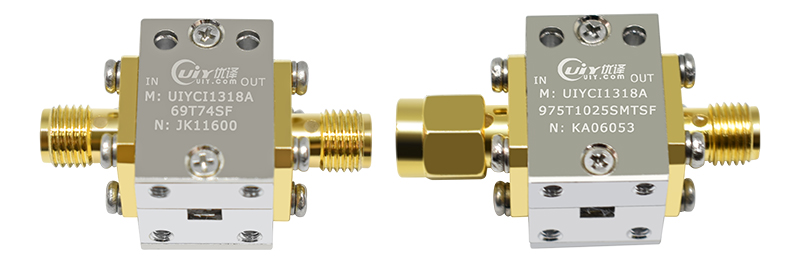

Product Picture

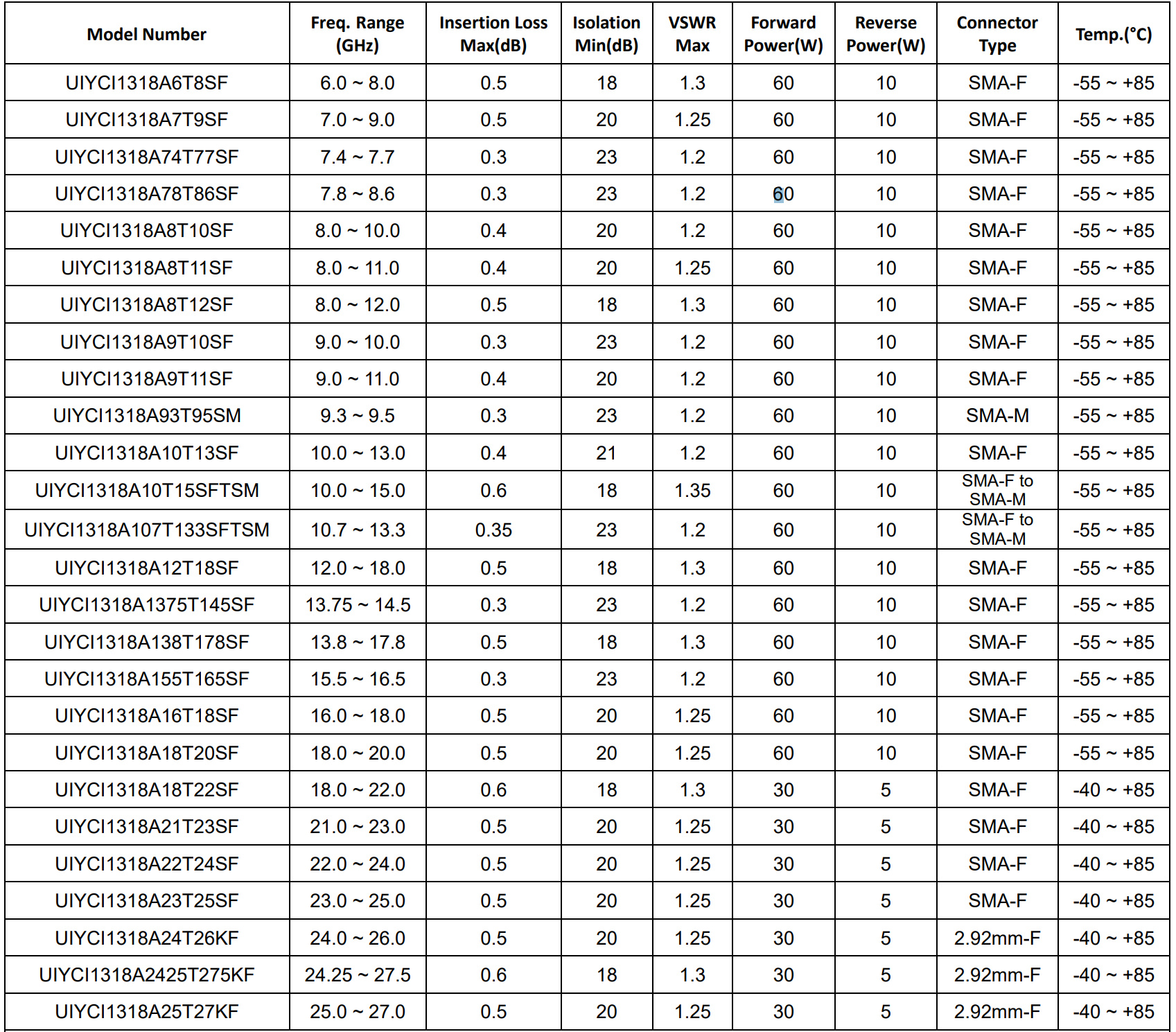

RF Characteristics

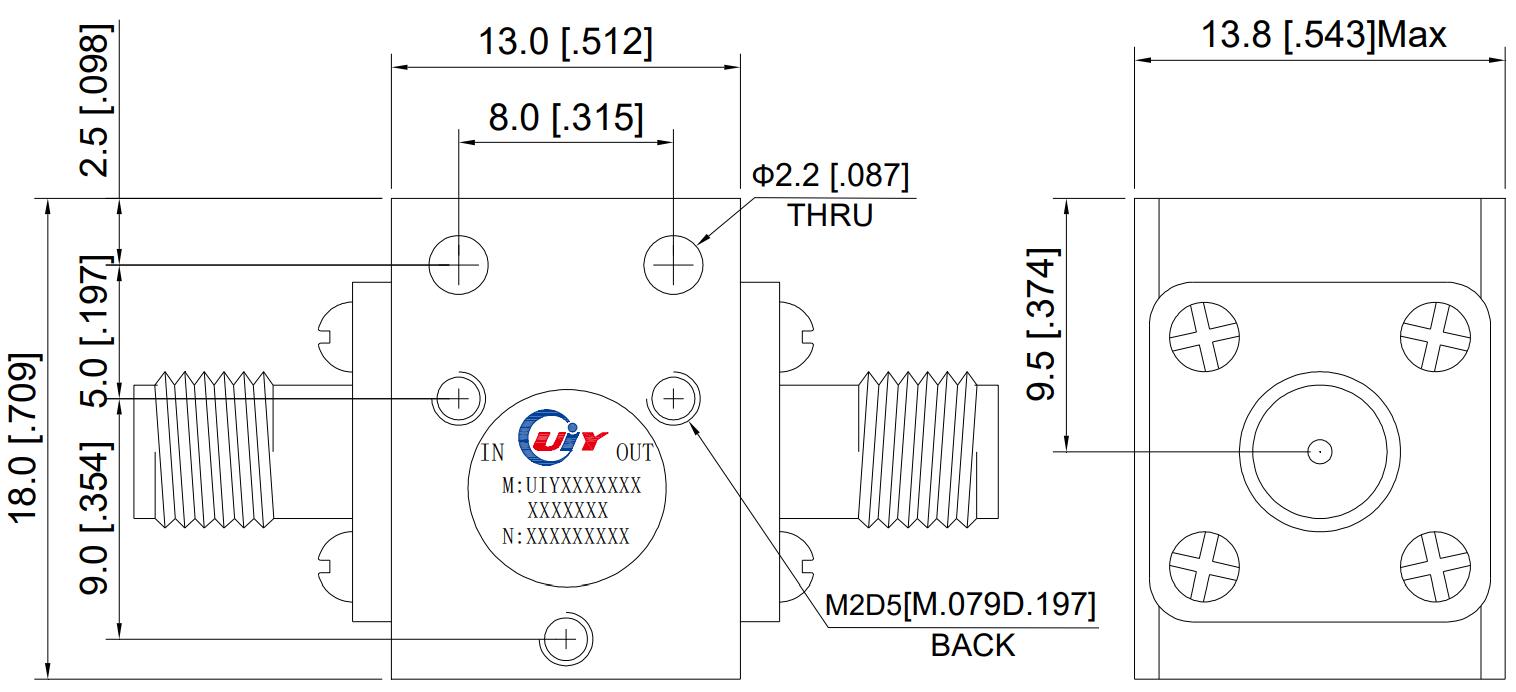

Mechanical Drawing
