200~3600MHz Dual Junction Circulator/Isolator, high isolation, low insertion loss, multiple frequency bands can be customized

<01>

Dual Junction Circulator      Model No.: UIYDDC5025A4P

Freq.Range: 200~3600MHz Forward Power: 200W
IL.: 0.5dB Reverse Power: 200W
Isolation: 50dB Connector Type: TAB
VSWR: 1.15 Temp.: -40~+85°C
Dimension LxWxH: 50.8×25.4×8.6mm

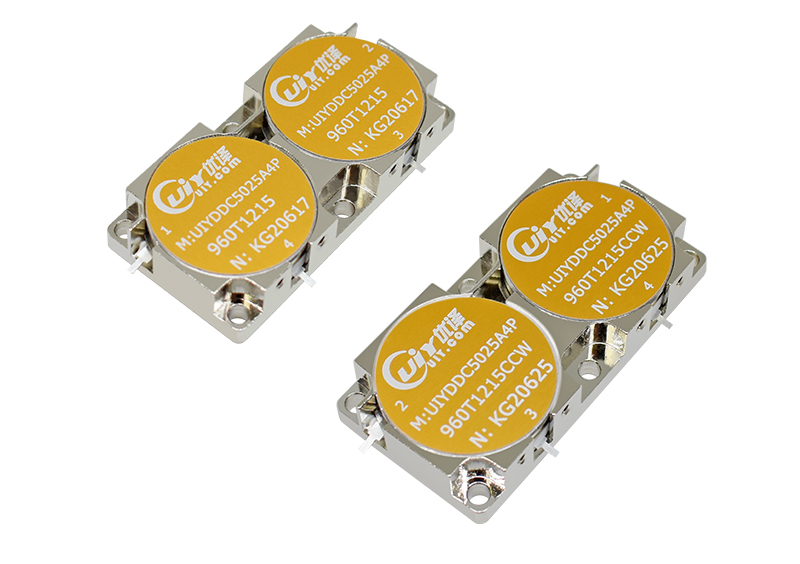

Product Picture

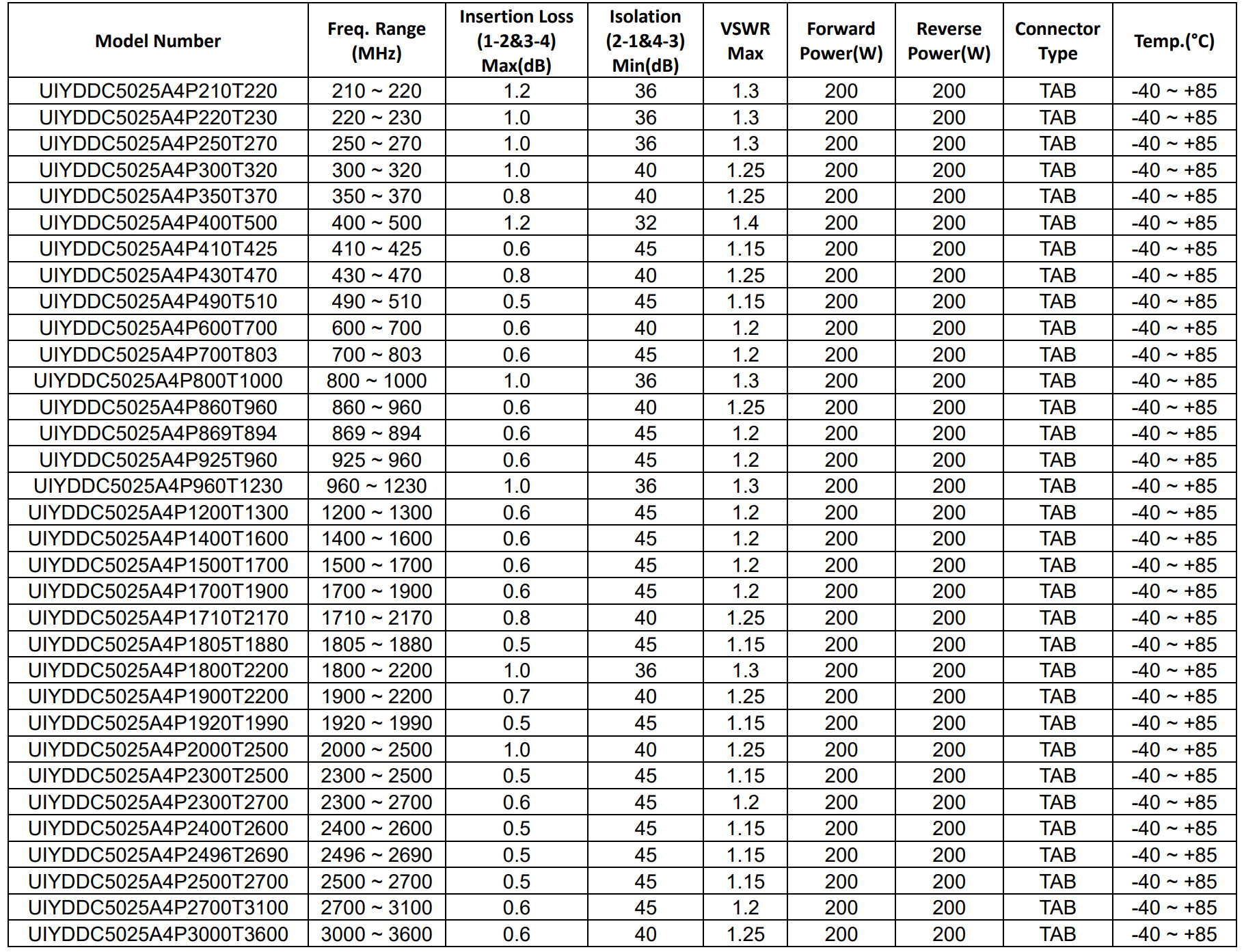

RF Characteristics

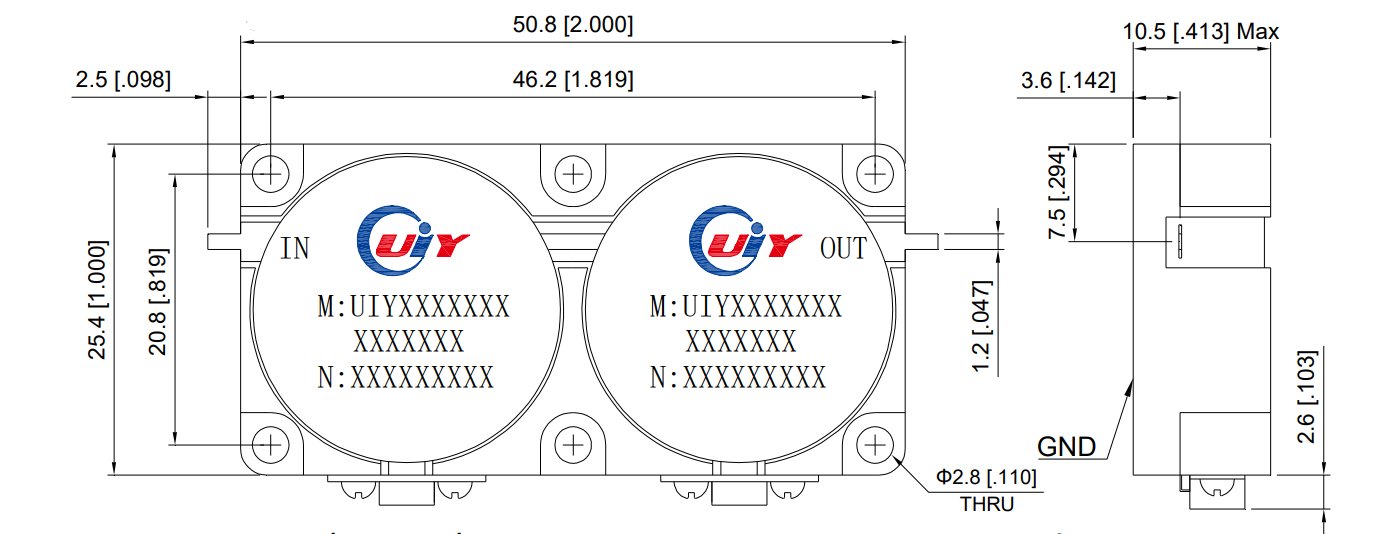

Mechanical Drawing

<02>

Dual Junction Isolator     Model No.: UIYDDI5025A

Freq.Range: 200~3600MHz Forward Power: 200W
IL.: 0.5dB Reverse Power: 30W
Isolation: 50dB Connector Type: TAB
VSWR: 1.15 Temp.: -40~+85°C
Dimension LxWxH: 50.8×25.4×8.6mm

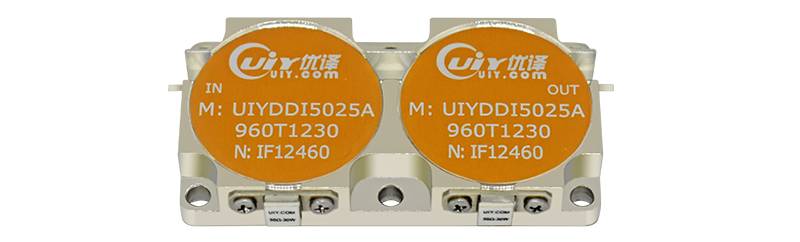

Product Picture

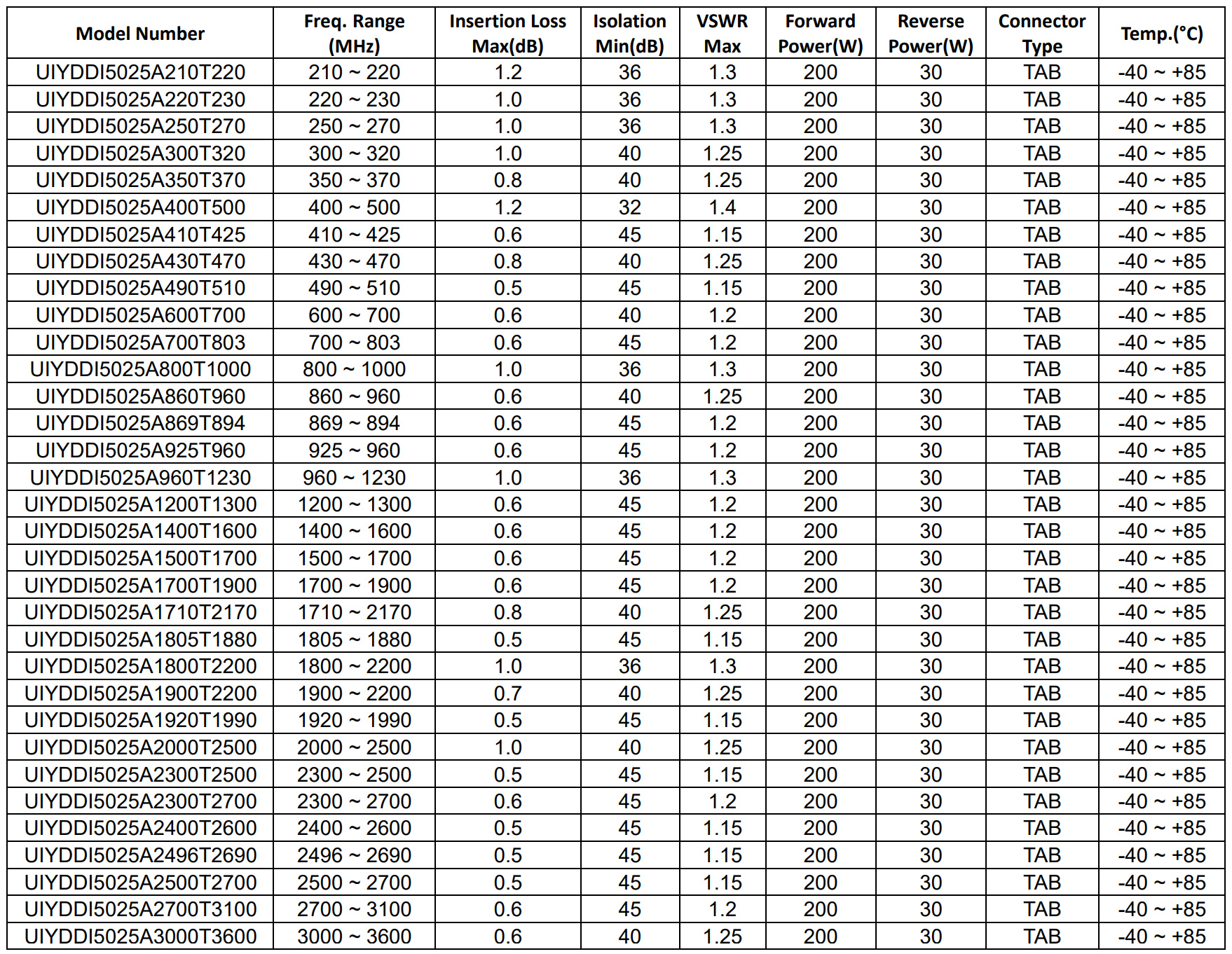

RF Characteristics

Mechanical Drawing
