Coaxial Isolator UIYCI3546A, Frequency range 300 to 930MHz

Design Features
◆ Can be dual junction even three for high isolation.
◆ Custom design available upon request.
◆ Military, space and commercial applications.
◆ Guaranteed for one year standard.

Connector Type:  Power:
F = Female
M = Male
FWD = Forward
REV = Reverse
Part Number Frequency
Range
(GHz)
Isolation
Min(dB)
Insertion
Loss
Max(dB)
VSWR
Max
FWD
Power
(W)
REV
Power
(W)
Connector
Type
Dimension
L×W×H
(mm)
UIYCI3546A300T320NF 300-320 0.8 18 1.3 300 100 N-F

















35×46×15

UIYCI3546A309T339NF 309-339 0.7 18 1.3 300 100 N-F
UIYCI3546A350T370SF 350-370 0.3 23 1.2 100 100 SMA-F
UIYCI3546A380T460SF 380-460 0.5 18 1.3 100 100 SMA-F
UIYCI3546A390T410SF 390-410 0.3 23 1.2 100 100 SMA-F
UIYCI3546A400T470SF 400-470 0.5 20 1.25 100 100 SMA-F
UIYCI3546A440T470SF 440-470 0.3 23 1.2 100 100 N-F
UIYCI3546A440T470NF 440-470 0.3 23 1.2 300 200 N-F
UIYCI3546A470T570SF 470-570 0.45 19 1.25 100 100 SMA-F
UIYCI3546A570T670SF 70-670 0.4 20 1.25 100 100 SMA-F
UIYCI3546A670T770SF 670-770 0.4 20 1.25 100 100 SMA-F
UIYCI3546A770T860SF 770-860 0.35 23 1.2 100 100 SMA-F
UIYCI3546A600T800SF 600-800 0.5 18 1.3 100 100 SMA-F
UIYCI3546A806T825SF 806-825 0.2 23 1.15 150 100 SMA-F
UIYCI3546A860T872NF 860-872 0.3 30 1.15 100 100 N-F
UIYCI3546A900T930NF 900-930 0.3 30 1.15 100 100 N-F

□List are specify frequency range and other ranges available.
□Please enter below information when inquiry and mark * is must.
* 1. The specific frequency range
* 2. Power handling (Forward, Reverse, Peak, etc.)
* 3. Connect type (SMA Male/ Female, N Male/ Female, etc.)
* 4. Other special request if have (Insertion Loss, Isolation, VSWR, Temperature, Dimension, etc.)

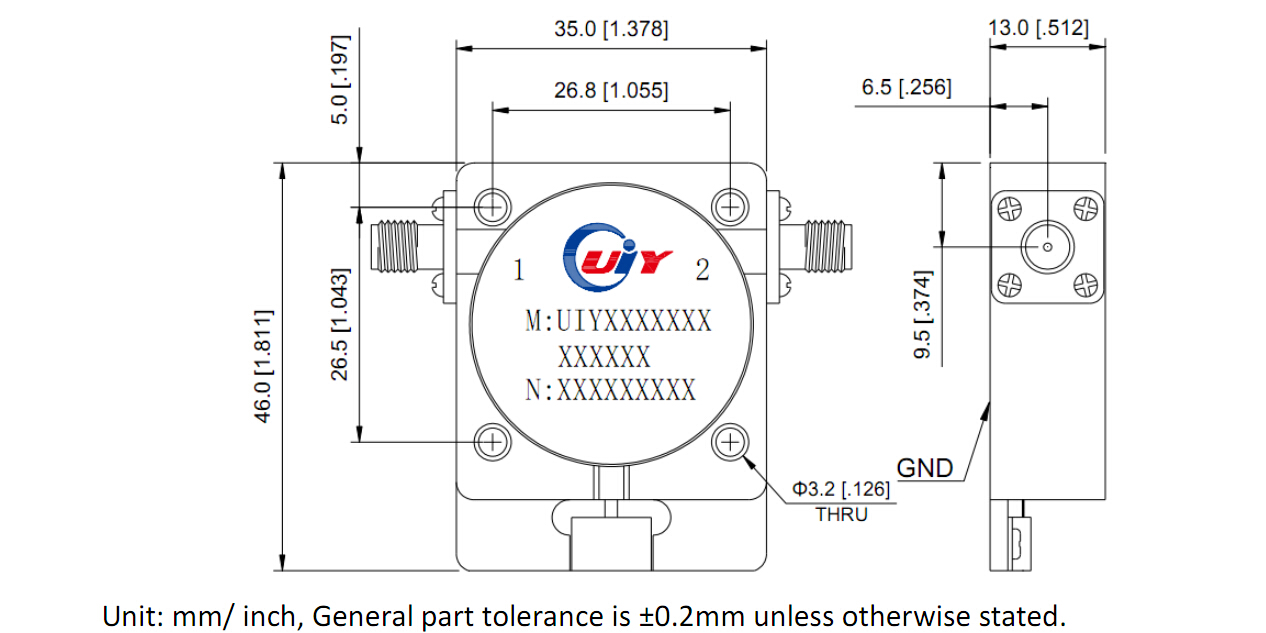

Mechanical Drawing:
