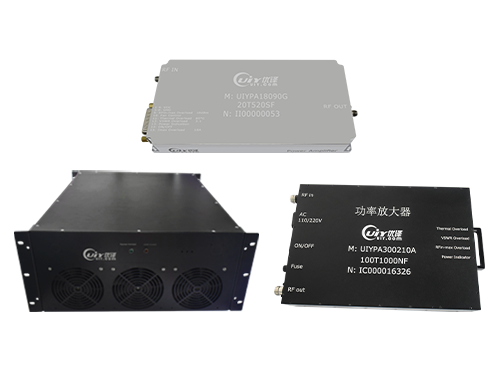

Power Amplifier – Portable(Contains Power Supply & Heat Sink)

Model No. Freq.Range
(MHz)
Gain
CW(dB)
Output Power
(W)
Gain Flatness
(dB)
Input VSWR Voltage
(V)
Current (A) Connector
Type
Dimension
L×W×H
(mm)
UIYPA300210B 20~950 42 50 ±2.0 2.0 110/220 1.0 N 300×210×50
UIYPA300210A 100~1000 45 120 ±2.0 2.0 110/220 1.7 N 300×210×62
UIYPA300210C 500~2500 40 25 ±2.0 2.0 110/220 0.6 N 300×210×50
UIYPA300210D 500~2500 42 50 ±2.0 2.0 110/220 1.2 N 300×210×50
UIYPA300210E 1100~2900 40 25 ±2.0 2.0 1110/220 0.6 N 300×210×50
UIYPA300210F 1100~2900 42 50 ±2.0 2.0 110/220 1.2 N 300×210×50
UIYPA300210G 2000~6000 40 25 ±2.0 2.0 110/220 0.8 N 300×210×50
UIYPA300210H 2000~6000 42 50 ±2.0 2.0 110/220 1.5 N 300×210×50

Power Amplifier – Chassis(Contains Power Supply & Heat Sink)

Model No. Freq.Range
(MHz)
Gain
CW(dB)
Output Power
(W)
Gain Flatness
(dB)
Input VSWR Voltage
(V)
Current (A) Connector
Type
Dimension
L×W×H
(mm)
UIYPA450504A 0.1~30 60 1000 ±1.5 1.5 220 15 SMA 450×504×138
UIYPA482529A 1~3000 40 10 ±2.0 2.0 110/220 SMA 482×529×44
UIYPA482529B 1~3000 44 25 ±2.0 2.0 110/220 SMA 482×529×44
UIYPA482450A 1~3000 47 50 ±2.0 2.0 110/220 SMA 482×450×82
UIYPA482529C 1~6000 40 10 ±2.0 2.0 110/220 SMA 482×529×44
UIYPA482450B 1~6000 44 25 ±2.0 2.0 110/220 SMA 482×450×82
UIYPA482450C 1~6000 47 50 ±2.0 2.0 110/220 SMA to N 482×450×82

Power Amplifier – Module

Model No. Freq.Range
(MHz)
Gain
CW(dB)
Output Power
(W)
Gain Flatness
(dB)
Input VSWR Voltage
(V)
Current (A) Connector
Type
Dimension
L×W×H
(mm)
UIYPA210120B 0.1~10 55 300 ±1.0 1.5 +48 12 SMA to N 210×120×31
UIYPA200100A 0.1~40 50 120 ±1.5 1.5 +28 10 SMA to N 200×100×35
UIYPA15080A 1~30 47 60 ±1.0 1.5 +24 4.5 SMA 150×80×25
UIYPA210120A 1~30 53 220 ±1.0 1.5 +28 14 SMA to N 210×120×31
UIYPA18090F 1~150 45 100 ±1.5 2.0 +32 9 SMA 180×90×22
UIYPA10050A 1~1000 26 1 ±2.0 2.0 +12 0.1 SMA 100×50×20
UIYPA200100B 20~512 53 120 ±1.5 1.5 +28 9 SMA to N 200×100×25
UIYPA18090G 20~520 45 100 ±1.5 2.0 +32 8 SMA 180×90×22
UIYPA18090A 20~950 42 50 ±2.0 2.0 +28 6 SMA 180×90×22
UIYPA15080C 20~1000 40 5 ±2.0 1.5 +12 3 SMA 150×80×22
UIYPA16885A 20~1000 50 60 ±2.0 1.5 +28 5 SMA 168×85×21
UIYPA14075A 25~512 50 60 ±1.5 1.5 +28 6 SMA 140×75×21.5
UIYPA150120A 30~512 45 15 ±1.5 1.5 +14.4 2.5 MCX 150×120×20
UIYPA15080B 30~1000 45 12 ±1.5 1.5 +13.8 3 SMA 150×80×22
UIYPA18090B 100~950 42 50 ±2.0 2.0 +28 6 SMA 180×90×22
UIYPA18090I 100~1000 45 100 ±2.0 2.0 +32 10 SMA 180×90×22
UIYPA300210A 100~1000 45 120 ±2.0 2.0 +22 N 300×210×62
UIYPA200100D 117~137 50 100 ±1.0 1.5 +28 10 SMA 200×100×25
UIYPA10075A 400~480 38 50 ±1.0 1.5 +12 4 SMA 100×75×20
UIYPA18090H 500~950 45 100 ±1.5 2.0 +32 9 SMA 180×90×22
UIYPA18090J 500~1500 45 100 ±2.0 2.0 +32 10 SMA 180×90×22
UIYPA14070A 500~2500 40 25 ±2.0 2.0 +36 2.5 SMA 140×70×19
UIYPA23688A 700~860 50 100 ±1.0 2.0 +28 7.5 SMA to N 236×88×27
UIYPA23688B 800~1000 50 120 ±1.0 1.5 +28 7.5 SMA to N 236×88×27
UIYPA23688C 860~960 50 100 ±1.0 2.0 +28 7.5 SMA to N 236×88×27
UIYPA200100C 2200~2700 50 60 ±1.5 1.5 +28 7.5 SMA to N 200×100×25
UIYPA16070A 5700~5900 47 50 ±1.0 2.0 +28 7 SMA 160×70×22
UIYPA18090K 14400~15400 47 30 ±1.5 2.0 +28 7 SMA 180×90×22
