Here, we would like to introduce two of UIY full-bandwidth, high-frequency Dual Junction Isolator/Dual Junction Circulator:
Type one: Dual Junction Isolator
| Model: UIYBCI6434A | Forward Power: 100W |
| Freq.Range: 2.0~4.0GHz | Reverse Power: 30W |
| IL.: 1.2dB | Connector Type: N,SMA |
| Isolation: 36dB | Temp.: 10~+70°C |
| VSWR: 1.3 | Dimension LxWxH: 64×34×21mm |

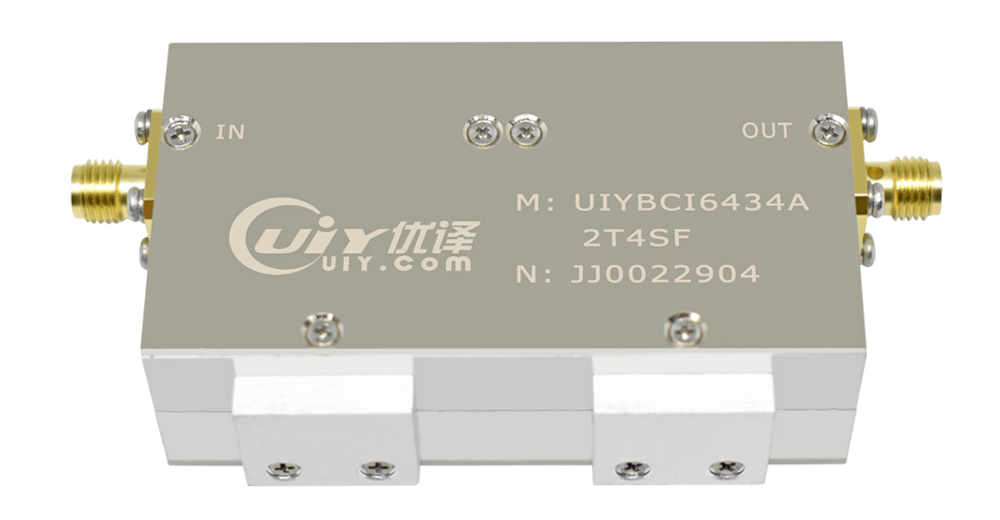

Product Picture

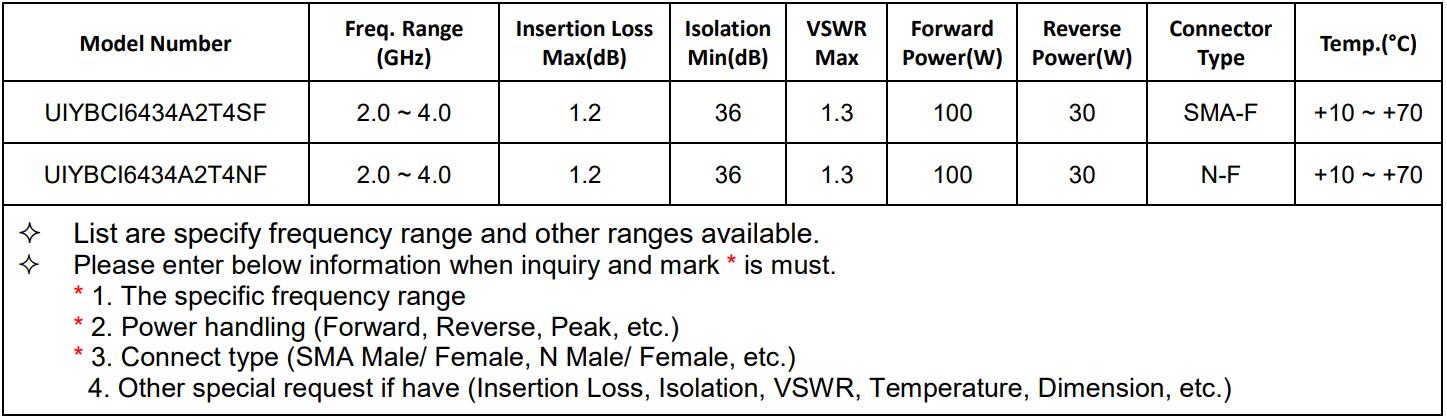

RF Characteristics

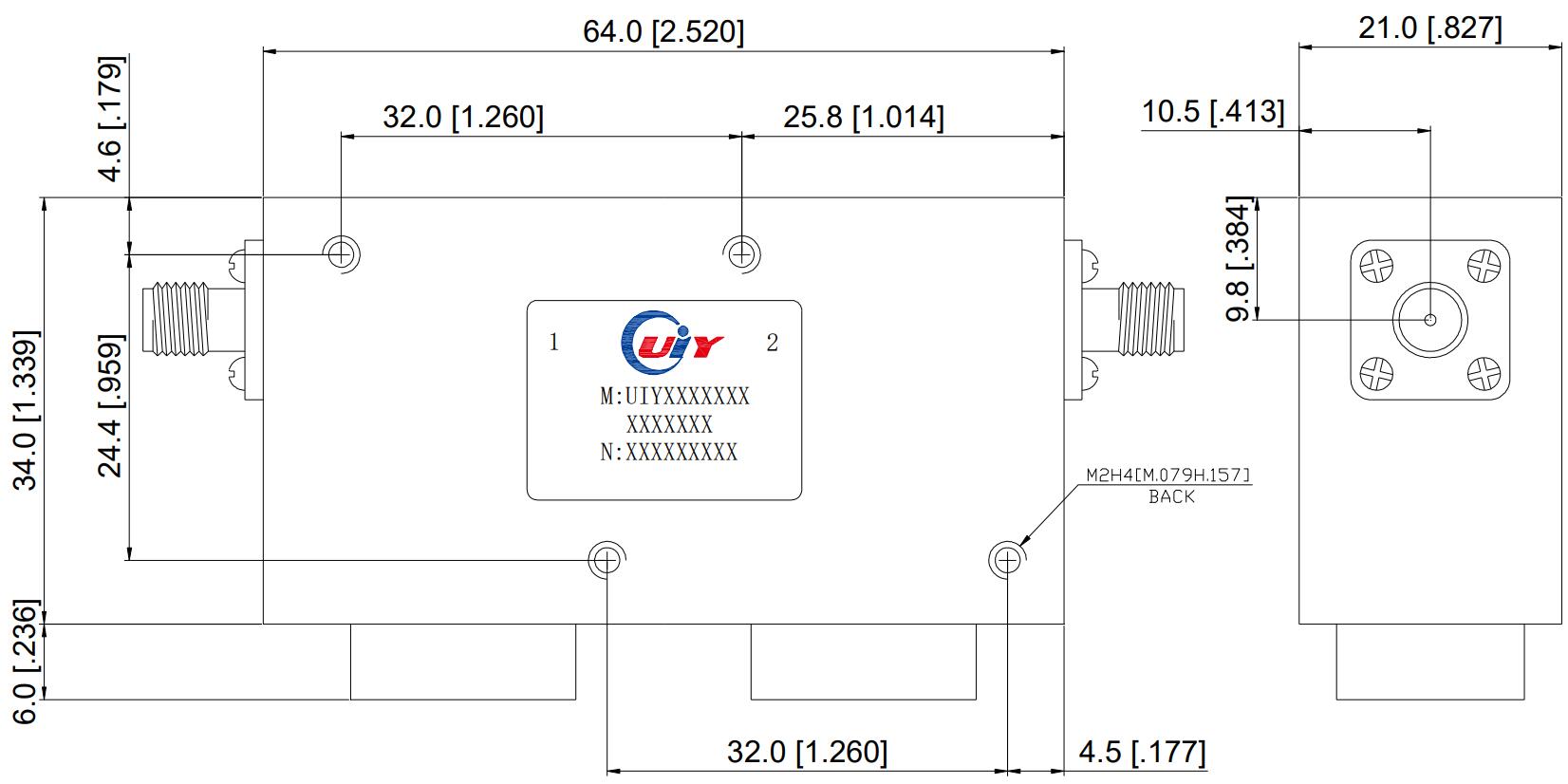

Mechanical Drawing
Type two: Dual Junction Circulator
| Model: UIYBCC4222A4P | Forward Power: 100W |
| Freq.Range: 4.0~8.0GHz | Reverse Power: 100W |
| IL.: 1.0dB | Connector Type: N,SMA |
| Isolation: 36dB | Temp.: -55~+85°C |
| VSWR: 1.3 | Dimension LxWxH: 42×22.5×15mm |

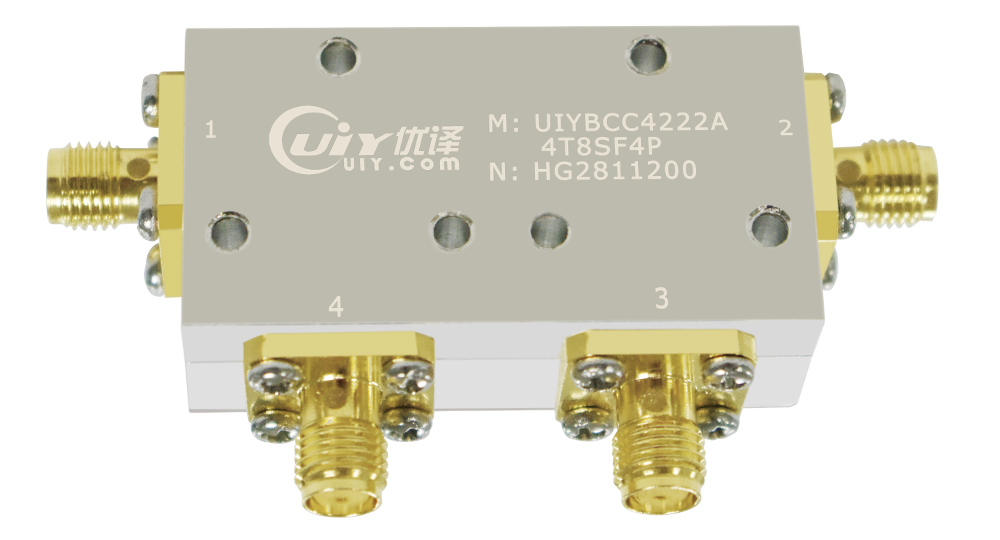

Product Picture

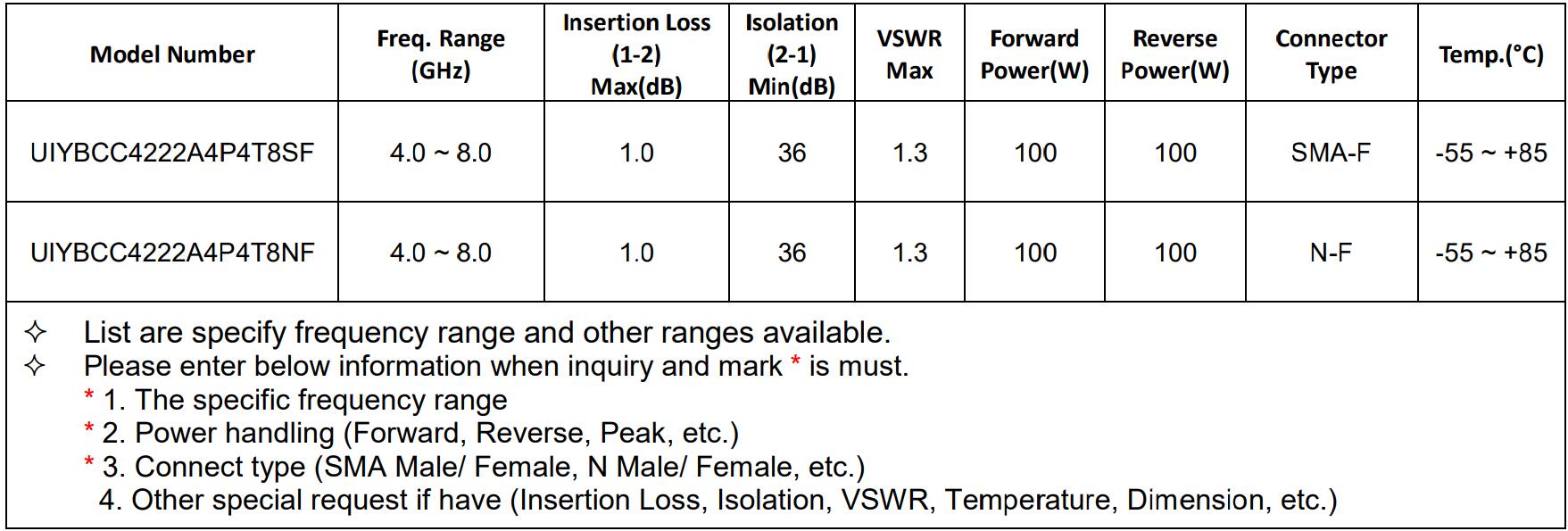

RF Characteristics

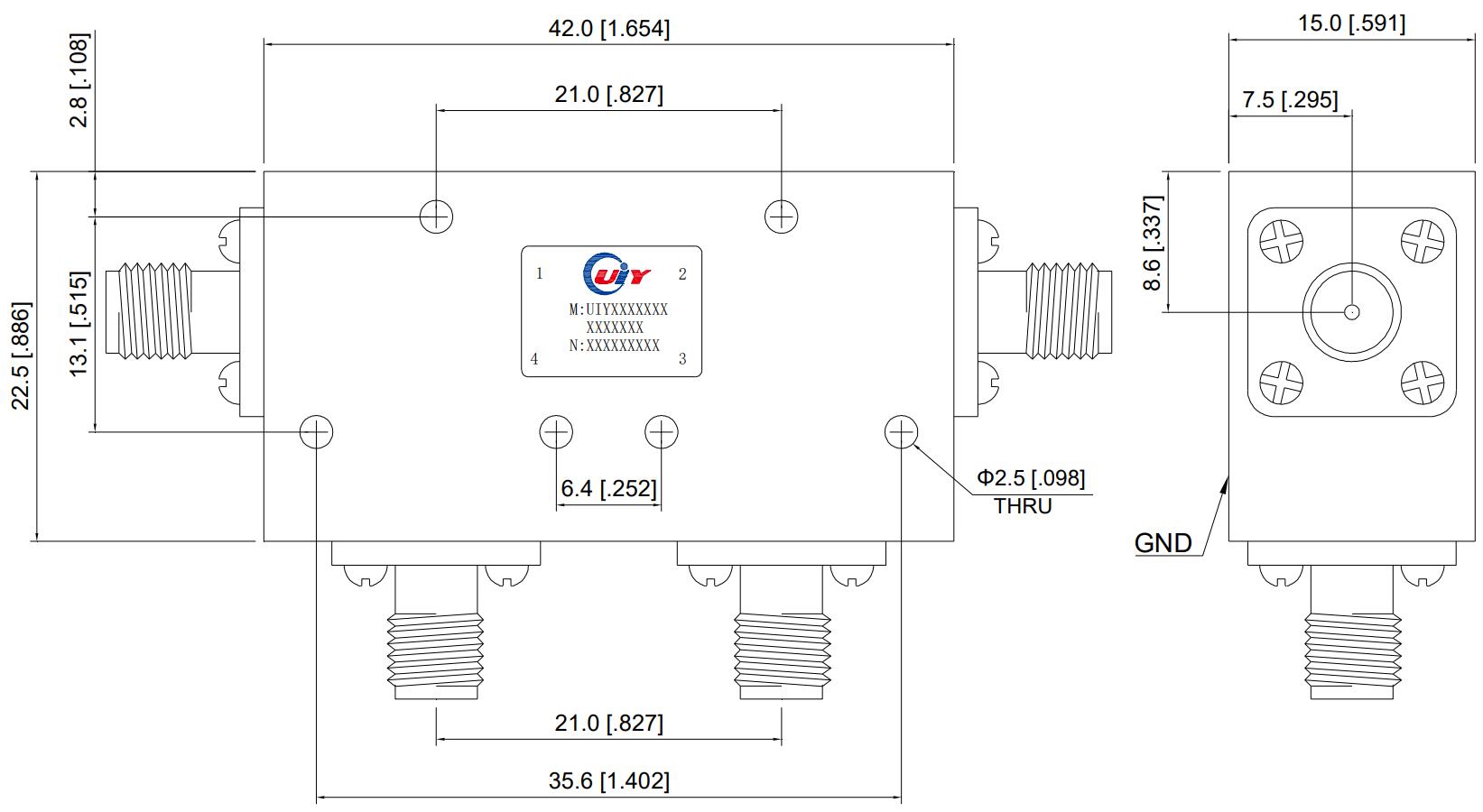

Mechanical Drawing
