[Product Recommend] 2.0~4.0GHz, 3.0~6.0GHz Broadband High Isolation Isolator/Circulator

It is recommended that the broadband dual junction isolator/circulator with frequency band 2.0~4.0GHz, 3.0~6.0GHz——S band, C band, power 100W, which are mostly required by our customers. All come with high isolation and wide frequency band.

Product recommendation

①

Broadband Isolator   Model: UIYBCI6434A
Freq.Range: 2.0~4.0GHz Forward Power: 100W
IL.: 1.2dB Reverse Power: 30W
Isolation: 36dB Connector Type: N,SMA
VSWR: 1.3 Temp.: +10~+70°C
Dimension LxWxH: 64×34×21mm

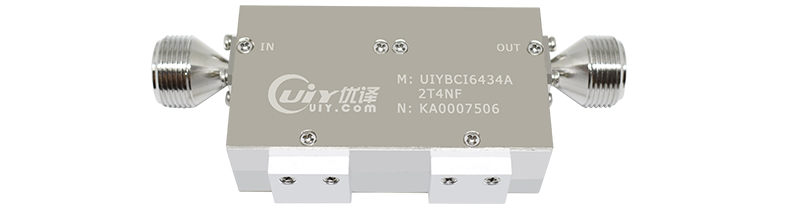

Product Picture

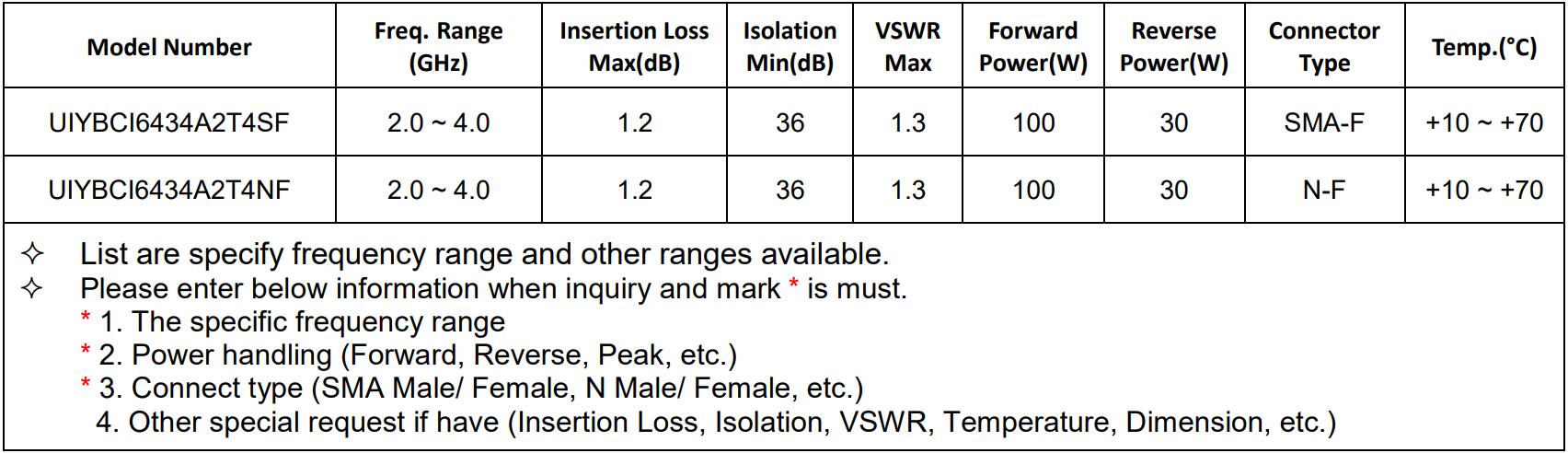

RF Characteristics

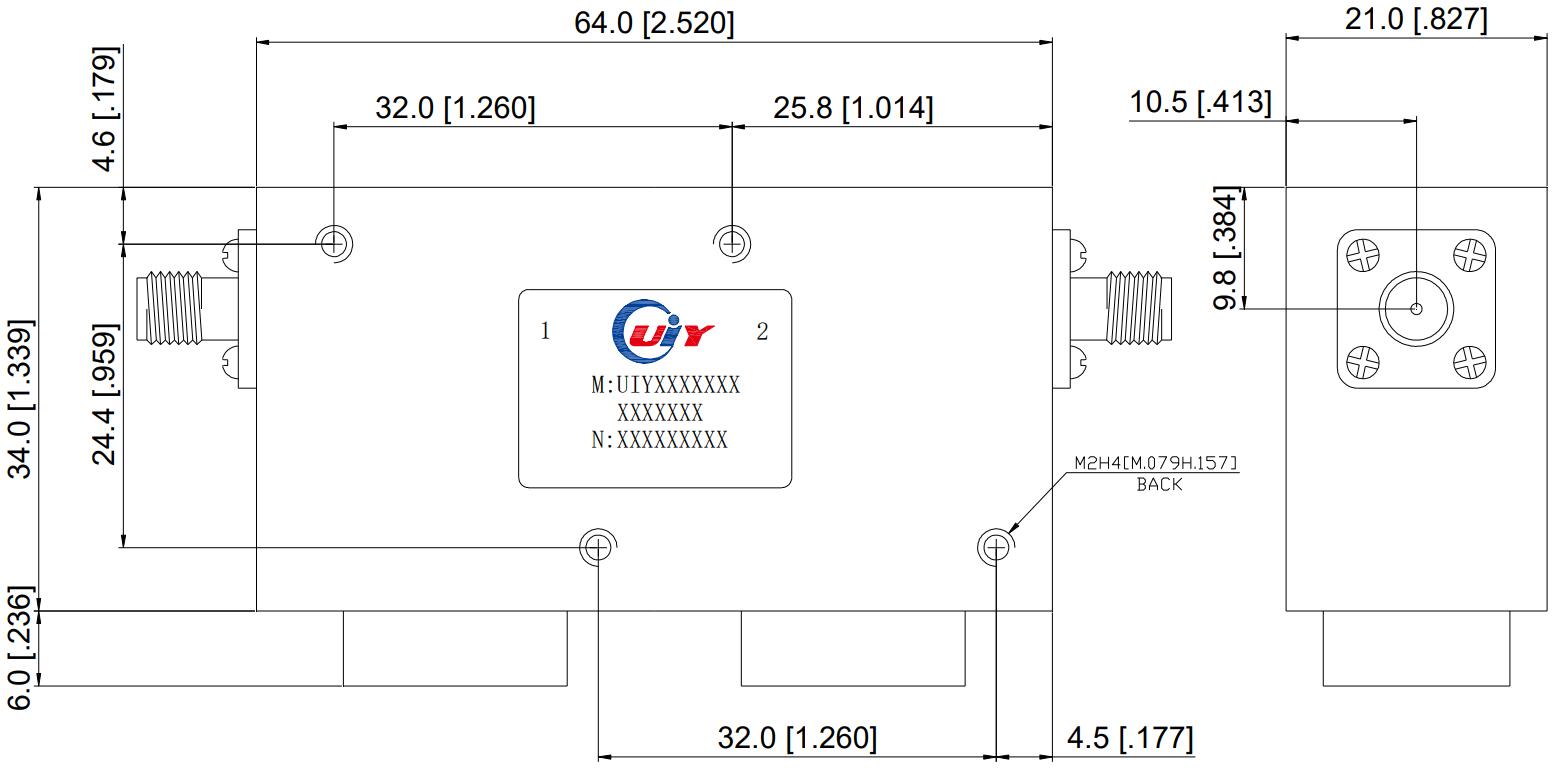

Mechanical Drawing

②

Broadband Isolator    Model: UIYBCI5028A
Freq.Range: 3.0~6.0GHz Forward Power: 100W
IL.: 1.0dB Reverse Power: 20W
Isolation: 36dB Connector Type: N,SMA
VSWR: 1.3 Temp.: -55~+85°C
Dimension LxWxH: 50.8×28×14mm

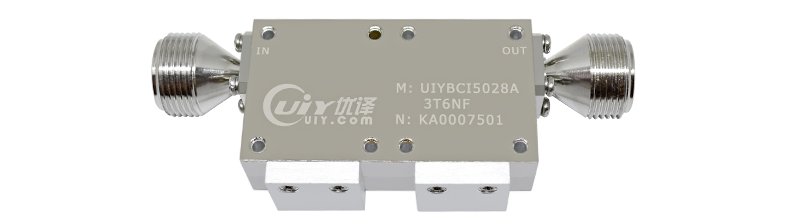

Product Picture

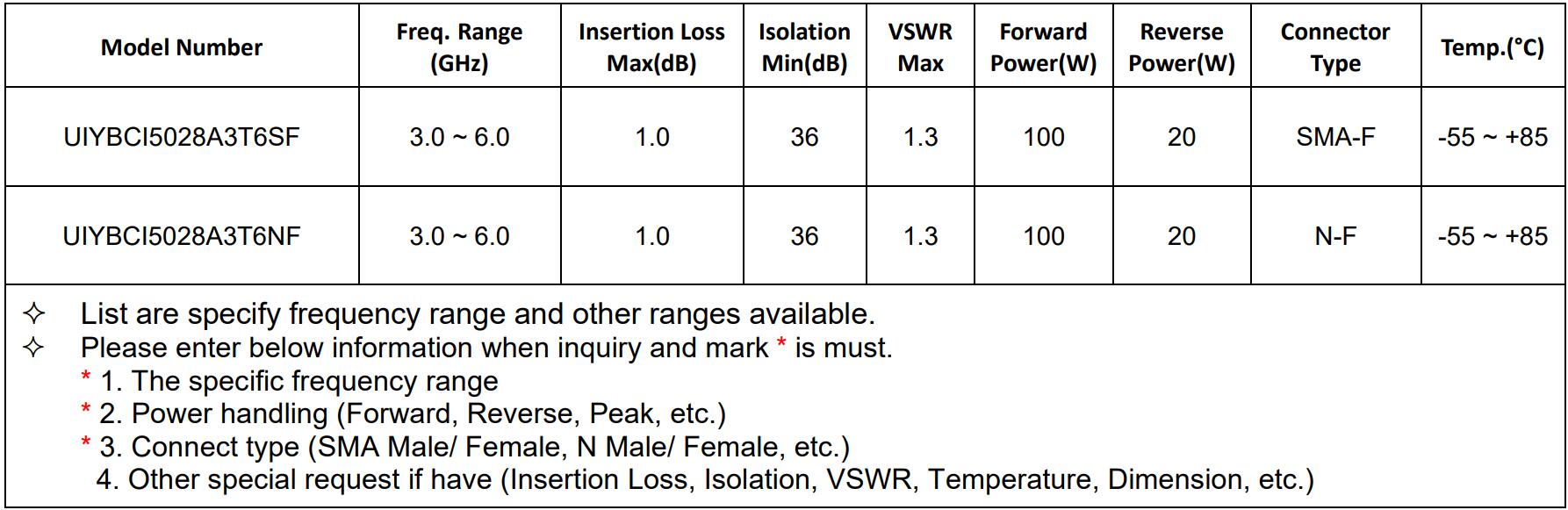

RF Characteristics

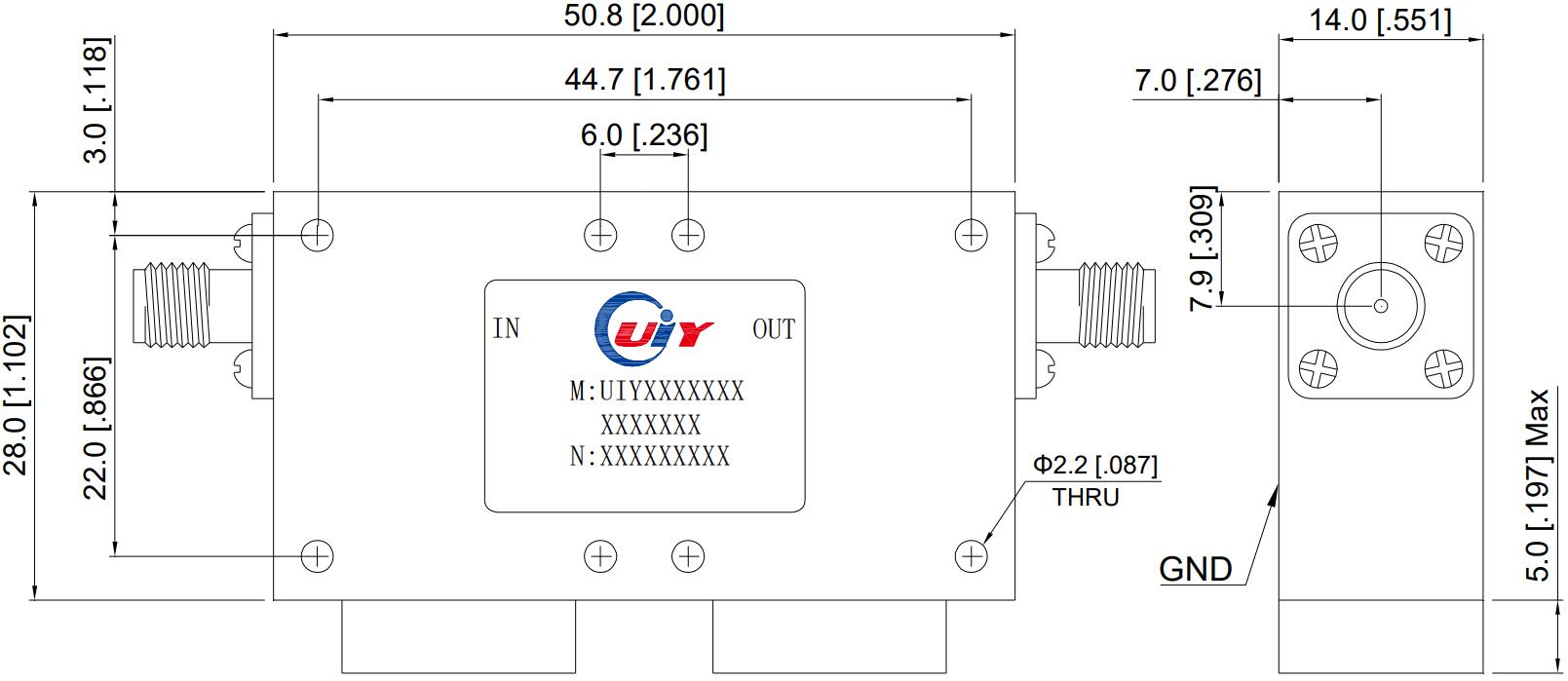

Mechanical Drawing

③

Broadband Circulator  Model: UIYBCC6434A
Freq.Range: 2.0~4.0GHz Forward Power: 100W
IL.: 1.2dB Reverse Power: 100W
Isolation: 34dB Connector Type: N,SMA
VSWR: 1.35 Temp.: +10~+70°C
Dimension LxWxH: 64×34×21mm

Product Picture

RF Characteristics

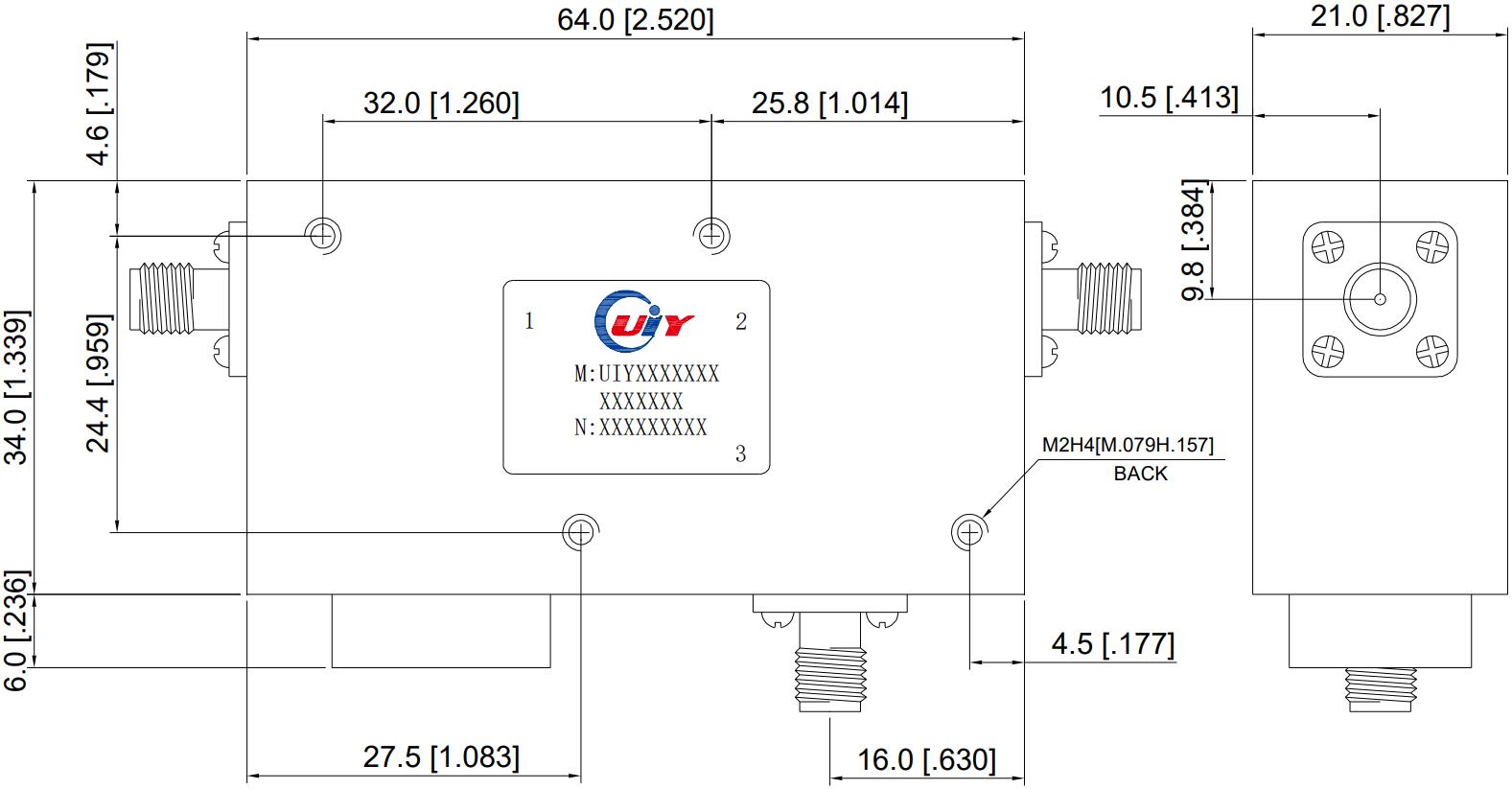

Mechanical Drawing

④

Broadband Circulator    Model: UIYBCC5028A
Freq.Range: 3.0~6.0GHz Forward Power: 100W
IL.: 1.0dB Reverse Power: 100W
Isolation: 36dB Connector Type: N,SMA
VSWR: 1.3 Temp.: -55~+85°C
Dimension LxWxH: 50.8×28×14mm

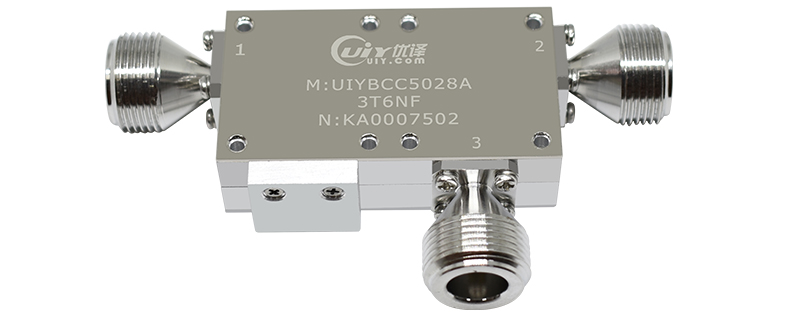

Product Picture

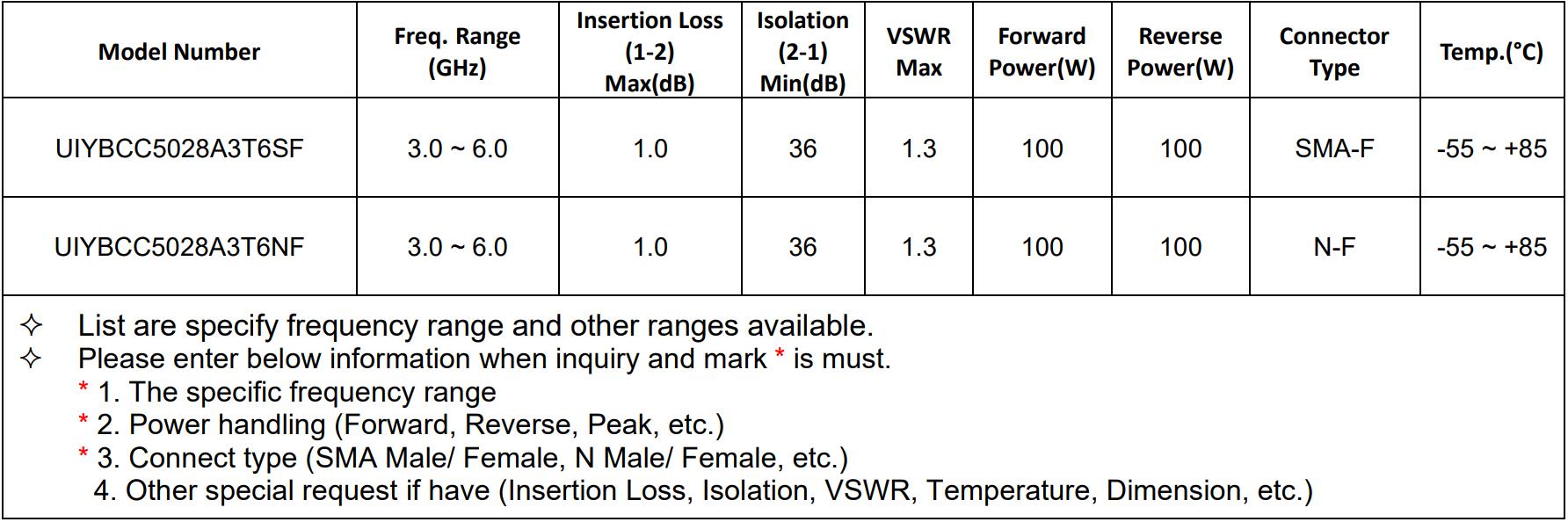

RF Characteristics

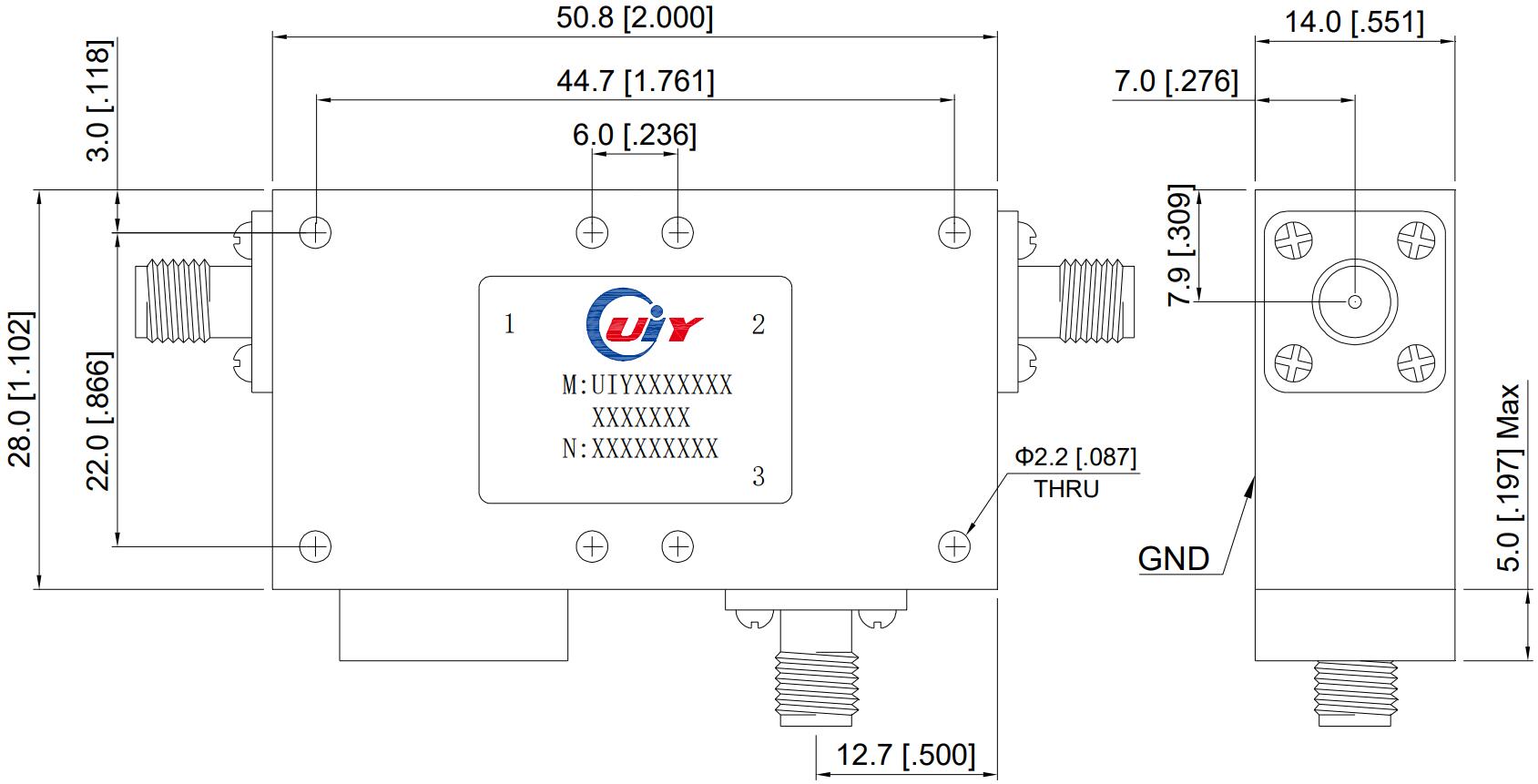

Mechanical Drawing

UIY offers a full line of Broadband Isolator/ Circulator. If you do not see exactly what you require on this web site, please contact sales@uiy.com. We offer designed and built to your specification services as well.
